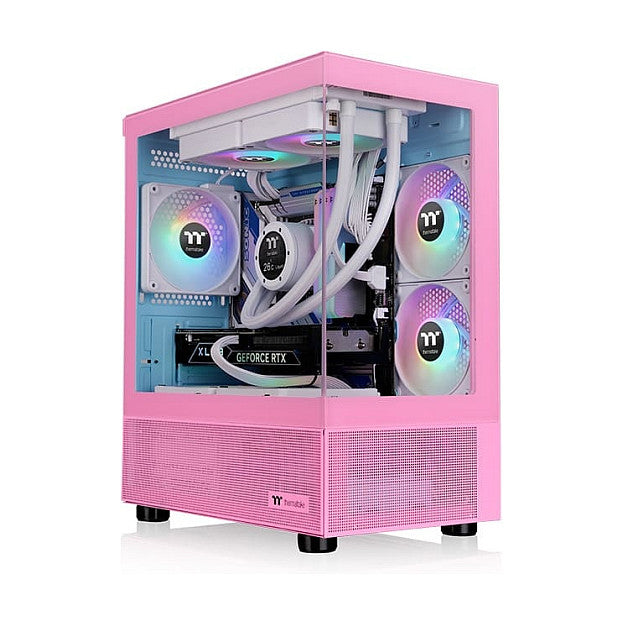

View 170 TG ARGB Bubble Pink Micro Chassis
Built for amazing views, the View 170 TG ARGB Bubble Pink Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Bubble Pink Micro Chassis.

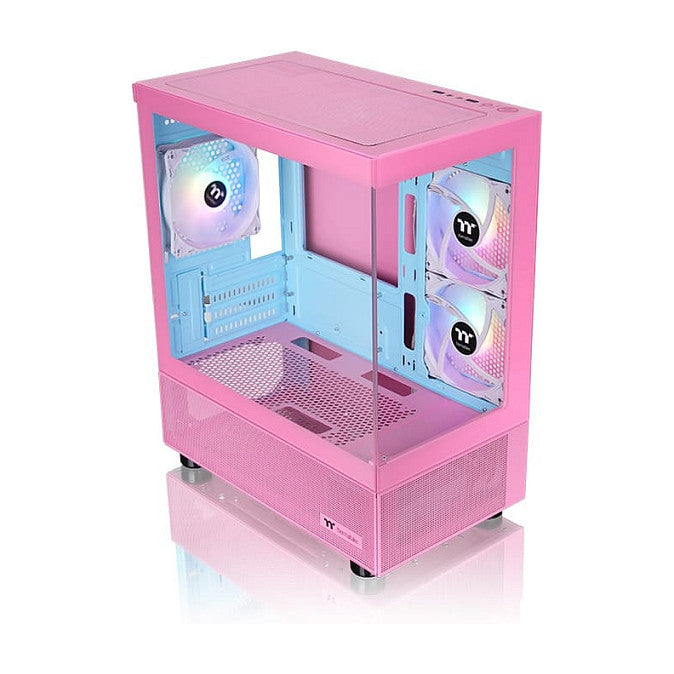

Tempered Glass Front and Left Panels
The View 170 TG ARGB Bubble Pink Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Flexibility to Build Your Best
The View 170 TG ARGB Bubble Pink Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Design
Material: SPCC, Tempered glass
Form factor: Micro Tower
Type: PC
Product colour: Pink
Supported motherboard form factors: micro ATX, Mini-ITX
Number of 3.5" bays: 1
Number of 2.5" bays: 2
Number of internal 3.5" bays: 1
Number of expansion slots: 4
Feature: Side window
Suitable for: Gaming
Feature: Illumination
Illumination colour: Multi
Illumination location: Case fans
Feature: Tempered glass panel(s)
Feature: LED indicators
Maximum CPU cooler height: 16 cm
Maximum graphics card length: 34 cm
Maximum PSU length: 18 cm
Power supply
Power supply location: Bottom
Supported power supply form factors: PS2
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Cooling
Side fans installed: 2x 120 mm
Number of side fans supported (max): 2
Side fans diameters supported: 120 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120,140 mm
Feature: Liquid cooling capability
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 120,140,240,280 mm
Storage
Supported HDD sizes: 2.5,3.5"
Weight & dimensions
Width: 212 mm
Depth: 377.5 mm
Height: 438 mm
Weight: 4.65 kg
Material thickness: 3 mm
Thermaltake CA-1Z4-00MAWN-01. Form factor: Micro Tower, Type: PC, Product colour: Pink. Power supply location: Bottom, Supported power supply form factors: PS2. Side fans installed: 2x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 377.5 mm, Height: 438 mm
Thermaltake
MBR CODE - CA-1Z4-00MAWN-01
EAN - 4711475649217
