O UD850GM PCIE 5.0 tem um conector de 16 pinos e vem com um cabo nativo de 16 pinos de alta qualidade que permite utilizar a PSU com uma placa gráfica PCIe Gen 5.0. Este cabo suporta até 600 watts de energia para a placa gráfica.
ULTRA DURÁVEL
Herde o espírito de design de produto da GIGABYTE Ultra Durable, introduzindo assim uma variedade de materiais e designs de alta qualidade. A Ultra Durable combina condensadores japoneses de topo de alta qualidade, solução térmica melhorada, ventoinha com rolamento hidráulico inteligente (HYB) de 120 mm e seis designs de proteção de circuitos. Oferece aos consumidores uma fonte de alimentação estável e de alta qualidade, com uma longa vida útil.
CAPACITORES JAPONESES DE ELEVADA QUALIDADE
Os condensadores principais utilizam condensadores japoneses de alta qualidade para produzir um desempenho eficiente e garantir uma maior fiabilidade.
SOLUÇÃO TÉRMICA MELHORADA
Em comparação com a solução térmica padrão, ampliámos o dissipador de calor em cerca de 200% ou mais e otimizámos o fluxo de ar. O desempenho de dissipação de calor é aumentado em mais de 10%, prolongando assim a vida útil dos componentes.

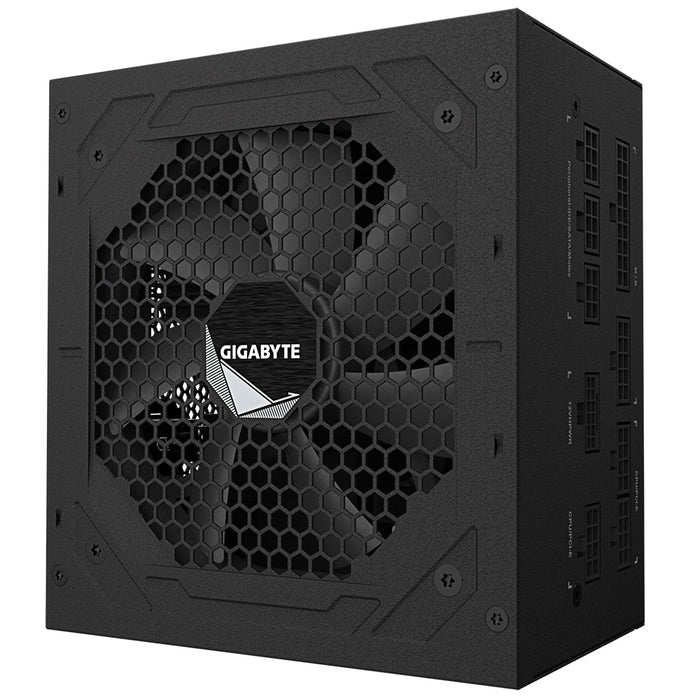

VENTILADOR DE ROLAMENTO HIDRÁULICO INTELIGENTE DE 120MM (HYB)
A velocidade do ventilador é ajustada de acordo com a deteção automática de potência e para quando o sistema está inativo ou sob baixa carga (menos de 20%). O ventilador com rolamento hidráulico proporciona uma vida útil mais longa e estável.
PROTEÇÃO
Para garantir que todo o sistema informático opera de forma estável sob quaisquer condições, não só adicionámos projetos de proteção como OCP, OTP, OVP, OPP, UVP e SCP, como também garantimos o funcionamento estável do seu sistema através da certificação de segurança de vários países.

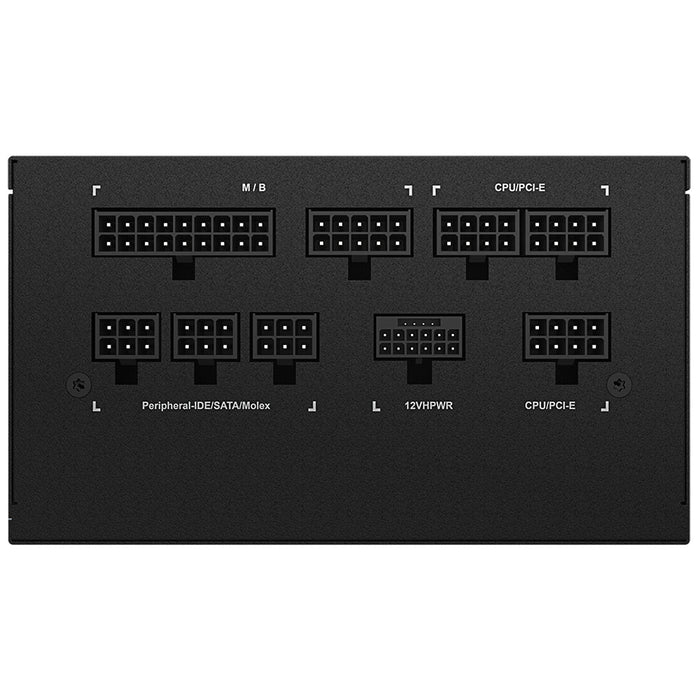

DESIGN TOTALMENTE MODULAR
Todos os cabos planos pretos têm um design modular. Instale apenas os cabos necessários para reduzir a desordem, aumentar o fluxo de ar e melhorar o desempenho térmico do armário.
CERTIFICAÇÃO 80 PLUS GOLD
A certificação 80 Plus Gold garante 90% de eficiência com 50% de carga. A maior eficiência energética resulta em menos desperdício de energia, menos calor e menos ruído do ventilador.
FONTE DE ENERGIA ABUNDANTE
O +12VHPWR e o +12V podem fornecer uma potência total de 850 W. O +12VHPWR pode fornecer até 600 W para a mais recente placa gráfica PCIe Gen 5.0.
DESIGN COMPACTO
Com a ajuda das excelentes características de design dos engenheiros e da tecnologia de dissipação de calor em vários produtos de hardware, além da utilização de materiais de alta qualidade, a GIGABYTE reduziu o comprimento da fonte de alimentação para uns incríveis 140 mm, para que possa ser facilmente instalada em qualquer caixa sem restrições de espaço.
| Potência total | 850 W |
| Tensão de entrada CA | 100 - 240 V |
| Frequência de entrada CA | 50 - 60 Hz |
| Corrente de entrada | 12 - 6 A |
| Corrente máxima de entrada (@110V) | 6 A |
| Corrente máxima de entrada (@220V) | 12 A |
| Tipo de correção do fator de potência (PFC) | Ativo |
| Potência combinada (+3,3 V) | 105 W |
| Potência combinada (+12V) | 850 W |
| Potência combinada (+5V) | 105 W |
| Potência combinada (-12V) | 3,6 W |
| Potência combinada (+5Vsb) | 15 W |
| Corrente máxima de saída (+3,3 V) | 20 A |
| Corrente máxima de saída (+12V) | 70,8 A |
| Corrente máxima de saída (+5V) | 20 A |
| Corrente máxima de saída (-12V) | 0,3 A |
| Corrente máxima de saída (+5Vsb) | 3 A |
| Tempo de espera | 16 ms |
| Eficiência | 90% |
| Recursos de proteção de energia | Sobrecorrente, Sobrecarga de potência, Sobretensão, Sobreaquecimento, Curto-circuito, Subtensão |
| Conector de alimentação da placa-mãe | ATX de 20+4 pinos |
| Comprimento do cabo de alimentação da motherboard | 61 cm |
| Número de conectores de alimentação SATA | 8 |
| Número de conectores de alimentação PATA | 3 |
| Comprimento do cabo de alimentação SATA | 150.600 mm |
| Conectores de alimentação periféricos (Molex) (4 pinos) | 2 |
| Comprimento do cabo de alimentação periférico (Molex) | 200.600 mm |
| Conectores de alimentação PCI Express (6+2 pinos) | 4 |
| Conectores de alimentação PCI Express (16 pinos) | 1 |
| Comprimento do cabo de alimentação PCI Express | 70 cm |
| Conector de alimentação da CPU (4+4 pinos) | Sim |
| Conector de alimentação ATX (20+4 pinos) | Sim |
| Conector PCI Express | Sim |
| Tipo de cablagem | Totalmente modular |
| Certificação 80 PLUS | 80 PLUS Ouro |
| Finalidade | PC |
| Fator de forma da unidade de fonte de alimentação (PSU) | ATX |
| Nível de ruído | 40 dB |
| Tempo médio entre avarias (MTBF) | 100000 h |
| Cor do produto | Preto |
| Tipo de arrefecimento | Ativo |
| Diâmetro do ventilador | 12 cm |
| Número de fãs | 1 fã(s) |
| Localização do ventilador | Topo |
| Iluminação | Não |
| Cabos incluídos | CPU, PATA, Periférico (Molex), SATA |
| Abraçadeira(s) de cabo incluída(s) | Sim |
| Certificados de conformidade | CCC, CE, Comissão Federal de Comunicações (FCC), RoHS |
| Largura | 150 mm |
| Profundidade | 140 mm |
| Altura | 85 mm |
| Tipo de pacote | Caixa |
| Período de garantia | 5 anos |

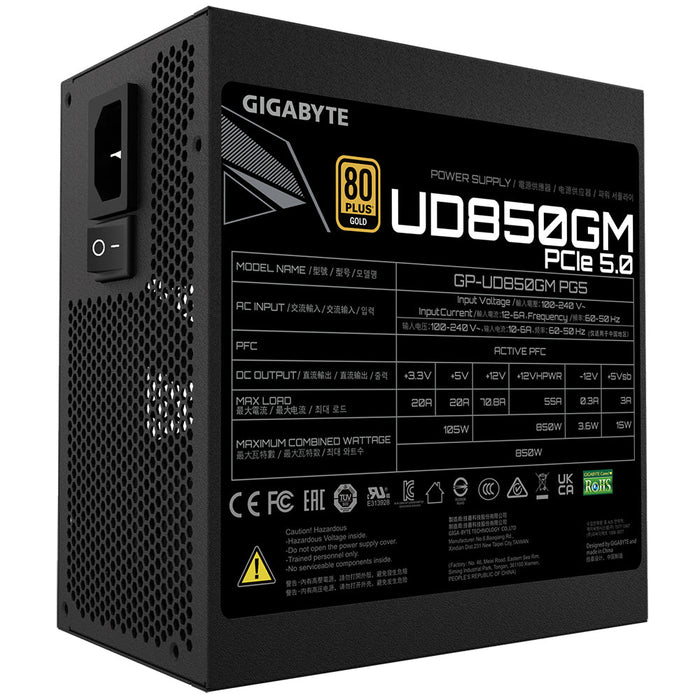

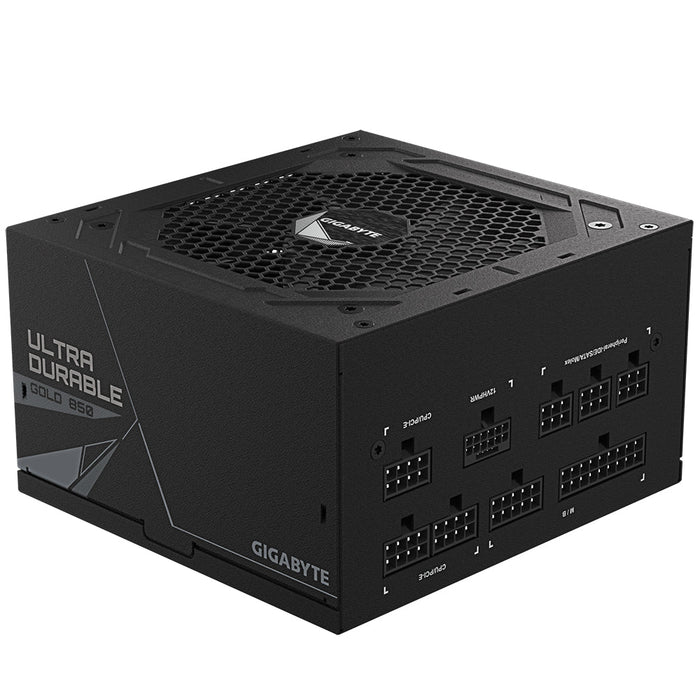

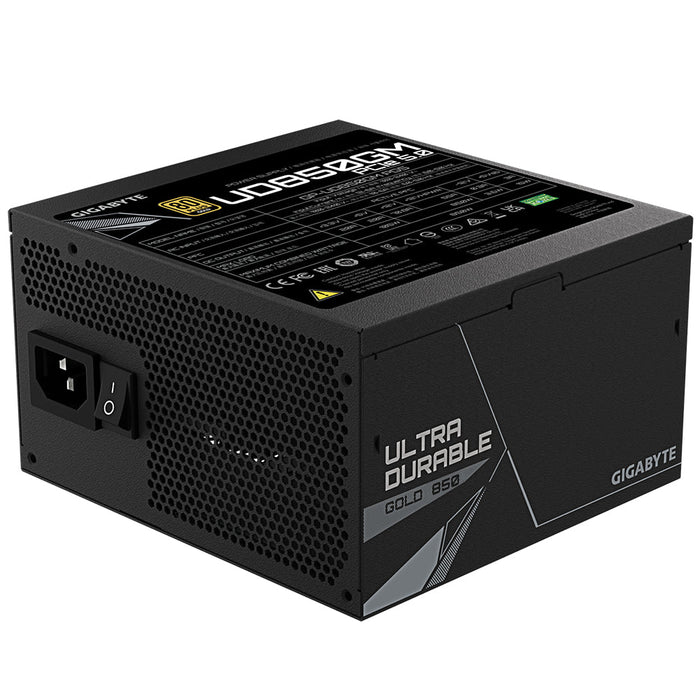

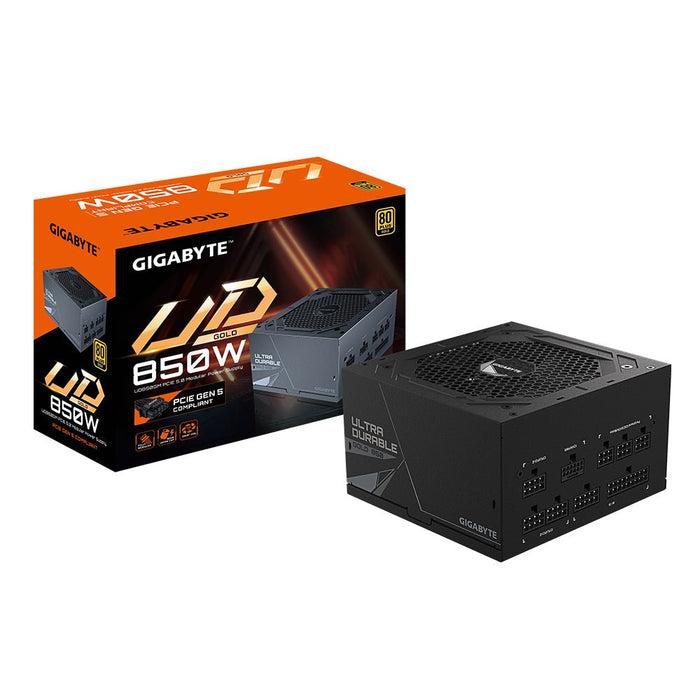

Fonte de alimentação GIGABYTE GP-UD850GM PG5
