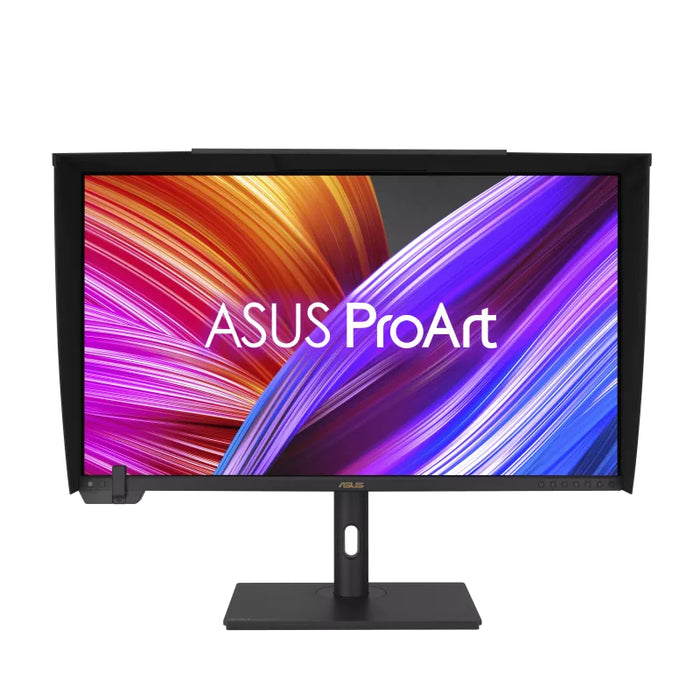

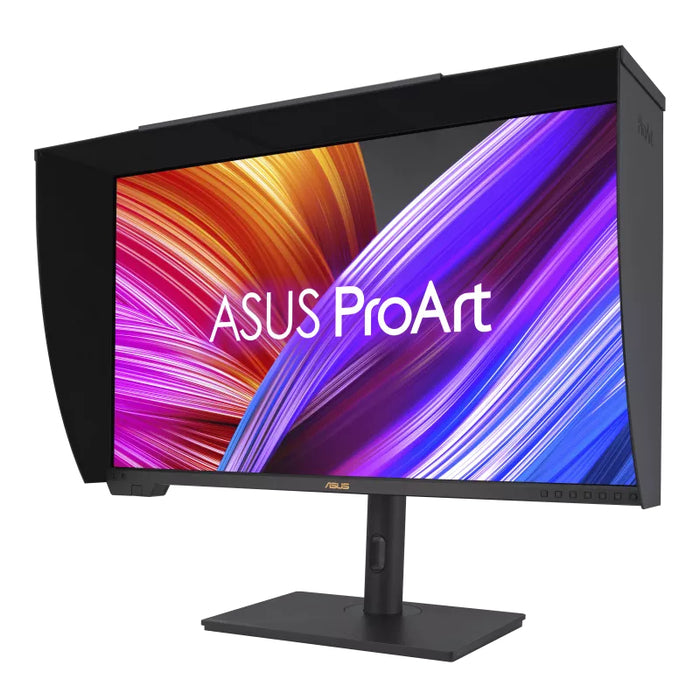

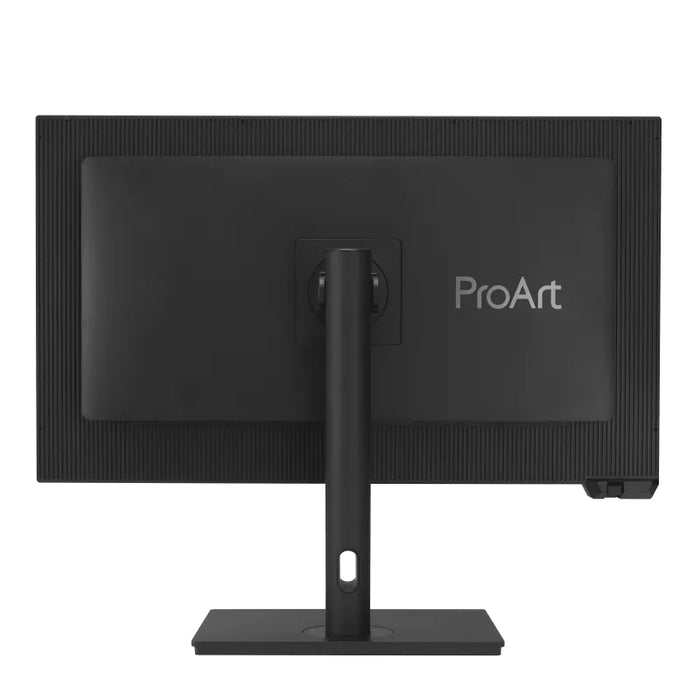

ProArt Display PA32UCXR
1600 Nits Mini-LED Monitor with Built-in Colorimeter for Ultimate Realism
ASUS ProArt Display PA32UCXR features mini-LED backlighting with 2304-zone local dimming, 1600 nits peak brightness, and up to 1000 nits sustained brightness without partial patch limitation. It boasts an industry-leading Delta E < 1 color difference, and features a built-in motorized flip colorimeter to ensure professional-grade color accuracy. Two Thunderbolt™ 4 ports and a host of other connectivity options enable seamless and efficient creative workflows, making this monitor ideal for content creators.
Display
Display diagonal: 81.3 cm (32")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Backlight type: Mini LED
Display brightness (peak): 1600 cd/m²
Display brightness (typical): 1000 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 1000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.1845 x 0.1845 mm
Viewable size, horizontal: 70.8 cm
Viewable size, vertical: 39.9 cm
Digital horizontal frequency: 135 - 135 kHz
Digital vertical frequency: 40 - 60 Hz
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: DisplayHDR 1400, Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Colour gamut standard: DCI-P3
Colour gamut: 97%
sRGB coverage (typical): 100%
Performance
Feature: VESA Adaptive Sync support
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 6 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 2 (3.1 Gen 2)
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 90 W
Feature: HDMI
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Thunderbolt 4 ports quantity: 2
Feature: Headphone out
Headphone outputs: 1
Feature: HDCP
HDCP version: 2.2
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 10 cm
Feature: Pivot
Pivot angle: -90 - 90°
Feature: Swivelling
Swivel angle range: -30 - 30°
Feature: Tilt adjustment
Tilt angle range: -5 - 23°
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 41 kWh
Energy consumption (HDR) per 1000 hours: 63 kWh
Power consumption (typical): 46.62 W
Power consumption (off): 0 W
Power consumption (PowerSave): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 1692522
Weight & dimensions
Width (with stand): 727 mm
Depth (with stand): 245 mm
Height (with stand): 601 mm
Weight (with stand): 13.8 kg
Width (without stand): 727 mm
Depth (without stand): 90 mm
Height (without stand): 445 mm
Weight (without stand): 9.2 kg
Packaging data
Package width: 965 mm
Package depth: 228 mm
Package height: 555 mm
Package weight: 20.5 kg
Package type: Box
Other features
Feature: Hardware calibration
ASUS ProArt Display PA32UCXR. Display diagonal: 81.3 cm (32"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black
ASUS
MBR CODE - 90LM03H0-B01K70
EAN - 4711387267103
