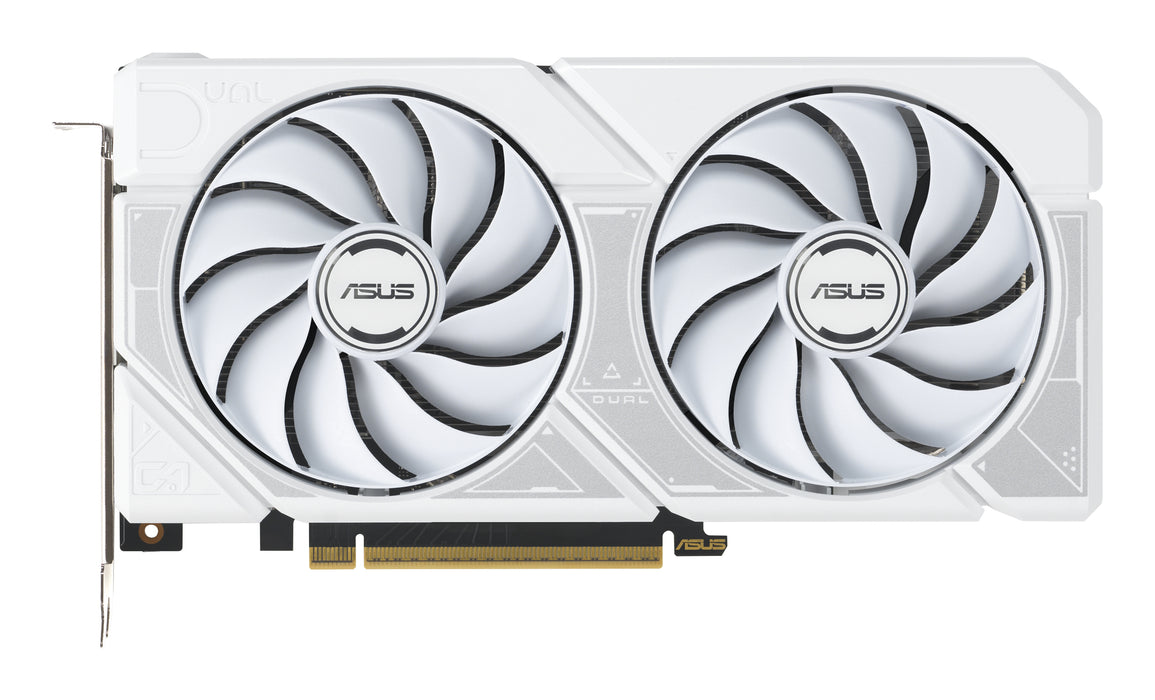

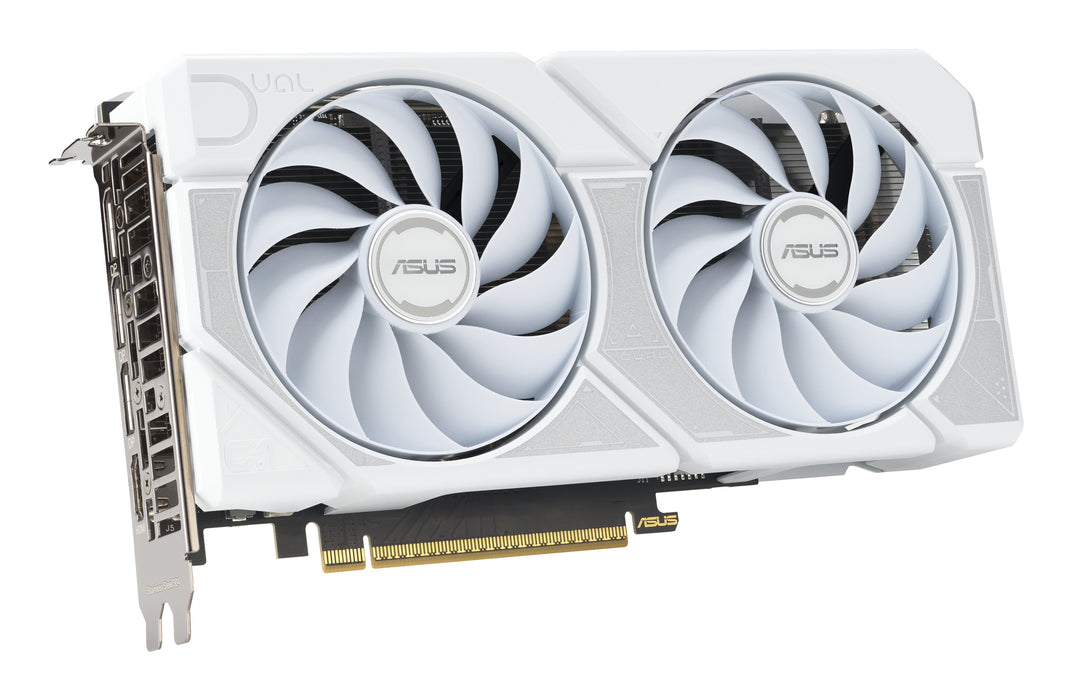

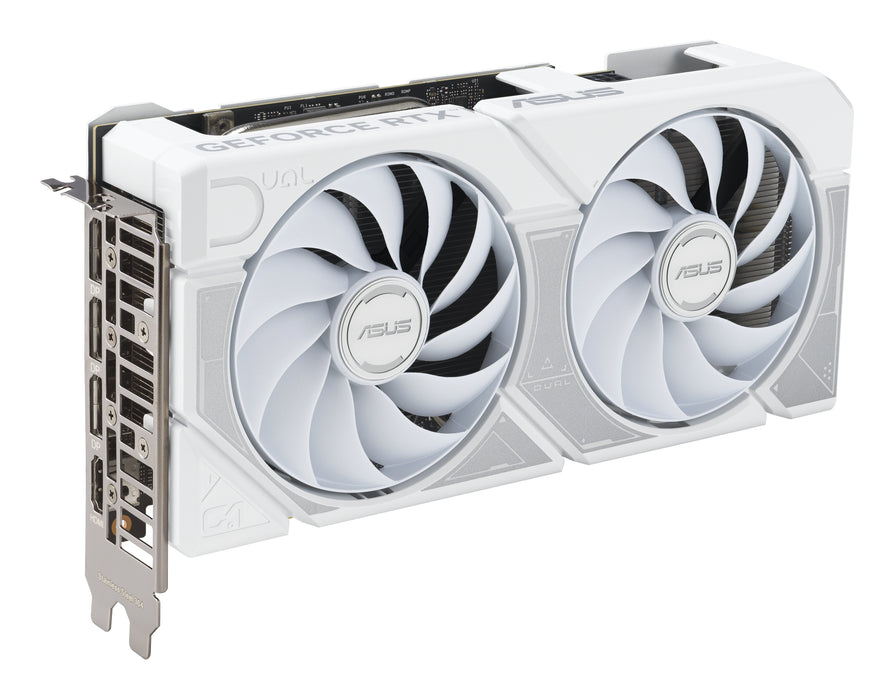

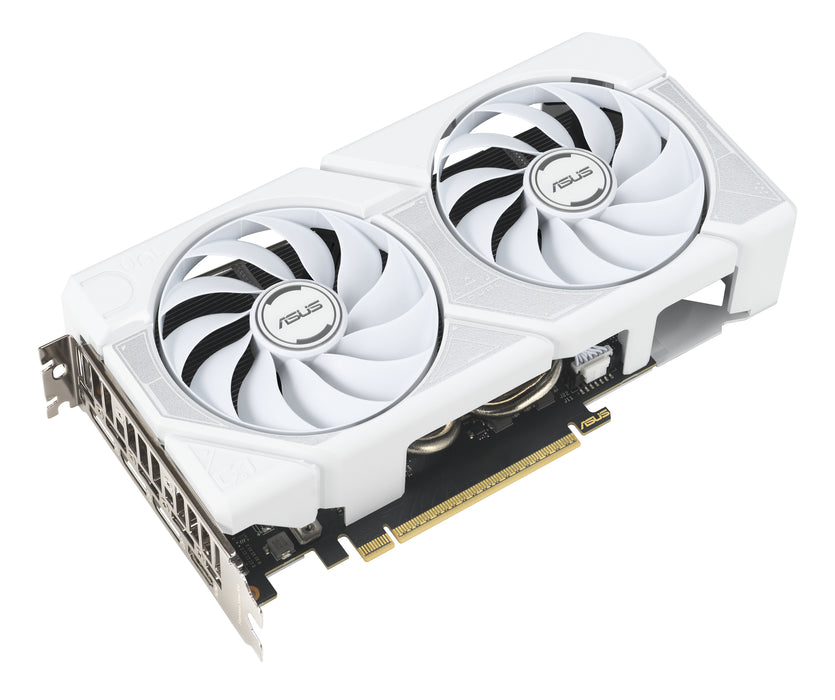

Dual Fans, Perfect Fit

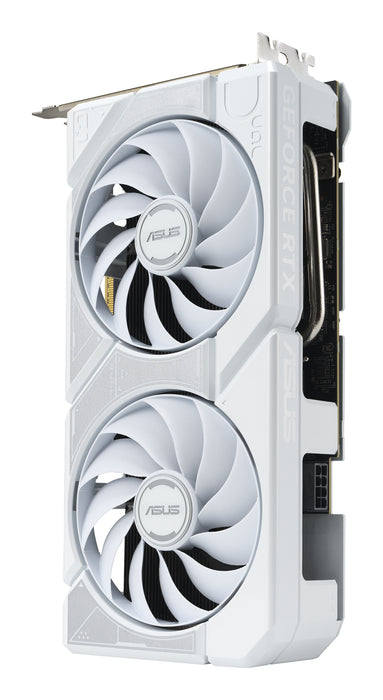

ASUS Dual GeForce RTX™ 5060 Ti White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling

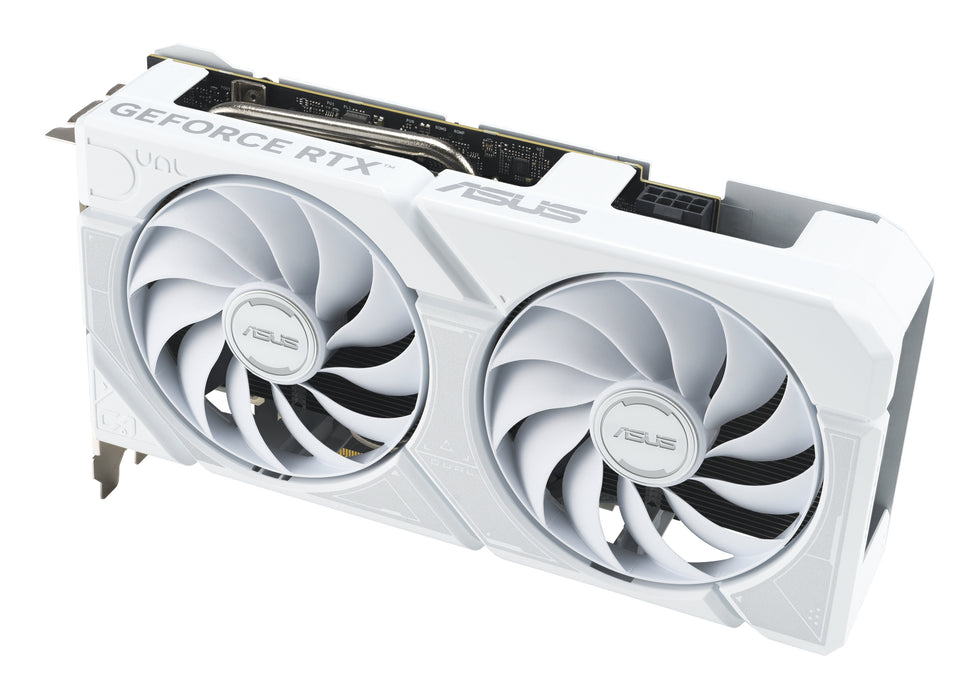

2.5-slot Design

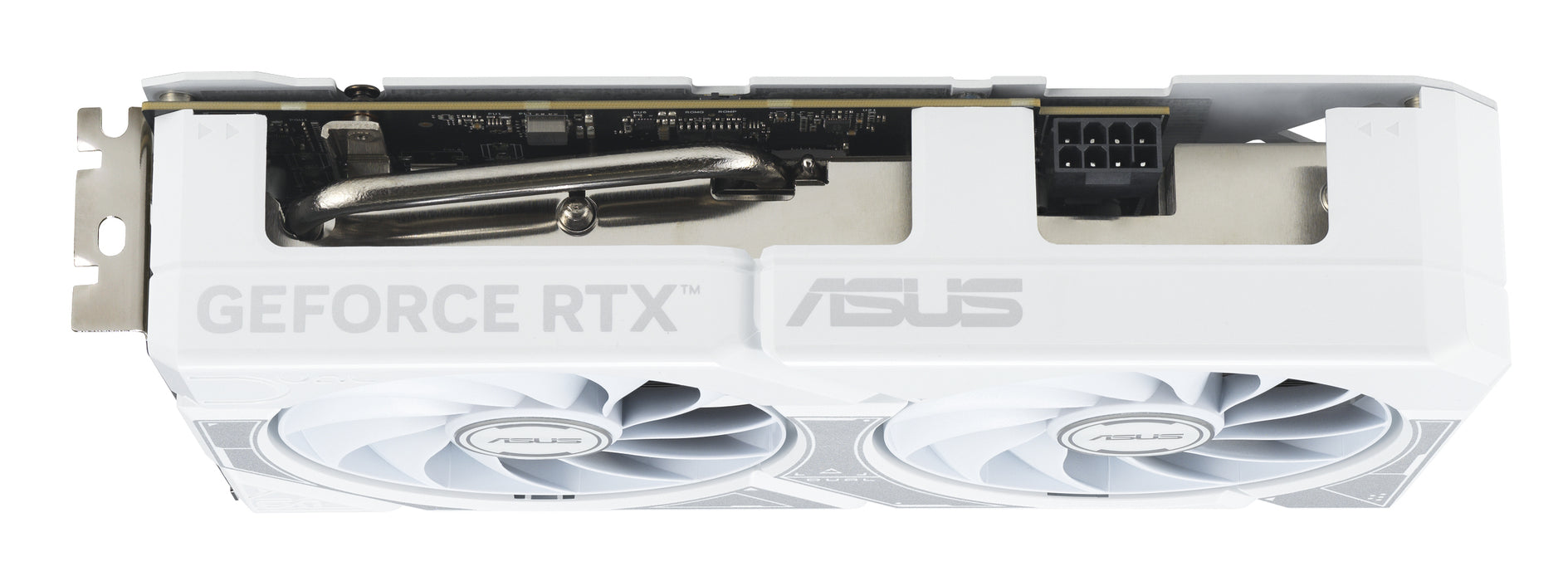

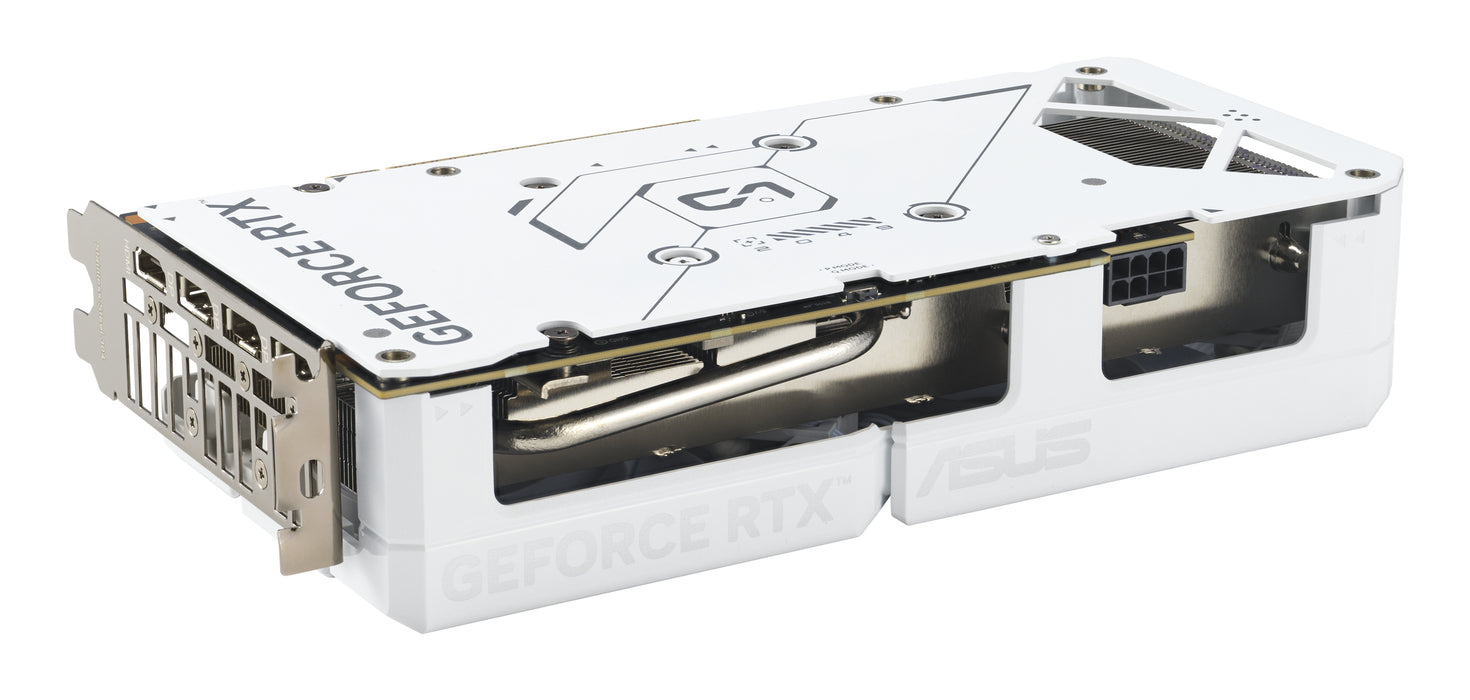

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades

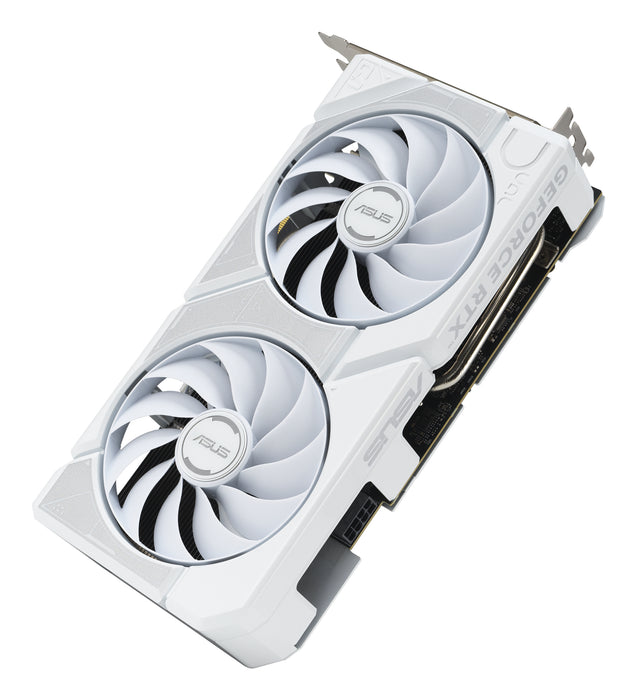

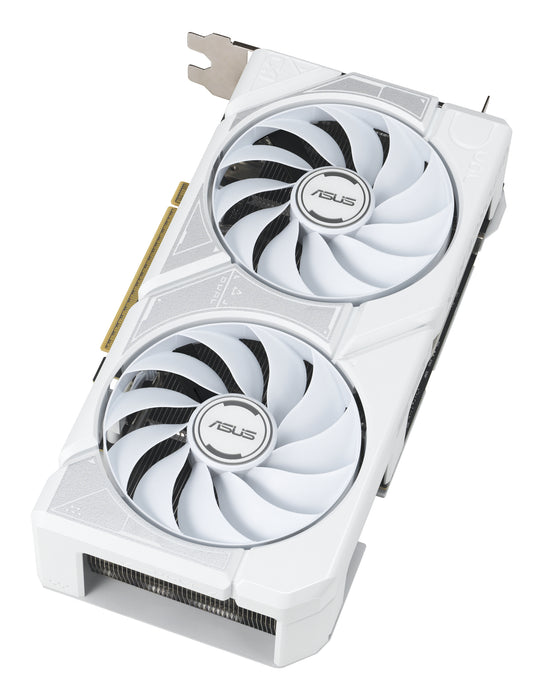

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
CUDA | Yes |
CUDA cores | 4608 |
Graphics processor family | NVIDIA |
Graphics processor | GeForce RTX 5060 Ti |
Processor boost clock speed | 2602 MHz |
Processor frequency (OC mode) | 2632 MHz |
Maximum resolution | 7680 x 4320 pixels |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Discrete graphics card memory | 16 GB |
Graphics card memory type | GDDR7 |
Memory bus | 128 bit |
Data transfer rate | 28 Gbit/s |
Interface type | PCI Express 5.0 |

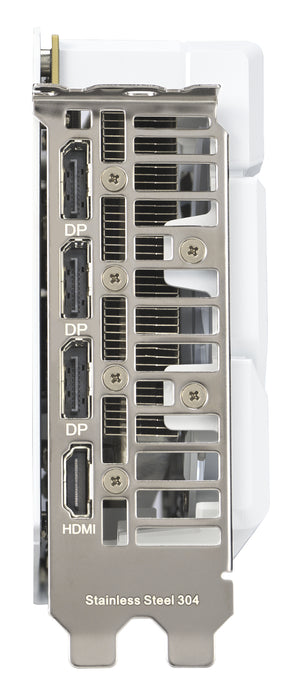

HDMI ports quantity | 1 |
HDMI version | 2.1b |
DisplayPorts quantity | 3 |
DisplayPort version | 2.1b |
TV tuner integrated | No |
OpenGL version | 4.6 |
HDCP | Yes |
HDCP version | 2.3 |
NPU performance up to | 767 TOPs |
Overclocked (OC) edition | Yes |
Cooling type | Active |
Cooling technology | ASUS Axial-tech |
Number of fans | 2 fan(s) |
Number of slots | 2.5 |
Product colour | White |
Minimum system power supply | 550 W |

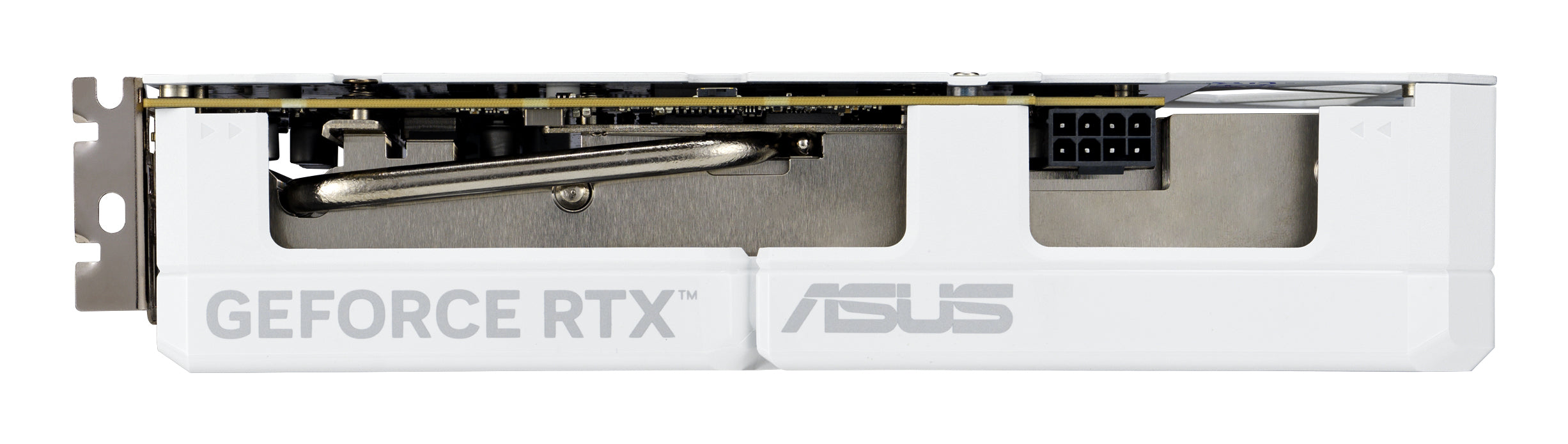

Supplementary power connectors | 1x 8-pin |
Weight | 656 g |
Length | 229 mm |
Depth | 50 mm |
Height | 120 mm |
Package width | 364 mm |
Package depth | 217 mm |
Package height | 66 mm |
Package weight | 1.12 kg |
Package type | Box |
Manual | Yes |
