Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7800,7950,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 MHz
Supported memory clock speed (max): 9500 MHz
Maximum internal memory: 256 GB
Feature: Unbuffered memory
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 8
Number of storage drives supported: 12
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
DirectX version: 12.0
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 2
Number of SATA III connectors: 8
Feature: Front panel audio connector
Feature: Front panel connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of CPU fan connectors: 2
Number of chassis fan connectors: 6
Feature: EPS power connector (8-pin)
Number of EPS power connectors (8-pin): 2
Feature: TPM connector
Thunderbolt headers: 1
Number of water pump connectors: 2
Feature: RGB LED pin header
Number of RGB LED pin headers: 4

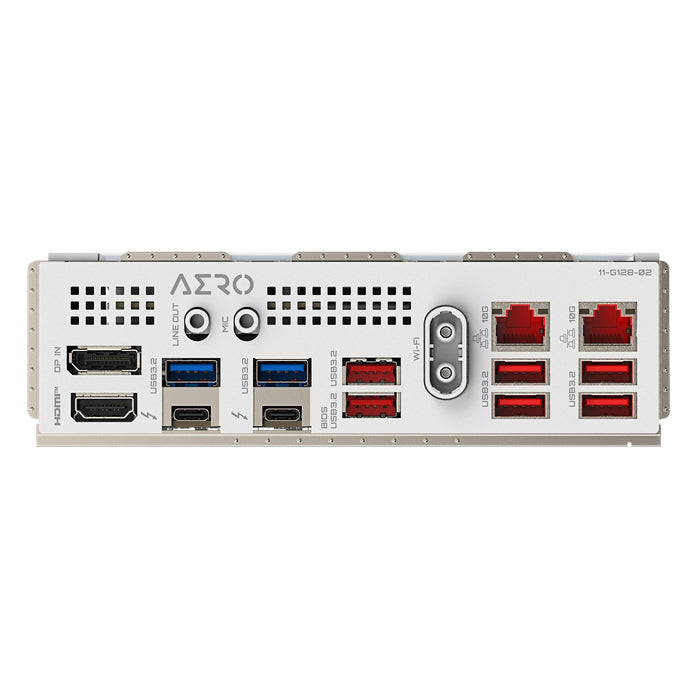

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
Feature: Line-in
Thunderbolt ports quantity: 2
WiFi-AP antenna jack: 2
Network
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Marvell AQtion AQC113C
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
WLAN controller model: Intel Wi-Fi 7 BE200
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: Intel Z890
Audio chip: ESS ES9260
Audio output channels: 2.0 channels
Product colour: White
PC health monitoring: Fan, Noise, Temperature, Voltage
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 4
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 25110
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 22110
4th M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Feature: Clear CMOS jumper
Feature: Clear CMOS button
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Battery
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Packaging data
Package width: 400 mm
Package depth: 335 mm
Package height: 430 mm
Package weight: 4 kg
Weight & dimensions
Width: 305 mm
Depth: 285 mm
Height: 35 mm
Packaging content
Feature: Batteries included
Feature: Antenna included
Feature: Screws included
Bundled software: Norton® Internet Security (OEM version)LAN bandwidth management software
Other features
Weight: 3.42 kg
Technical details
Warranty period: 3 year(s)
GIGABYTE Z890 AERO D Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 9500MHz DDR5 (OC), PCIe 5.0 M.2, Wi-Fi 7, Thunderbolt 5. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Marvell AQtion AQC113C, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: Intel
Gigabyte
MBR CODE - Z890 AERO D
EAN - 4719331865894
