COMPACT DIMENSION with x4 120mm FANS PRE-INSTALLED

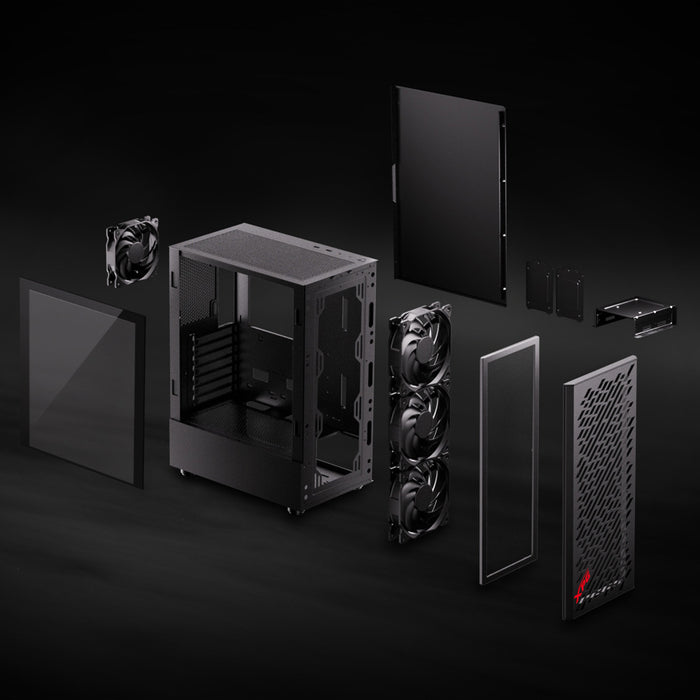

XPG VALOR AIR is a compact ATX mid-tower chassis with Streamline-Carving front panel design. Magnetic front panel and filter are both detachable, convenient for quick cleaning. 3mm-tempered glass side panel serves as a way to enjoy gazing through the tempered glass for looks.
MAGNETIC FRONT PANEL DESIGN
XPG VALOR AIR’s front panel is designed with Streamline-Carving pattern and utilizes steel material. Both front panel and dust filter are designed with magnetic and detachable for quick and convenient removal.
ATX FORM FACTOR
XPG VALOR AIR supports Mini-ITX, Micro-ATX and ATX form-factor motherboards.
EFFICIENT COOLING DESIGN
XPG VALOR AIR sports a sleek, clean look with a streamlined design that enhances cool air from outside to be drawn in via x3 pre-installed 120mm fans at the front, and a 120mm fan at the rear to exhaust the heat.
GRAPHIC CARD SUPPORT
The compact dimension does not compromise its fundamentals in hardware compatibility when installing or selecting graphic card.
XPG VALOR AIR can install graphic card installation up to 305mm length with the fans installed at front.
PSU INSTALLATION COMPATIBILITY
While ideal for modern and compact PSUs from XPG, such as award-winning XPG CORE REACTOR and XPG CYBERCORE, respectively at 140mm and 160mm in length, VALOR AIR compact ATX chassis design still allows to easily slide in up to 180mm long PSUs, which translates to a lot of space still available for cable management.
HDD/SSD cage is also removable, providing additional space that can reach up to 311mm.
HDD/SSD STORAGE
Users can also install a HDD cage to add either two 3.5" or a 2.5 plus a 3.5" drive underneath the front side of the PSU shroud. The HDD cage is provided as an accessory when unboxing XPG VALOR AIR, as a flexible option for users to choose from when install storage.
VERSATILE I/O PORTS
XPG VALOR AIR offers an array of I/O ports such as two high-speed USB 3.2 Gen 1 and a 3.5mm audio/mic combo jack.
| Material | Carbon steel, Tempered glass |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.6 cm |
| Maximum graphics card length | 33.5 cm |
| Maximum PSU length | 18 cm |
| Power supply included | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Fan speed control | Yes |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 5 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 4 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 240 mm |
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
| Manual | Yes |
| Width | 210 mm |
| Depth | 371 mm |
| Height | 460 mm |
| Material thickness | 3 mm |
