BUILT FOR THE FUTURE
XPG's newest ocean-view chassis boasts compatibility with the latest ATX reverse-connector motherboards, providing the ultimate platform to showcase your clean cable management. Equipped with four pre-installed reverse fans and one standard fan, it ensures optimal airflow performance while maintaining a sleek aesthetic from every angle.
Reverse-Connector Motherboard Compatibility
Imagine effortless cable management! XPG INVADER X BTF supports both standard and the innovative new reverse-connector motherboards. Say goodbye to cable clutter and hello to a more organized interior. Cables can now be efficiently managed behind the motherboard tray, resulting in stunning builds with a tidy aesthetic from every angle.
Support Up to 10 Fans
XPG INVADER X BTF conquers heat with its spacious interior, able to accommodate up to 10 fans for xtreme cooling performance.
Easy Cable Management

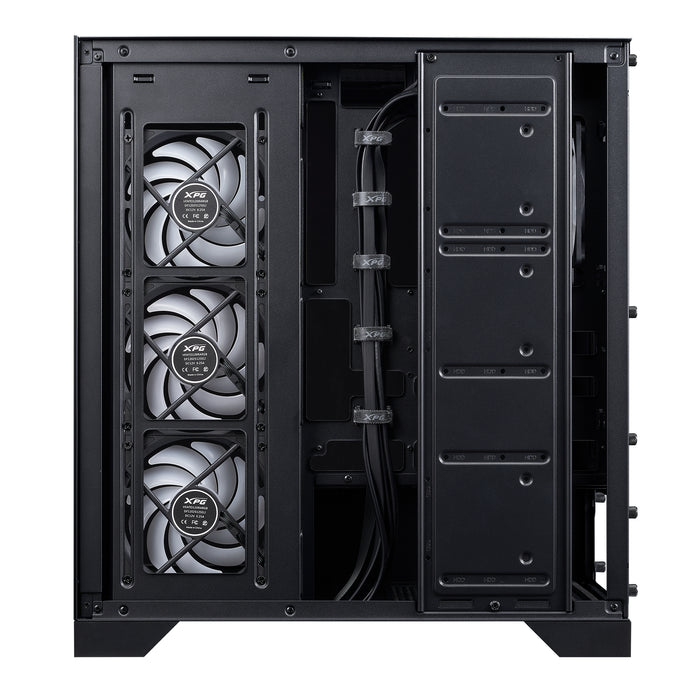

XPG INVADER X BTF's built-in back cable straps make cable management a breeze. Also, enjoy a 36mm deep cable management space for reduced clutter and easy cable routing.
Removable Drive Bracket
The XPG INVADER X BTF features a removable drive bracket for mounting up to three 3.5” or 2.5” HDD/SSD storage devices.
Enhanced Cooling For Better Performance
Four pre-installed 120mm reverse blade fans, optimized for air intake from the side and bottom, deliver exceptional airflow for the entire system. With room for up to a 360mm radiator on the top, this case offers exceptional cooling performance for heavy-duty gaming and overclocking.
Future-Proof Compatibility
XPG INVADER X BTF boasts exceptional versatility when it comes to motherboard and component selection. It caters to a wide range of motherboard sizes, supporting ATX, Micro-ATX, and even the compact Mini-ITX form factors. Additionally, the case accommodates graphics cards up to 400mm in length, providing ample room for even the most powerful GPUs. Moreover, XPG INVADER X BTF offers ample space for power supplies measuring up to 240mm long.
| Material | SPCC, Tempered glass |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 3 |
| Side window | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40 cm |
| Maximum PSU length | 24 cm |
| Power supply included | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Built-in display | No |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120,140 mm |
| Side radiator sizes supported | 120,140,200,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,180,240,280,320,360 mm |
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
| Number of HDDs supported | 3 |
| Warranty period | 2 year(s) |
| Width | 245 mm |
| Depth | 448 mm |
| Height | 485 mm |
| Weight | 8.95 kg |
| Material thickness | 3 mm |
| Package weight | 10.2 kg |
