Data strategy, not just data storage
Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.
Unlocking the Full Potential of Enterprise SSDs
With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.
Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5” SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.
Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.
Features
NVMe version: 1.4
SSD capacity: 3.84 TB
SSD form factor: U.3
Interface: PCI Express 4.0
Feature: NVMe
Memory type: TLC 3D NAND
Component for: Server/workstation
Feature: Hardware encryption
Read speed: 6800 MB/s
Write speed: 2600 MB/s
Random read (4KB): 980000 IOPS
Random write (4KB): 80000 IOPS
Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
Mean time between failures (MTBF): 2500000 h
Feature: Windows operating systems supported
Feature: Linux operating systems supported
Feature: Server operating systems supported
Weight & dimensions
Width: 69.8 mm
Depth: 100.3 mm
Height: 14.9 mm
Weight: 147.3 g
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Other features
Warranty period: 5 year(s)

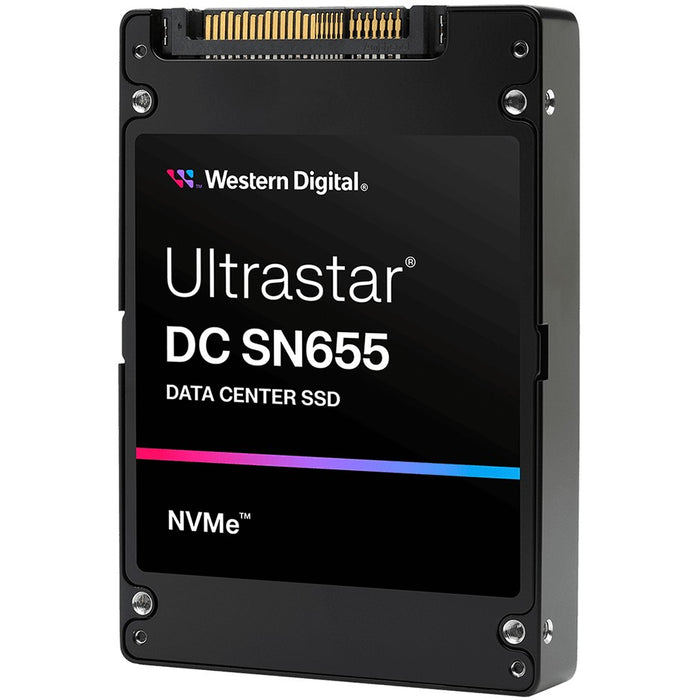

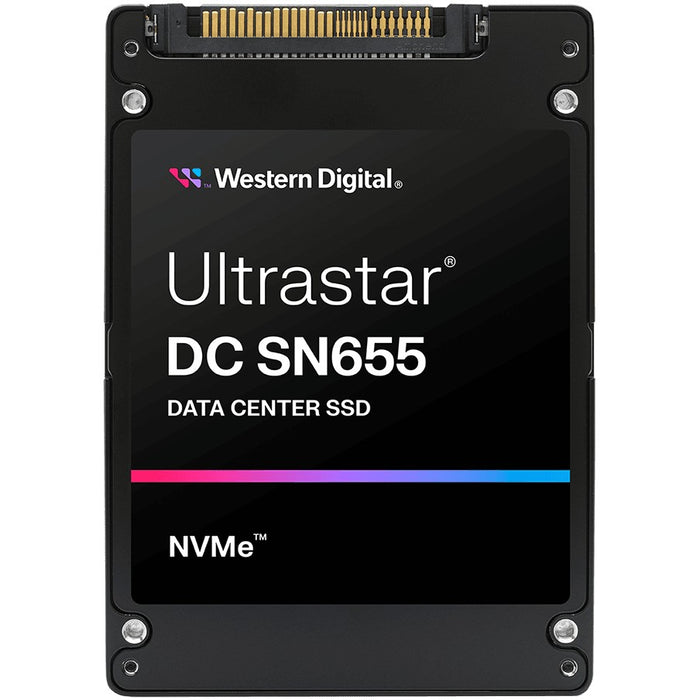

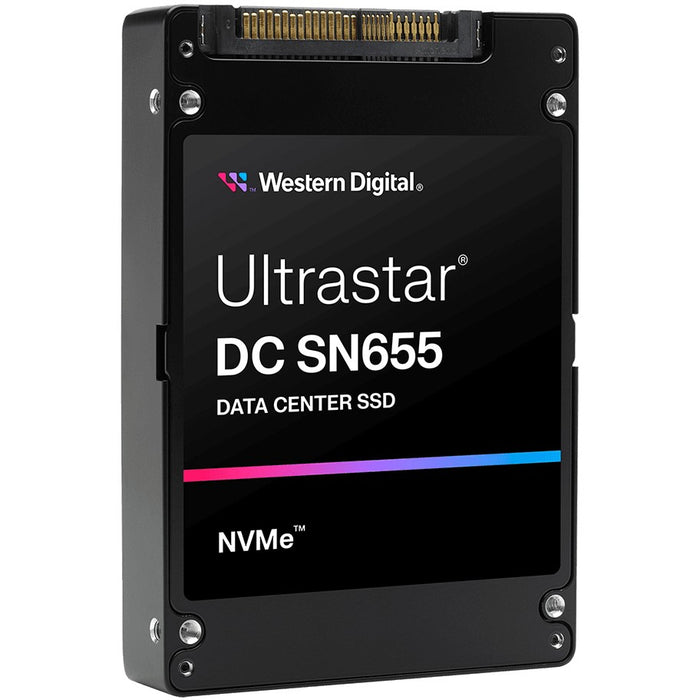

Western Digital Ultrastar DC SN655. SSD capacity: 3.84 TB, SSD form factor: U.3, Read speed: 6800 MB/s, Write speed: 2600 MB/s, Component for: Server/workstation
Western Digital
MBR CODE - 0TS2462
EAN - 0829686008632
