Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
- Standard Form Factors offer Feature-rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Processor
Processor manufacturer: Intel
Processor socket: LGA 3647 (Socket P)
Compatible processor series: Intel® Xeon®
Processor number of cores supported: 28
Supported QPI: 10.4 GT/s
Memory channels supported by processor: Dual
Memory
Supported memory types: DDR4-SDRAM
ECC сompatibility: ECC
Supported memory clock speeds: 2133,2400,2666 MHz
Maximum internal memory: 4 TB
Maximum RDIMM memory: 2 TB
Storage controllers
Supported storage drive interfaces: SATA III
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Internal I/O
Number of SATA III connectors: 10
Number of COM connectors: 2
Feature: TPM connector
Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
COM ports quantity: 2
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: Intel® C621
Expansion slots
PCI Express x16 (Gen 3.x) slots: 6
BIOS
BIOS type: AMI
BIOS memory size: 64 Mbit
ACPI version: 1.0 / 2.0
Feature: Plug and Play
System Management BIOS (SMBIOS) version: 2.7.1
Processor special features
Feature: Trusted Platform Module (TPM)
Operational conditions
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 384 mm
Depth: 335.3 mm
Packaging content
Bundled software: Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Other features
PCI Express x4 (Gen 3.x) slots: 1
UEFI version: 2.3.1
Supported DIMM module capacities: 64GB, 128MB
Maximum LRDIMM memory: 2 TB
Number of DIMM slots: 16
Number of processors supported: 1
Thermal Design Power (TDP): 205 W
Technical details
Form factor: Proprietary
Compliance certificates: RoHS

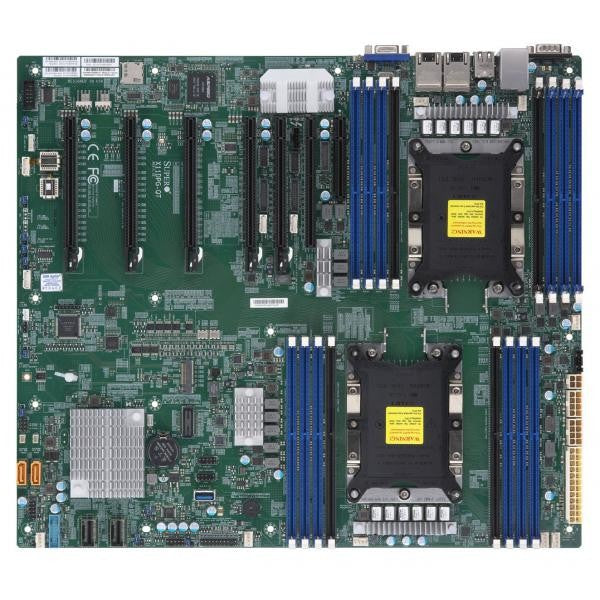

Supermicro MBD-X11DPG-QT-B. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P), Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 4 TB, ECC сompatibility: ECC. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet
Super Micro
MBR CODE - MBD-X11DPG-QT-B
EAN - 0672042286911
