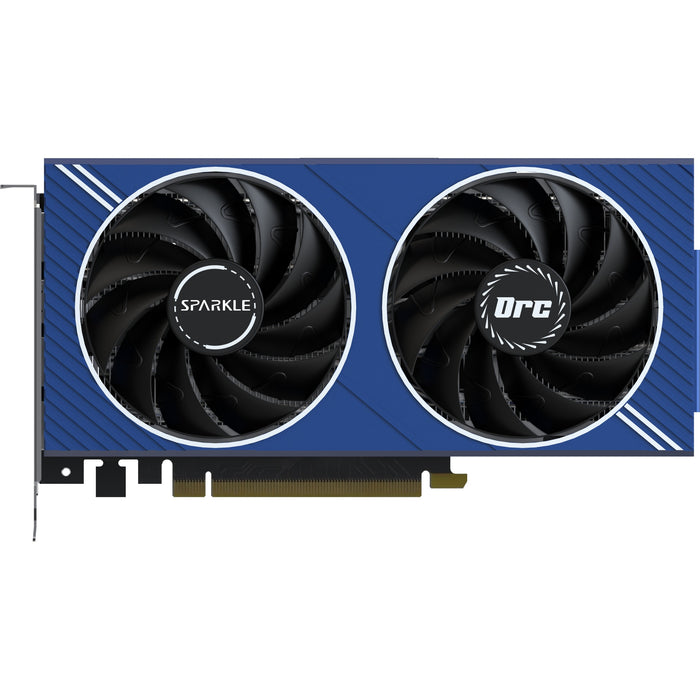

The SPARKLE Intel Arc A580 ORC OC Edition is ready to level up your performance. Experience
advanced fast-paced gaming and unleash your creativity with brand new Intel Arc A580.
ORC Series equipped TORN Cooling with double customized AXL fans, 2.2-slot design and full-metal
backplate for compatibility with all types of gaming case. ORC series also has patented(pending)
ThermalSync™, which allow users monitor their GPU temperatures at all times.
Processor
Graphics processor family: Intel
Graphics processor: Arc A580
Processor frequency: 2000 MHz
Maximum resolution: 7680 x 4320 pixels
Memory
Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 256 bit
Data transfer rate: 16 Gbit/s
Memory bandwidth (max): 512 GB/s
Ports & interfaces
Interface type: PCI Express x16 4.0
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 3
DisplayPort version: 2.0
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 384
Xe-cores: 24
Video formats supported: VP9
Design
Cooling type: Active
Number of fans: 2 fan(s)
Number of slots: 2.2
Product colour: Black, Blue, Silver
Power
Minimum system power supply: 600 W
System requirements
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Ubuntu 22.04
Weight & dimensions
Weight: 742 g
Length: 222 mm
Depth: 40.9 mm
Height: 101 mm
Packaging data
Package type: Box
Sparkle Technology Intel Arc A580 ORC OC Edition. Graphics processor family: Intel, Graphics processor: Arc A580, Processor frequency: 2000 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Sparkle
MBR CODE - SA580C-8GOC
EAN - 4711342290221
