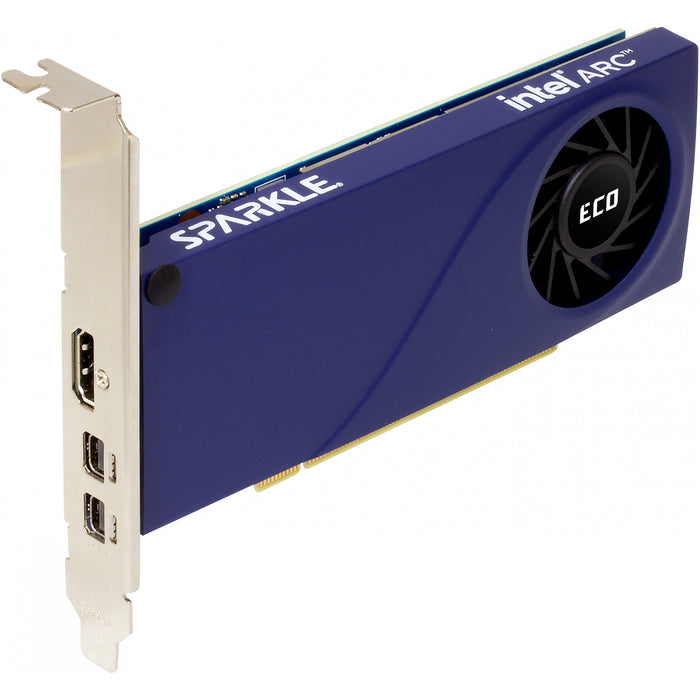

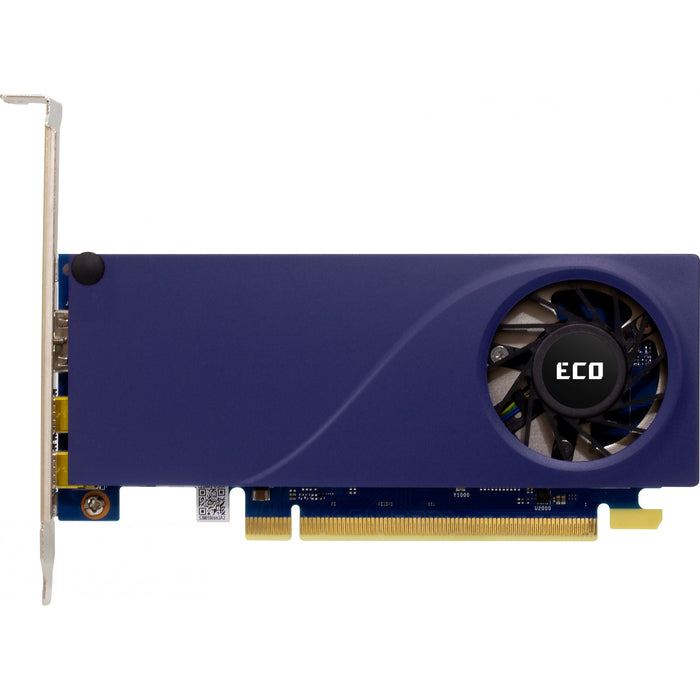

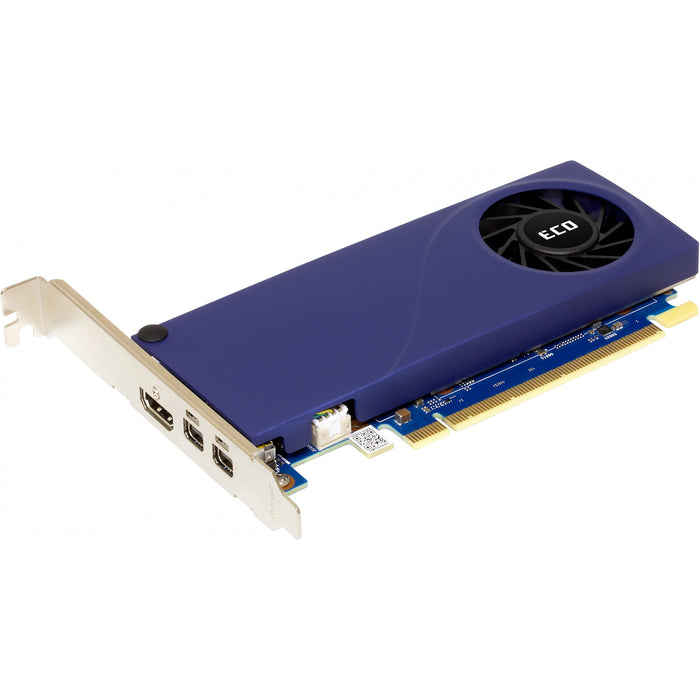

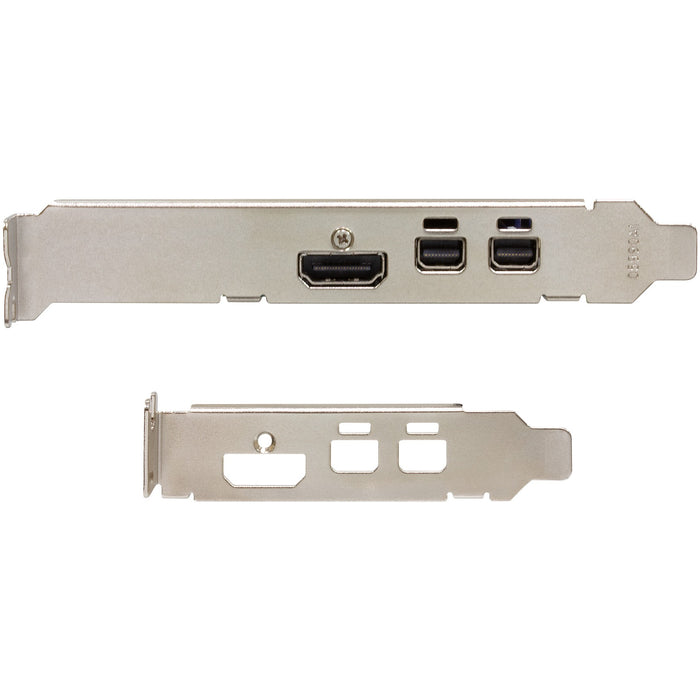

The SPARKLE team has successfully reduced the TBP of the Intel® Arc™ A310 GPU from 75W to 50W, allowing the SPARKLE Intel® Arc™ A310 ECO to be fully functional within a low-profile, single-slot, single-fan configuration. Meanwhile, the SPARKLE Intel® Arc™ A310 ECO maintains all of the modern technologies and capabilities of the Intel® Arc™ A310 GPU with 1x HDMI and 2x Mini DisplayPort video outputs as well as an additional short bracket free-of-charge. This card is designed to be the best choice for users seeking the best balance of modern technologies and capabilities for small form-factors.
Processor
Graphics processor family: Intel
Graphics processor: Arc A310
Processor frequency: 1000 MHz
Maximum resolution: 7680 x 4320 pixels
Ray accelerators: 6
Memory
Discrete graphics card memory: 4 GB
Graphics card memory type: GDDR6
Memory bus: 64 bit
Data transfer rate: 15.5 Gbit/s
Memory bandwidth (max): 124 GB/s
Ports & interfaces
Interface type: PCI Express 4.0
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 2.0
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 96
Xe-cores: 6
Video formats supported: AV1, VP9
Design
Cooling type: Active
Number of fans: 1 fan(s)
Product colour: Blue, Black
Power
Minimum system power supply: 350 W
Power consumption (typical): 50 W
System requirements
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Ubuntu 22.04
Weight & dimensions
Weight: 202 g
Length: 156 mm
Depth: 15 mm
Height: 69 mm
Sparkle Technology Intel Arc A310 ECO. Graphics processor family: Intel, Graphics processor: Arc A310, Processor frequency: 1000 MHz. Discrete graphics card memory: 4 GB, Graphics card memory type: GDDR6, Memory bus: 64 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 1 fan(s)
Sparkle
MBR CODE - SA310C-4G
EAN - 4711342290368
