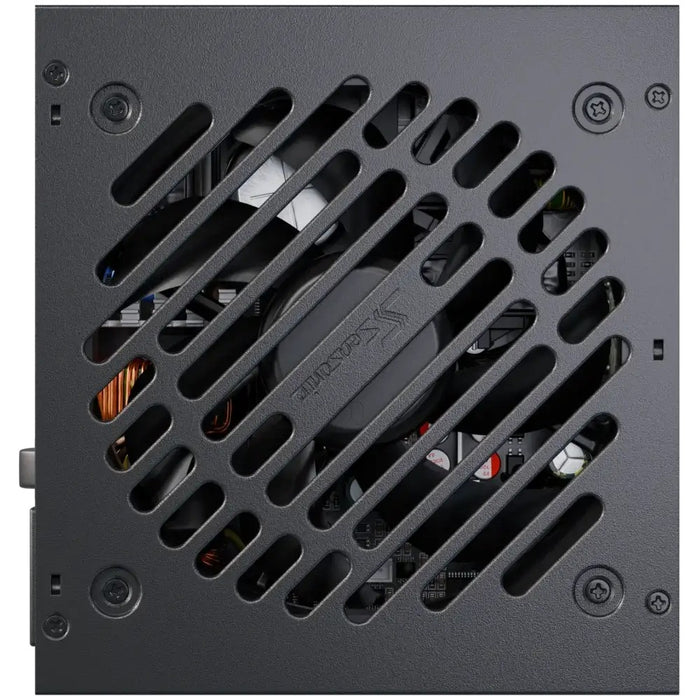

The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

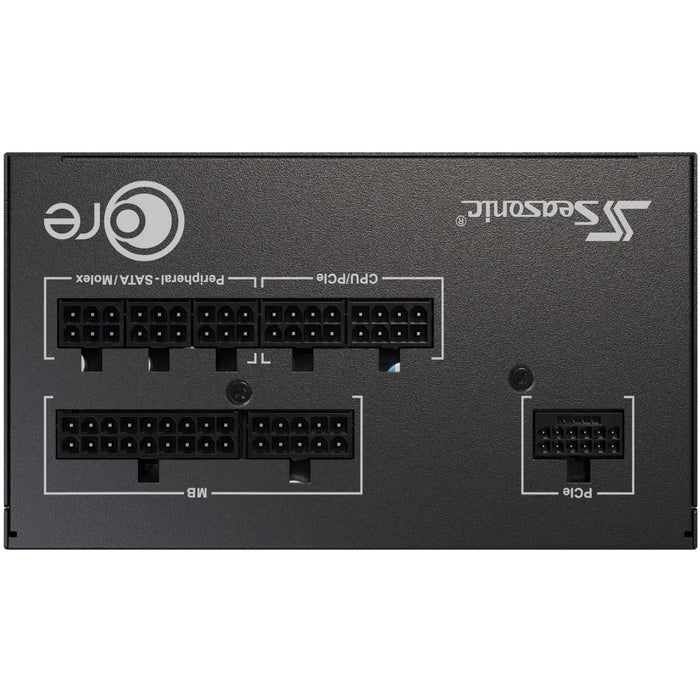

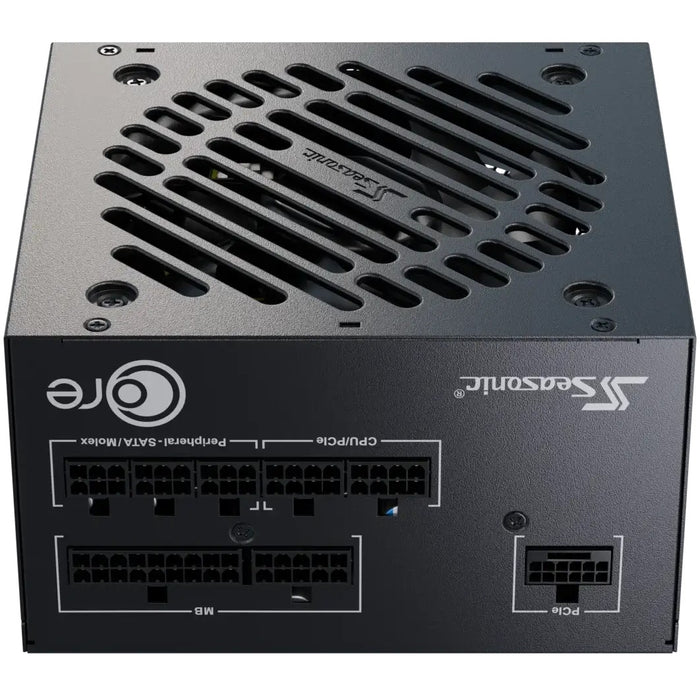

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
Power
Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 9 A
Combined power (+3.3V): 100 W
Combined power (+12V): 648 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage
Ports & interfaces
Number of PATA power connectors: 2
Peripheral (Molex) power connectors (4-pin): 1
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Packaging content
Cables included: AC, CPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA
Certificates
Certification: BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package type: Box
Seasonic Nicht kategorisiert. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex) to SATA 3.3, SATA
Sea Sonic
MBR CODE - SRP-CGX651-A5A32SF
EAN - 4711173878452
