Display
Panel type: ADS
Display diagonal: 33 cm (13")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Feature: Touchscreen
Feature: Multi-touch
Response time: 30 ms
Contrast ratio (typical): 600:1
Contrast ratio (dynamic): 10000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.153 x 0.153 mm
Horizontal scan range: 30 - 81 kHz
Vertical scan range: 48 - 75 Hz
Haze rate: 25%
Pixel frequency (max): 594 MHz
Colour gamut: 45%

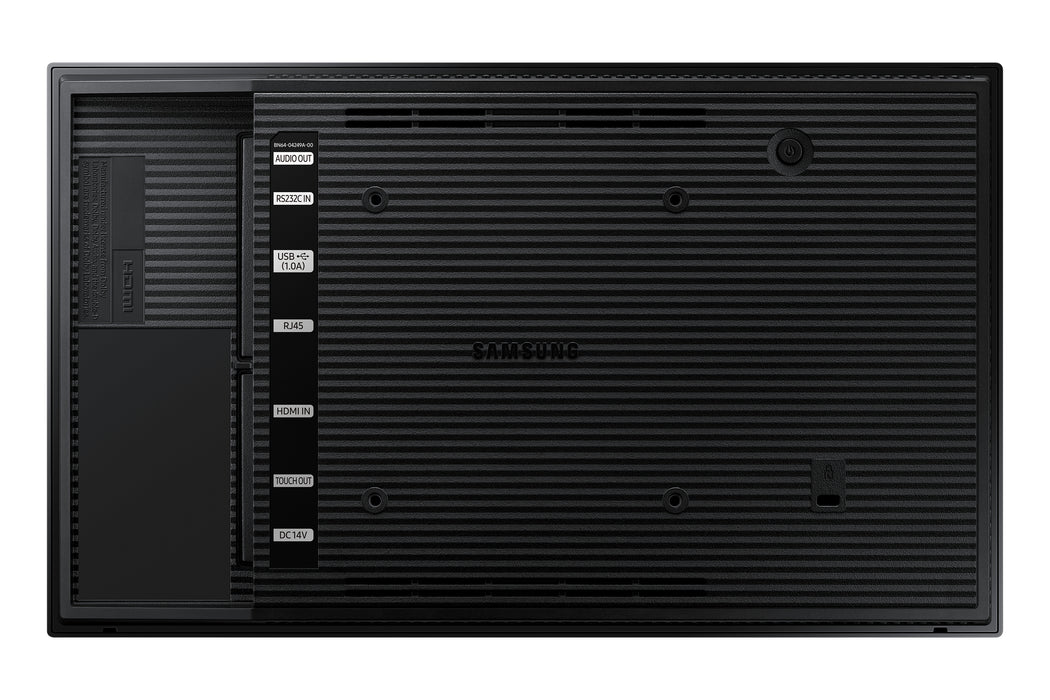

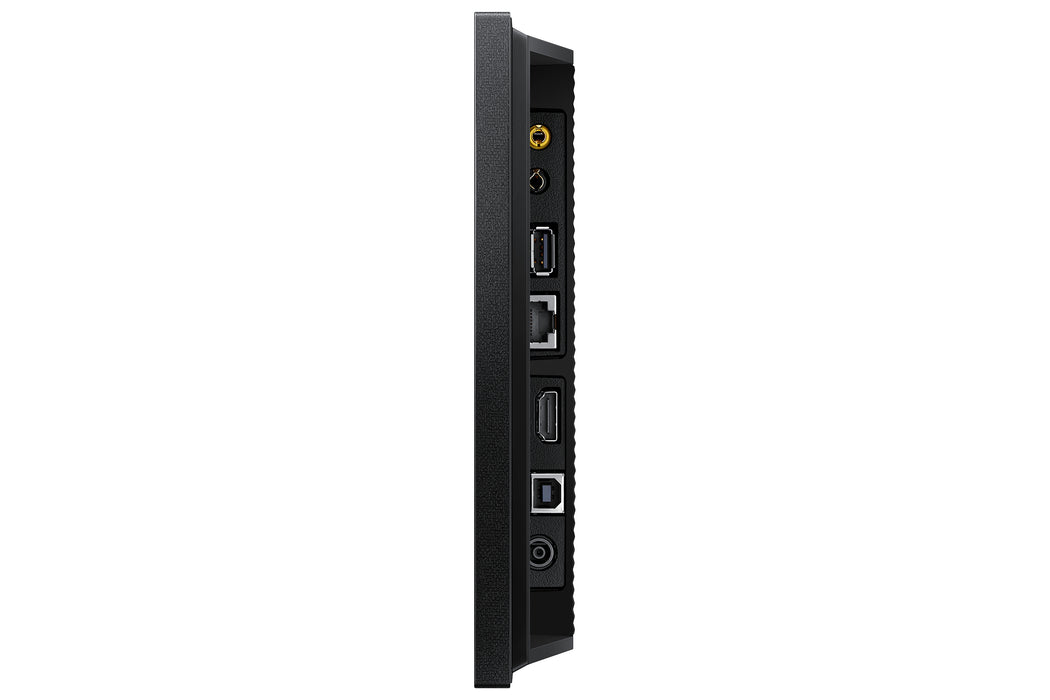

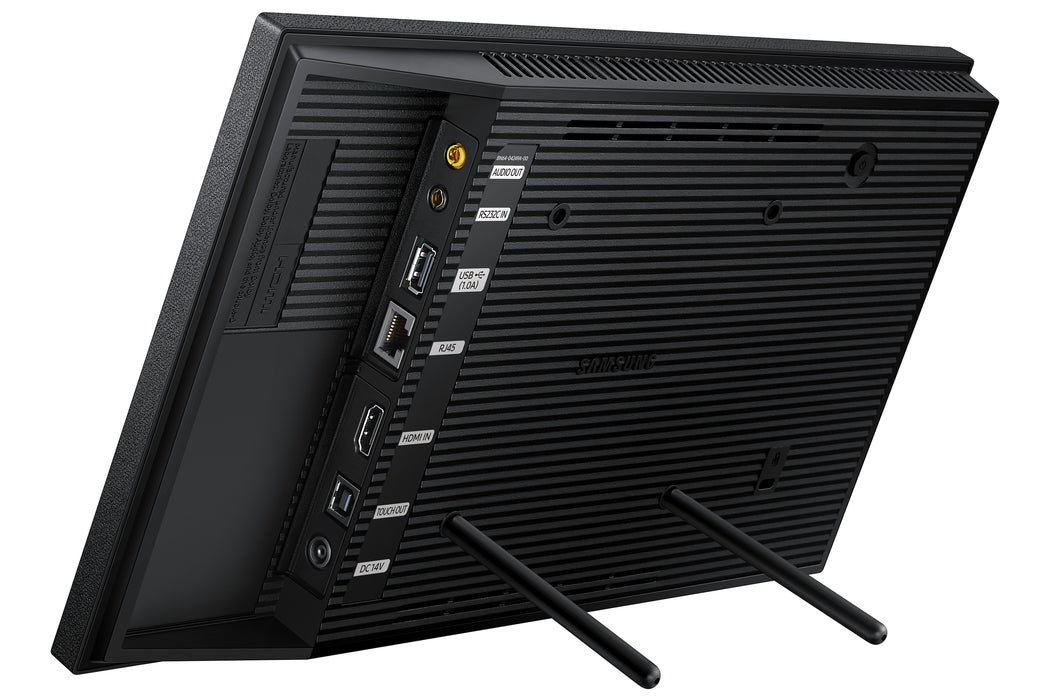

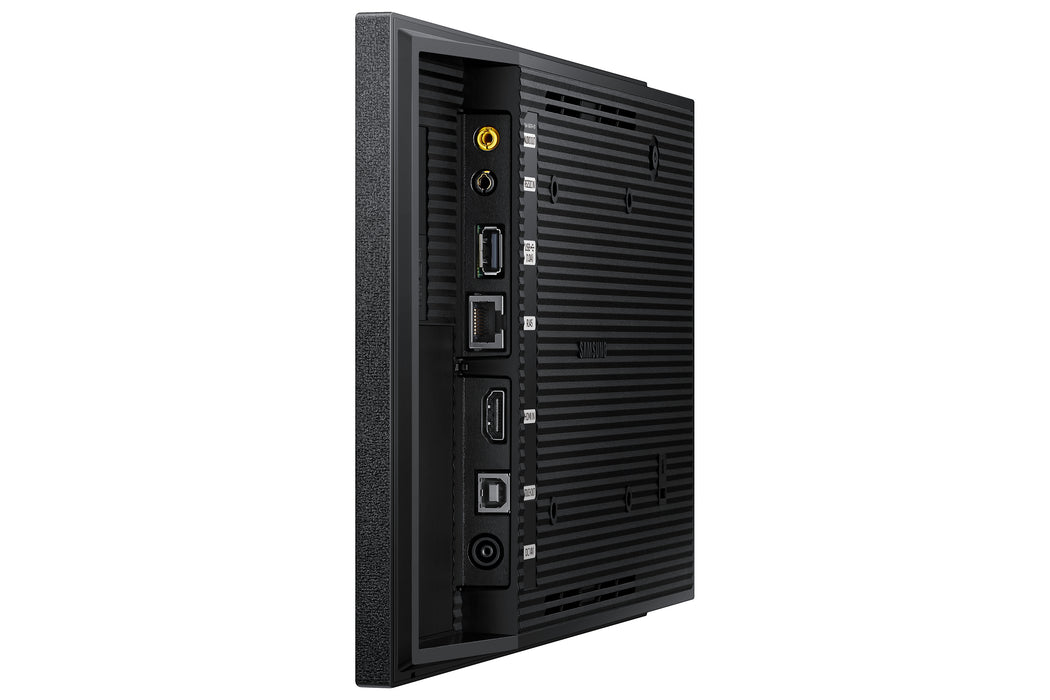

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
Feature: USB port
USB ports quantity: 1
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Feature: RS-232 interface
Feature: DC-in jack
Design
Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.31 cm
Bezel width (side): 1.31 cm
Bezel width (top): 1.31 cm
Bezel colour: Charcoal Black
Performance
Purpose: Universal
Operating hours (hours/days): 16/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 27.5 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 4.0
Weight & dimensions
Display width: 322 mm
Display depth: 29.8 mm
Display height: 193.5 mm
Display weight: 1.1 kg
Packaging data
Package width: 376 mm
Package depth: 248 mm
Package height: 132 mm
Package weight: 2 kg
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Certificates
Certification: Class B60950-1, 62368-160950-1, 62368-1
Technical details
Audio out (mini jack): 1
Other features
Flash memory: 8000 MB
RS-232 input ports: 1
RJ-45 input ports: 1
Samsung QB13R-TM. Product design: Interactive flat panel. Display diagonal: 33 cm (13"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
SAMSUNG
MBR CODE - LH13QBRTMGCXEN
EAN - 8806094965476
