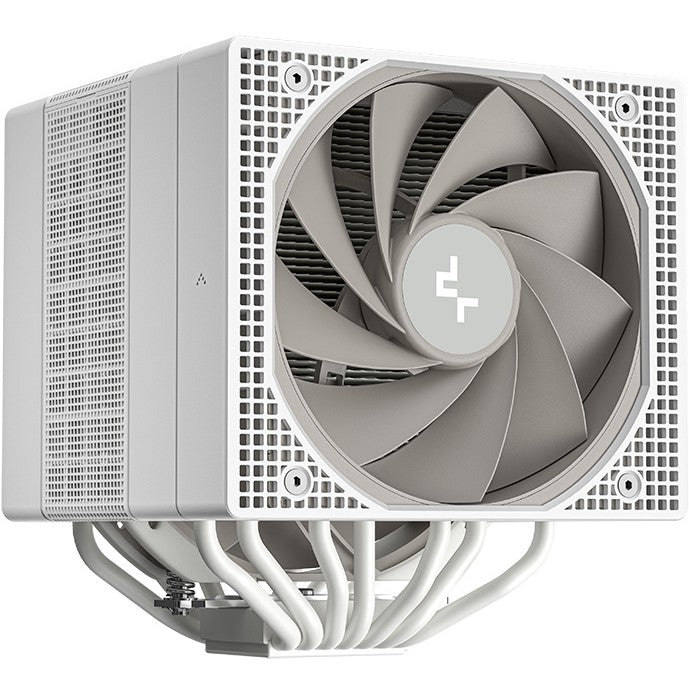

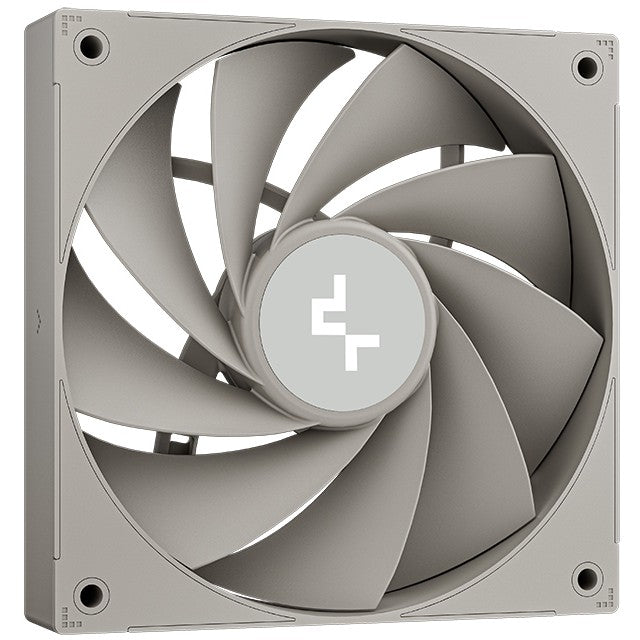

The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.
BE COOL, BE CALM
A key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 120/140 mm
Maximum airflow: 79.1 cfm
Maximum air pressure: 2.44 mmH2O
Fan 2 maximum airflow: 58.06 cfm
Fan 2 maximum air pressure: 2.1 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Fan noise level (min): 22.6 dB
Fan noise level (max): 29.3 dB
Quantity per pack: 1 pc(s)
Pump motor speed (min): 500 RPM
Pump motor speed (max): 1700 RPM
Design
Product colour: Black
Number of fans: 2 fan(s)
Number of heat pipes: 7
Fan connector: 4-pin
Power
Rated voltage: 12 V
Fan power consumption: 6 W
Fan voltage: 12 V
Fan current: 0.3 A
Weight & dimensions
Width: 147 mm
Radiator width: 11 cm
Radiator depth: 14 cm
Radiator height: 16 cm
Depth: 144 mm
Height: 164 mm
Weight: 1.57 kg
Fan dimensions (W x D x H): 140 x 140 x 25 mm
Fan 2 dimensions (W x D x H): 120 x 120 x 25 mm
Heat pipes diameter: 6 mm

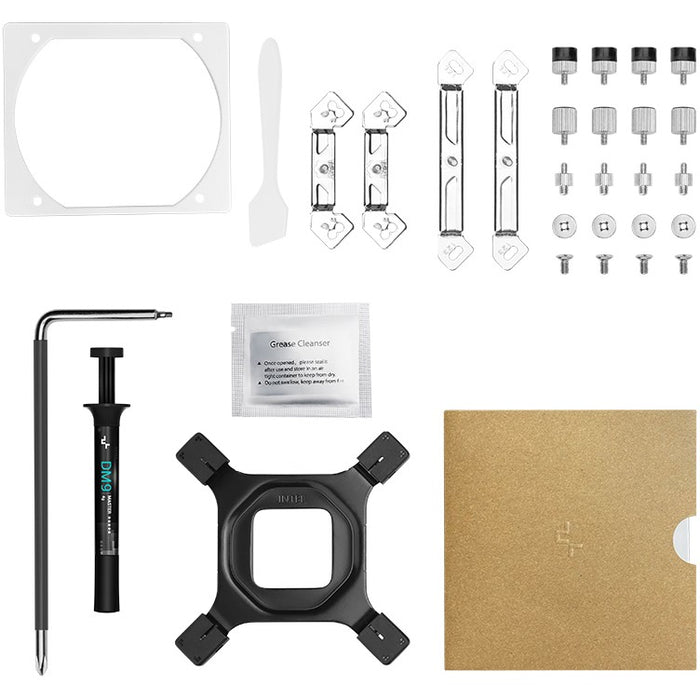

Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Feature: CPU bracket(s)
Feature: Adapter frame included
DeepCool ASSASSIN IV. Type: Air cooler, Fan diameter: 120/140 mm, Maximum air pressure: 2.44 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 147 mm, Depth: 144 mm, Height: 164 mm. Product colour: Black
Deepcool
MBR CODE - R-ASN4-WHNNMT-G
EAN - 6933412728382
