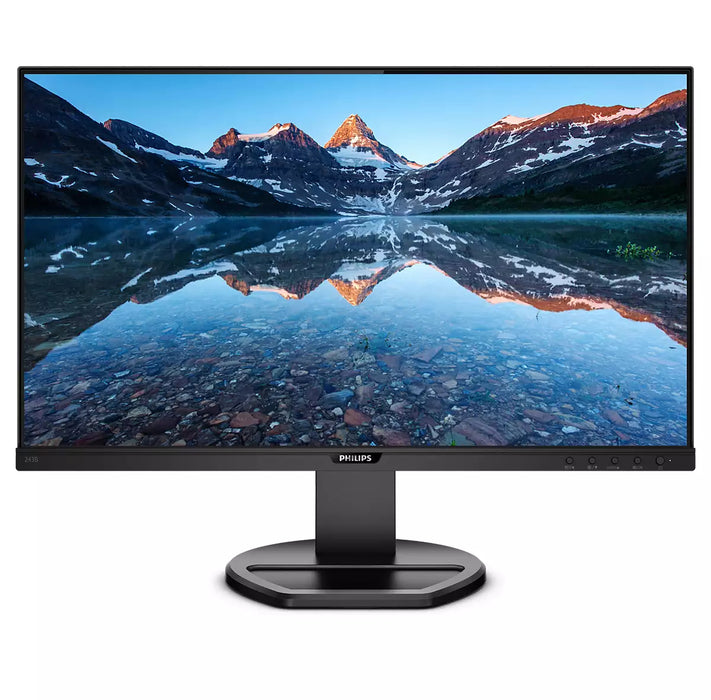

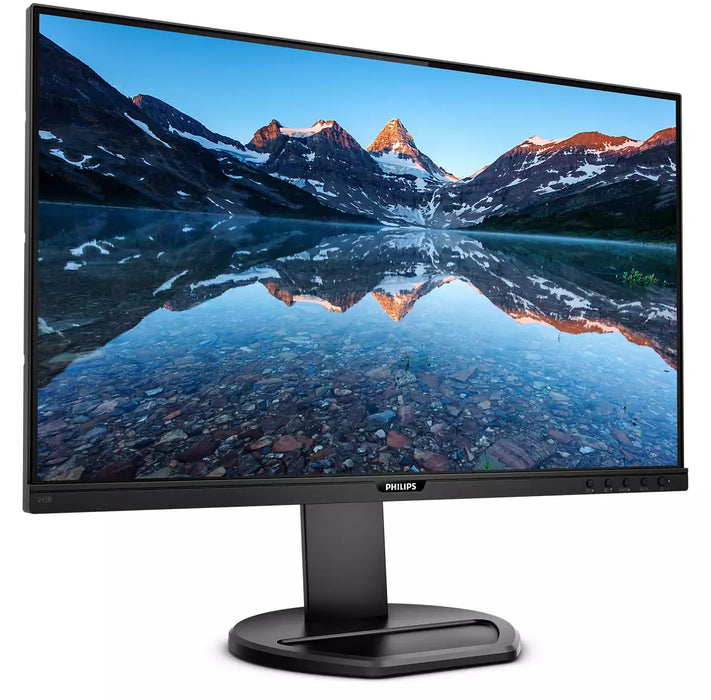

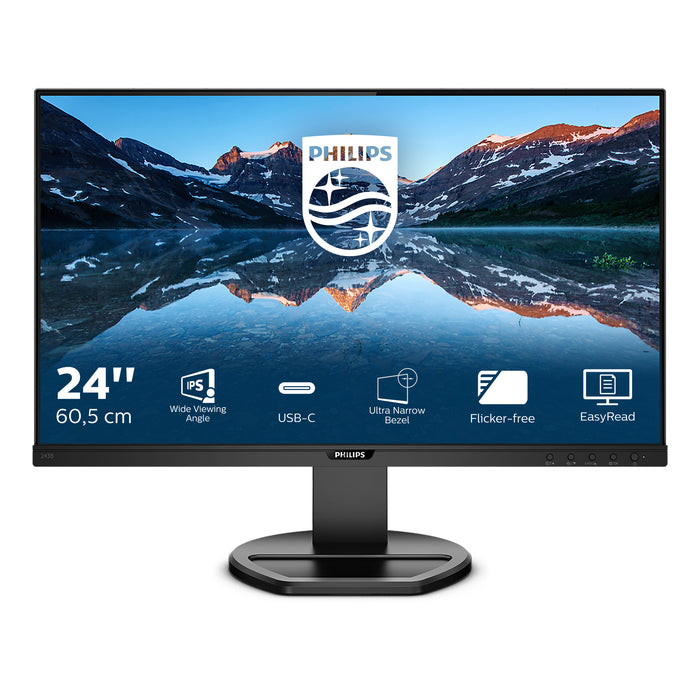

The Philips B line monitor with USB-C docking replaces cable clutter. View Full HD image and re-charge your laptop, all at the same time with a single USB-C cable. SmartErgo base, Flicker-free and LowBlue mode make work easy-on-the eyes.
Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Backlight type: W-LED
Display brightness (typical): 250 cd/m²
Response time: 4 ms
Display surface: Matt
Screen shape: Flat
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Dynamic contrast ratio marketing name: SmartContrast
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.275 x 0.275 mm
Pixel density: 93 ppi
Horizontal scan range: 30 - 85 kHz
Vertical scan range: 48 - 75 Hz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Digital horizontal frequency: 30 - 85 kHz
Digital vertical frequency: 48 - 75 Hz
Feature: DDC/CI
Colour gamut standard: sRGB
Colour gamut: 90%
sRGB coverage (typical): 104%
NTSC coverage (typical): 90%
Performance
Component video sync: Separate sync, Sync-on-green (SOG)
Feature: Flicker-free technology
Feature: Low Blue Light technology
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Feature: Mac operating systems supported
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Front bezel colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-C
Number of upstream ports: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 65 W
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: Headphone out
Feature: PC Audio in
Feature: HDCP
Feature: AC (power) in
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15 cm
Feature: Pivot
Pivot angle: 90 - 90°
Feature: Swivelling
Swivel angle range: -175 - 175°
Feature: Tilt adjustment
Tilt angle range: -5 - 30°
Feature: On Screen Display (OSD)
Feature: Plug and Play
LED indicators: Operation, Stand-by
Power
Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 17.1 W
Power consumption (standby): 0.3 W
Power consumption (PowerSave): 12.8 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 337895
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3658 m
Non-operating altitude: 0 - 12192 m
Weight & dimensions
Width (with stand): 541 mm
Depth (with stand): 216 mm
Height (with stand): 522 mm
Weight (with stand): 5.19 kg
Width (without stand): 541 mm
Depth (without stand): 63 mm
Height (without stand): 332 mm
Weight (without stand): 3.57 kg
Packaging data
Package width: 600 mm
Package depth: 198 mm
Package height: 475 mm
Package weight: 6.89 kg
Package type: Box
Packaging content
Feature: Stand included
Cables included: AC, DisplayPort, HDMI, USB Type-C
Feature: Manual
Bundled software: SmartControl
Sustainability
Sustainability certificates: ENERGY STAR
Other features
Feature: On/off switch
USB Power Delivery revision: 3.0
Recyclable packaging material: 100%
Heavy metals free: Hg (mercury), Pb (lead)
Feature: EasyRead mode
Compliance certificates: RoHS
Mean time between failures (MTBF): 70000 h
Certification: CE Mark, FCC Class B, SEMKO, CU-EAC, TUV Ergo, TUV/GS, EPA, ICES-003, UKRAINIAN, CB
Recycling data
Post-consumer recycled plastic: 85%
Logistics data
Harmonized System (HS) code: 85285210
Philips B Line 243B9/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Philips
MBR CODE - 243B9/00
EAN - 8712581761981
