A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.
Display
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Backlight type: W-LED
Touchscreen type: Tabletop
Touchscreen technology: Capacitive
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Display brightness: 250 cd/m²
Response time: 5 ms
Display surface: Gloss
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Dynamic contrast ratio marketing name: SmartContrast
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.275 x 0.275 mm
Pixel density: 93 ppi
Horizontal scan range: 30 - 85 kHz
Vertical scan range: 48 - 75 Hz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Digital horizontal frequency: 30 - 85 kHz
Digital vertical frequency: 48 - 75 Hz
Feature: Sync-on-green (SOG)
Display diagonal (metric): 60.5 cm
Feature: DDC/CI
Surface hardness: 7H
Colour gamut standard: sRGB
Colour gamut: 72%
NTSC coverage (typical): 72%
Feature: Separate H/V sync
Feature: Display sRGB
Performance
Component video sync: Separate sync, Sync-on-green (SOG)
Feature: Flicker-free technology
Feature: Low Blue Light technology
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Home
Product colour: Black
Front bezel colour: Black
Feet colour: Black

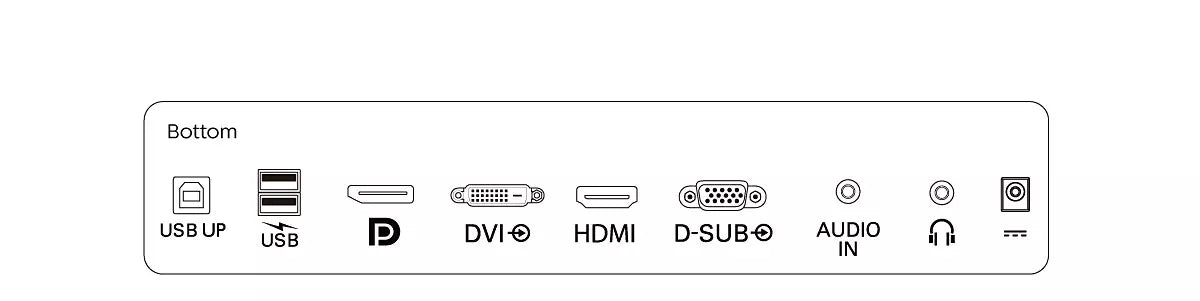

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1.4
HDMI version: 1.4
DisplayPorts quantity: 1.2
DisplayPort version: 1.2
Feature: Audio input
Feature: Headphone out
Headphone outputs: 1
Feature: PC Audio in
Feature: HDCP
HDCP version: 1.4
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 18.4 cm
Feature: Tilt adjustment
Tilt angle range: -5 - 90°
Number of OSD languages: 20
Feature: Plug and Play
LED indicators: Power, Stand-by
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 16 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Power consumption (PowerSave): 11.5 W
AC input voltage: 100–240
AC input frequency: 50-60 Hz
Power supply type: AC
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 399649
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3658 m
Non-operating altitude: 0 - 12192 m
Weight & dimensions
Width (with stand): 554 mm
Depth (with stand): 227 mm
Height (with stand): 413 mm
Weight (with stand): 8.15 kg
Width (without stand): 554 mm
Depth (without stand): 50 mm
Height (without stand): 338 mm
Weight (without stand): 4.86 kg
Packaging data
Package width: 620 mm
Package depth: 168 mm
Package height: 433 mm
Package weight: 11.1 kg
Package type: Box
Packaging content
Feature: Stand included
Cables included: VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Feature: Manual
Bundled software: SmartControl
Sustainability
Sustainability certificates: ENERGY STAR
Doesn't contain: PVC/BFR, Mercury
Other features
International Protection (IP) code: IP54
Exterior finish type: Textured
Package dimensions (WxDxH): 620 x 433 x 168 mm
Display viewable area (HxV): 527 x 296.5 mm
Picture enhancement: SmartImage
Recyclable packaging material: 100%
Mobile operating systems supported: Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
Heavy metals free: Hg (mercury)
Folding angle: 70°
Feature: LowBlue mode
Energy efficiency class (old): A
Compliance certificates: RoHS
Recommended resolution: 1920 x 1080 @ 60 Hz
Regulatory Approvals: CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; cETLus
Touch method: Stylus, Finger, Glove
Feature: EasyRead mode
Mean time between failures (MTBF): 70000 h
Certification: CE Mark, FCC Class B, SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC
Logistics data
Harmonized System (HS) code: 85285210

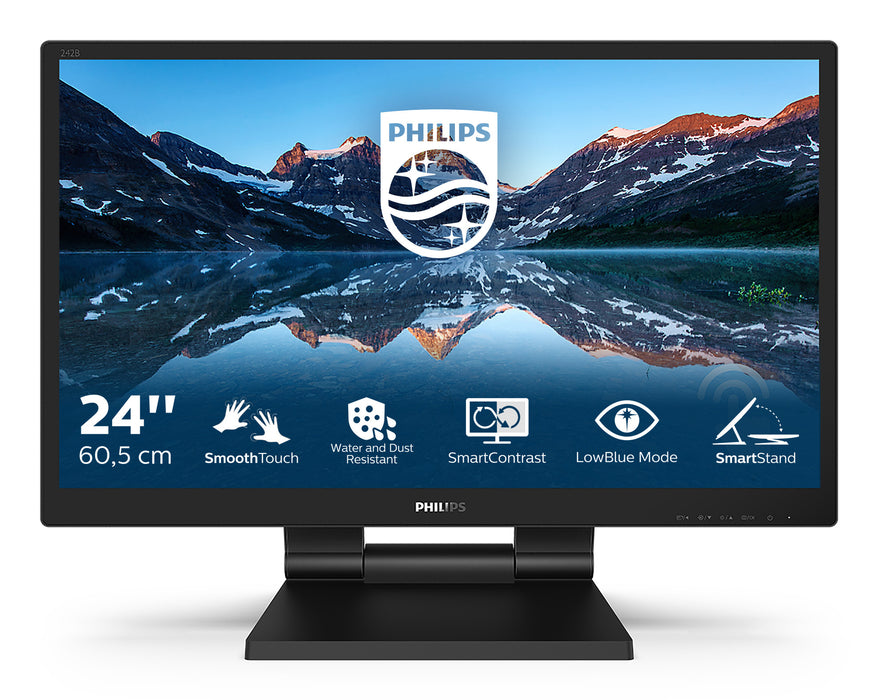

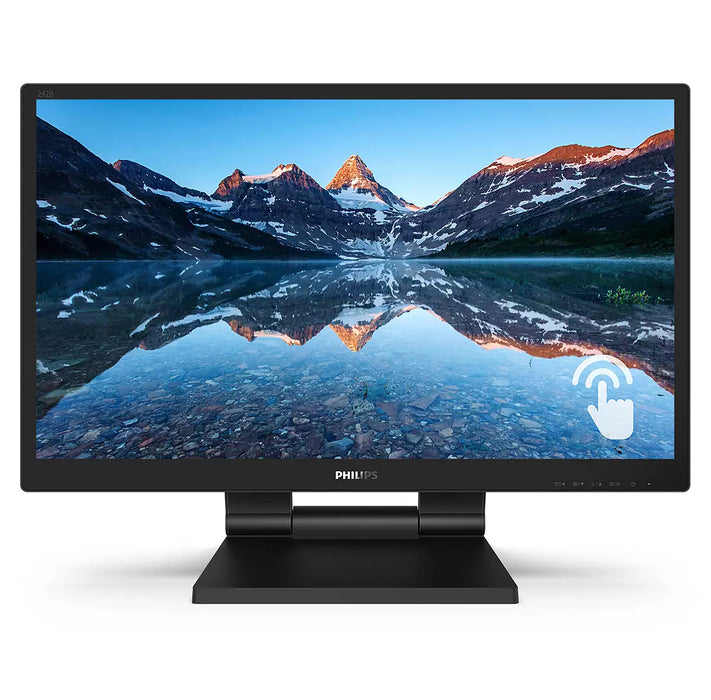

Philips LCD monitor with SmoothTouch 242B9T/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Gloss, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Philips
MBR CODE - 242B9T/00
EAN - 8712581756802
