Display
Display diagonal: 35.6 cm (14")
Display resolution: 2240 x 1400 pixels
HD type: 2.2K
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (peak): 375 cd/m²
Display brightness (typical): 300 cd/m²
Response time: 8 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1500:1
Contrast ratio (dynamic): 3000000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Response time (fast): 6 ms
Pixel pitch: 0.135 x 0.135 mm
Pixel density: 104 ppi
Viewable size, horizontal: 30.1 cm
Viewable size, vertical: 18.9 cm
Colour depth: 8 bit
Colour gamut standard: sRGB
Colour gamut: 100%
sRGB coverage (typical): 100%
Performance
Feature: Low Blue Light technology
Design
Product colour: Black
Colour name: Raven Black

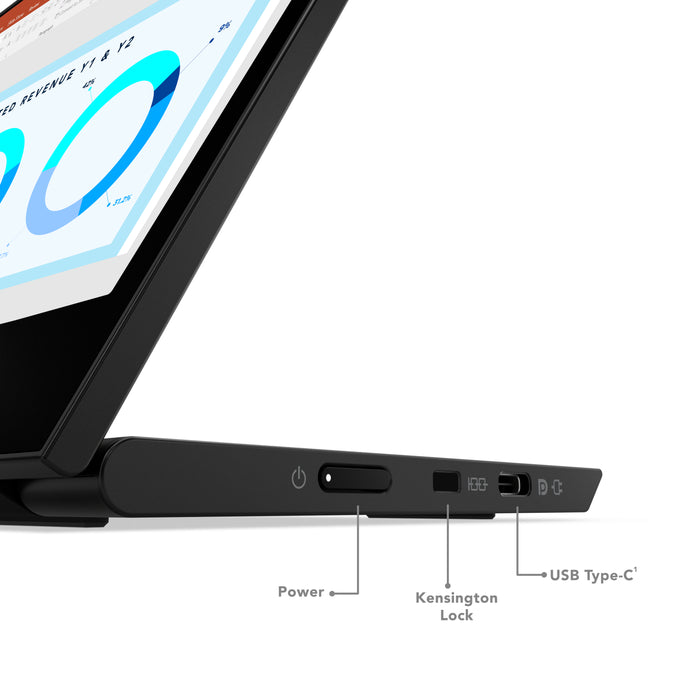

Ports & interfaces
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 1.1 cm
Feature: Tilt adjustment
Tilt angle range: -5 - 95°
Feature: On Screen Display (OSD)
Power
Power consumption (typical): 6 W
Power consumption (max): 7.5 W
Power consumption (off): 0.5 W
Power supply type: External
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 314.4 mm
Depth (with stand): 106.4 mm
Weight (with stand): 600 g
Width (without stand): 314.4 mm
Depth (without stand): 4.6 mm
Height (without stand): 215.3 mm
Weight (without stand): 400 g
Bezel width (side): 4.9 mm
Bezel width (top): 4.9 mm
Bezel width (bottom): 1.89 cm
Packaging data
Package width: 384 mm
Package depth: 76 mm
Package height: 277 mm
Package weight: 1.8 kg
Package type: Box
Packaging content
Feature: Stand included
Cables included: USB Type-C
Feature: Quick start guide
Lenovo ThinkVision M14d. Display diagonal: 35.6 cm (14"), Display resolution: 2240 x 1400 pixels, HD type: 2.2K, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black
Lenovo
MBR CODE - 63AAUAT6WL
EAN - 0196380023057
Display diagonal | 35.6 cm (14") |
Display resolution | 2240 x 1400 pixels |
HD type | 2.2K |
Native aspect ratio | 16:10 |
Display technology | LED |
Panel type | IPS |
LED backlight | Yes |
Backlight type | W-LED |
Touchscreen | No |
Display brightness (peak) | 375 cd/m² |
Display brightness (typical) | 300 cd/m² |
Response time | 8 ms |
Anti-glare screen | Yes |
Screen shape | Flat |
Contrast ratio (typical) | 1500:1 |
Contrast ratio (dynamic) | 3000000:1 |
Maximum refresh rate | 60 Hz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Response time (fast) | 6 ms |
Pixel pitch | 0.135 x 0.135 mm |
Pixel density | 104 ppi |
Viewable size, horizontal | 30.1 cm |
Viewable size, vertical | 18.9 cm |
Colour depth | 8 bit |
Colour gamut standard | sRGB |
Colour gamut | 100% |
sRGB coverage (typical) | 100% |
Low Blue Light technology | Yes |
Built-in speaker(s) | No |
Built-in microphone | No |
Built-in camera | No |
Product colour | Black |
Colour name | Raven Black |
Built-in USB hub | No |
USB Type-C downstream ports quantity | 1 |
USB Type-C DisplayPort Alternate Mode | Yes |
HDMI | No |
Ethernet LAN | No |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Height adjustment | Yes |
Adjustable height (max) | 1.1 cm |
Tilt adjustment | Yes |
Tilt angle range | -5 - 95° |
On Screen Display (OSD) | Yes |
Power consumption (typical) | 6 W |
Power consumption (max) | 7.5 W |
Power consumption (off) | 0.5 W |
Power supply type | External |
Energy efficiency scale | A to G |
Width (with stand) | 314.4 mm |
Depth (with stand) | 106.4 mm |
Weight (with stand) | 600 g |
Width (without stand) | 314.4 mm |
Depth (without stand) | 4.6 mm |
Height (without stand) | 215.3 mm |
Weight (without stand) | 400 g |
Bezel width (side) | 4.9 mm |
Bezel width (top) | 4.9 mm |
Bezel width (bottom) | 1.89 cm |
Package width | 384 mm |
Package depth | 76 mm |
Package height | 277 mm |
Package weight | 1.8 kg |
Package type | Box |
Stand included | Yes |
Cables included | USB Type-C |
Quick start guide | Yes |
Certification | Energy Star Certified, EPEAT Silver, RoHS Eyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Low Blue Light, TÜV Rheinland Flicker Free |
