Expertly optimized, reliable, and compact, the Intel® Arc™ Pro B50 GPU delivers improved performance with large amounts of dedicated memory, graphics power, and ISV certifications - ideal for both routine and ambitious projects.
Tailored for modern professional projects like AI, generative design, 3D simulations, ray tracing, and editing, it’s built to help boost the quality and speed of your software, with support for AI-driven innovation, enhancing creativity and design.

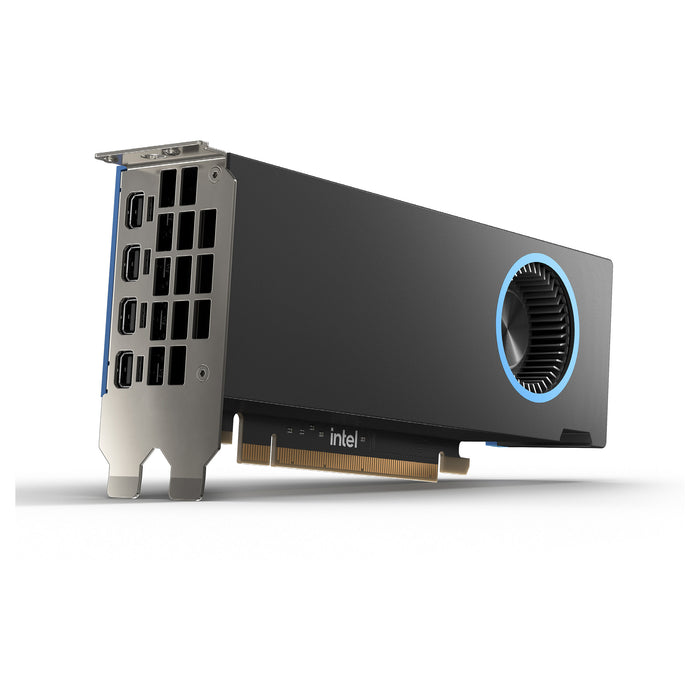

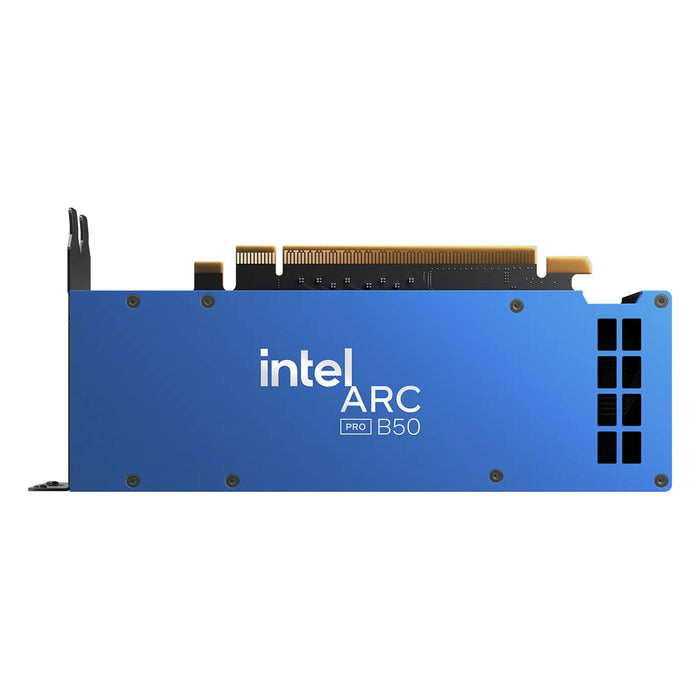

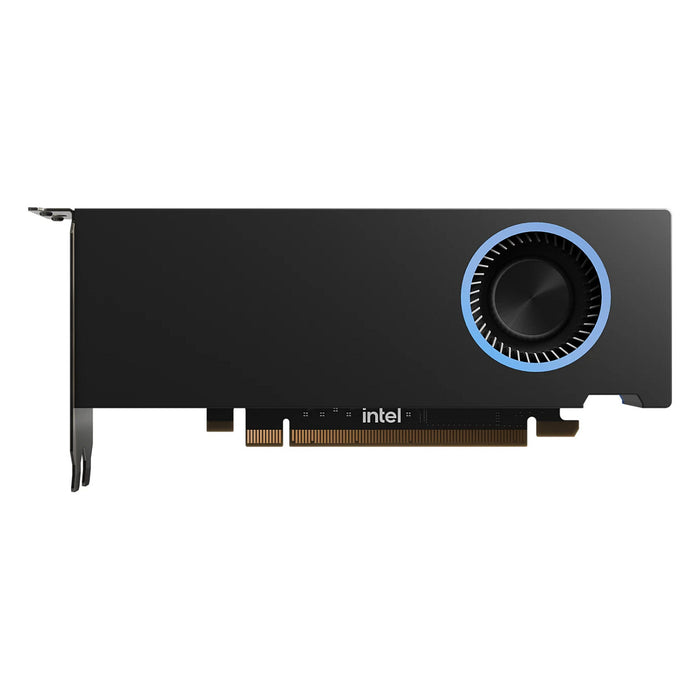

Equipped with a specialized, robust driver for software like AutoCAD, Solidworks, Maya, and Photoshop, it helps ensure reliable acceleration. The dual-slot, half-length, half-height GPU is designed for professional workstations, featuring dedicated hardware for AI, Ray Tracing, and Media Encoding. It supports up to four HDR displays via mini-DP 2.1 connectors.
It’s perfect for today’s professional users.
Processor
Graphics processor family: Intel
Processor frequency: 1700 MHz
Processor boost clock speed: 2600 MHz
Maximum resolution: 7680 x 4320 pixels
Maximum displays per videocard: 4
Memory
Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 14 Gbit/s
Memory bandwidth (max): 224 GB/s
Ports & interfaces
Interface type: PCI Express 5.0
DisplayPorts quantity: 4
DisplayPort version: 2.1
Performance
Peak Single Precision Matrix (FP32) performance: 10.65 TFLOPS
Peak INT8 Performance: 170 TOPs
DirectX version: 12 Ultimate
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 128
Xe-cores: 16
Video formats supported: AV1, H.264, H.265, HEVC/H.265
Design
Cooling type: Active
Number of fans: 1 fan(s)
Form factor: Half-Height/Half-Length (HH/HL)
Number of slots: 2
Product colour: Black, Blue
Power
Minimum system power supply: 280 W
Power consumption (typical): 70 W
System requirements
Windows operating systems supported: Windows 10, Windows 11
Feature: Linux operating systems supported
Weight & dimensions
Weight: 330 g
Length: 168 mm
Depth: 69 mm
Intel Arc Pro B50. Graphics processor family: Intel, Processor frequency: 1700 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 1 fan(s)
