Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 849.6 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 70.8 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 90%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces

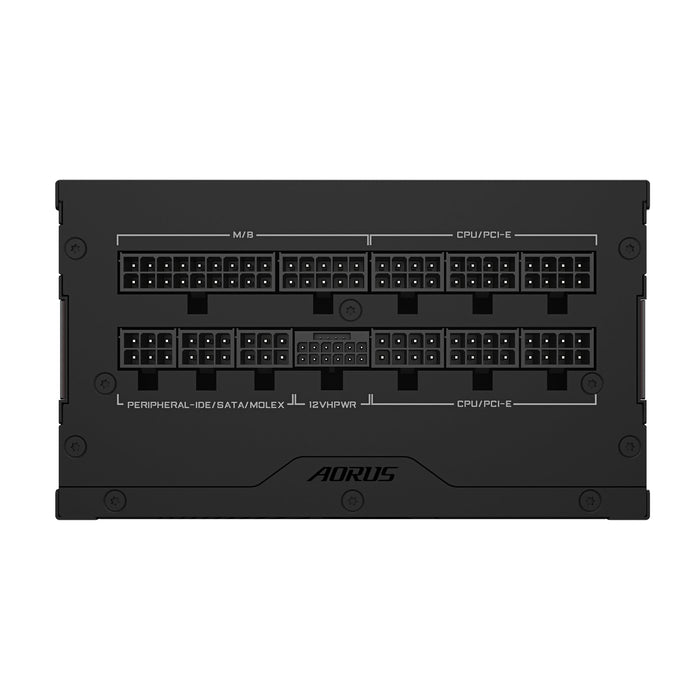

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 6
Feature: CPU power connector (4+4 pin)
Feature: ATX power connector (20+4 pin)
Floppy drive power connector: 2
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Ball bearing
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

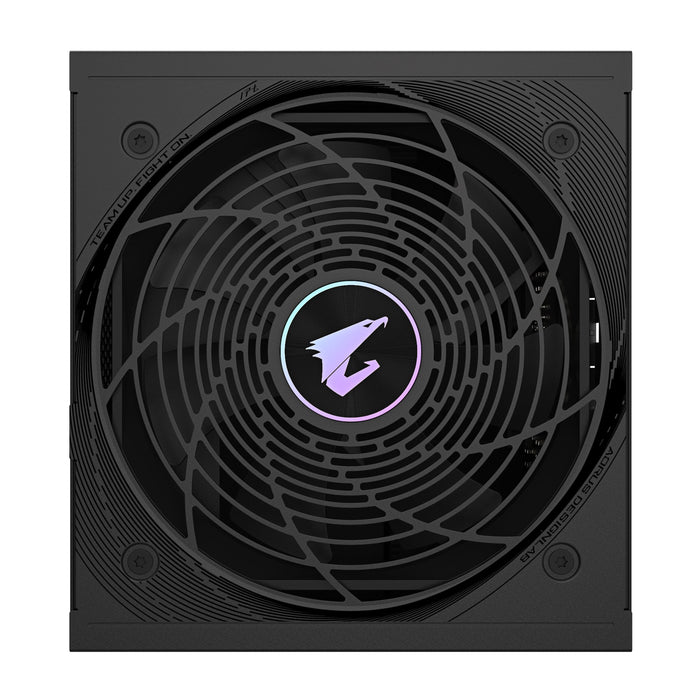

Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 2.67 kg
Packaging data
Package width: 340 mm
Package depth: 206 mm
Package height: 120 mm
Package weight: 3.3 kg
Package type: Box
Logistics data
Warranty period: 10 year(s)
GIGABYTE AORUS ELITE P850W Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Gigabyte
MBR CODE - GP-AE850PM PG5
EAN - 4719331554262
