Power
Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 8-4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 650 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54.17 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

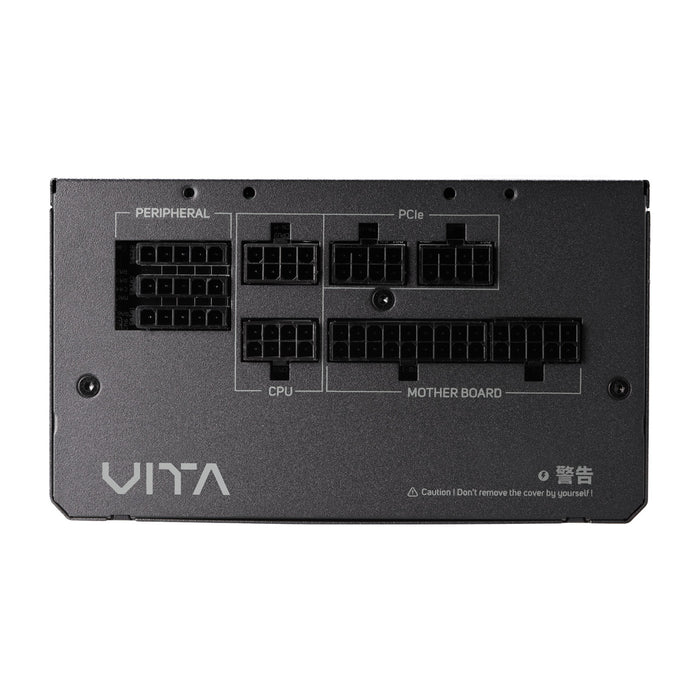

Ports & interfaces
Motherboard power connector: 20+4 pin ATX

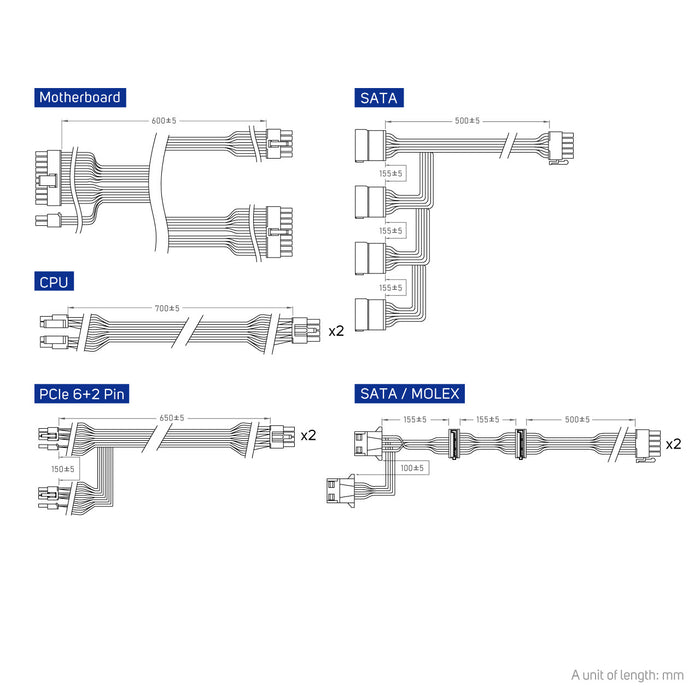

Motherboard power cable length: 60 cm
Number of SATA power connectors: 8
SATA power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 4
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Bearing technology: HYB
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Packaging content
Cables included: CPU, Peripheral (Molex), SATA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm

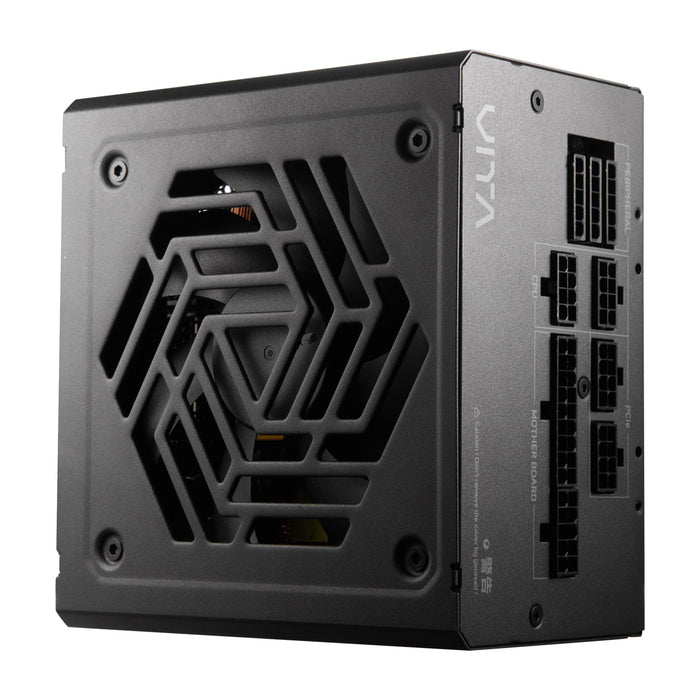

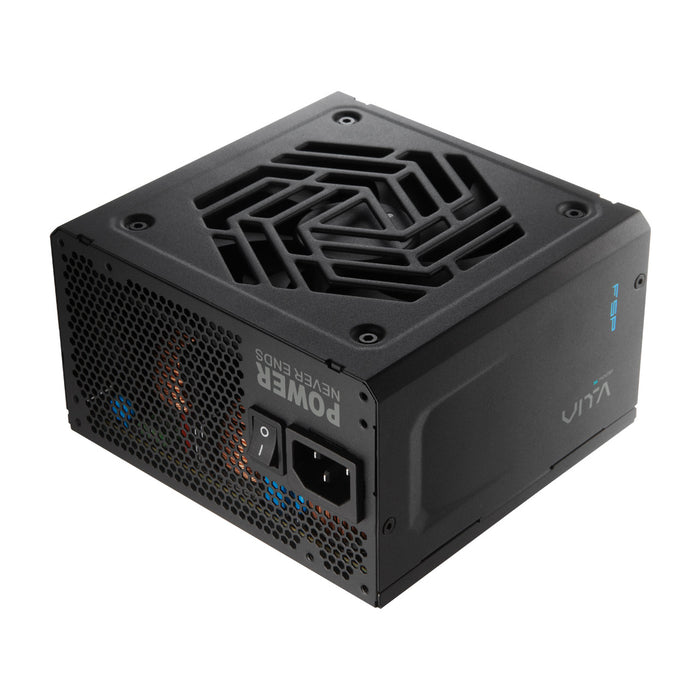

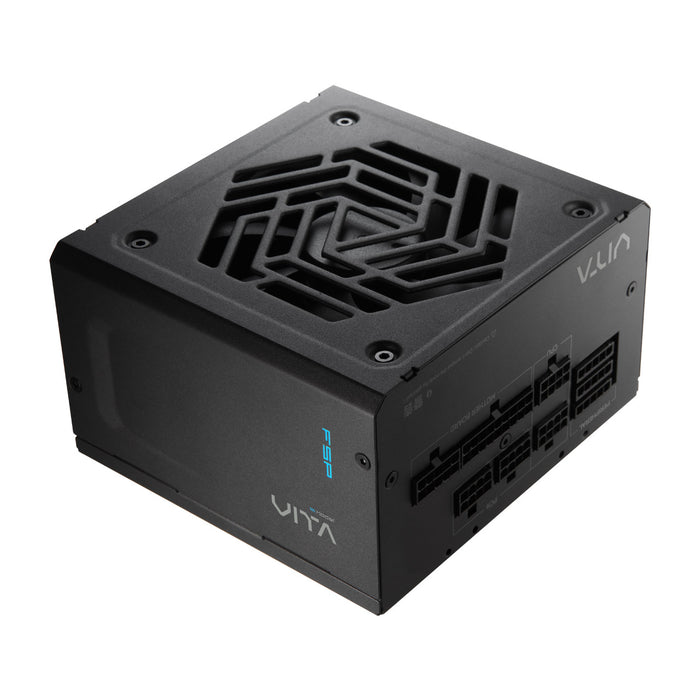

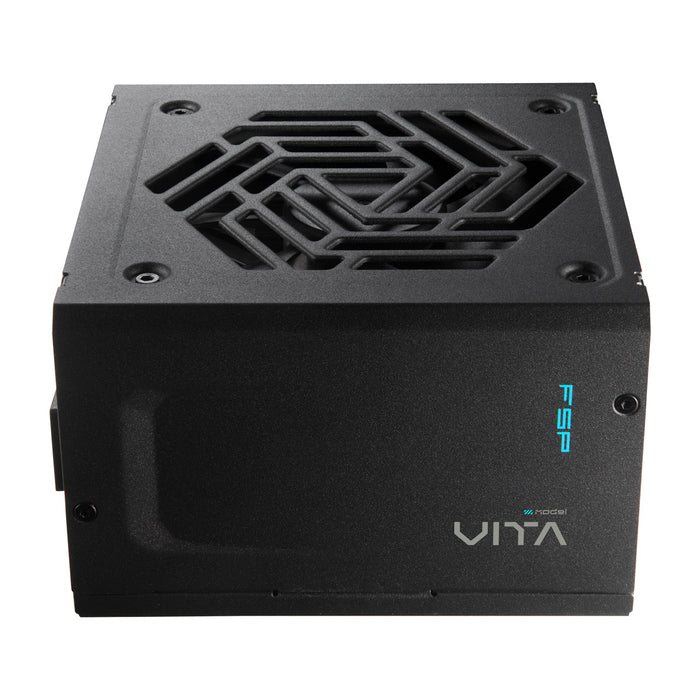

FSP VITA GM 650W. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, Peripheral (Molex), SATA
FSP
MBR CODE - PPA6506602
EAN - 4713224529580
Total power | 650 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 8-4 A |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 100 W |
Combined power (+12V) | 650 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 54.17 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Efficiency | 90% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 60 cm |
Number of SATA power connectors | 8 |
SATA power cable length | 500 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
PCI Express power connectors (6+2 pin) | 4 |
CPU power connector (4+4 pin) | Yes |
CPU power cable length | 70 cm |
Cabling type | Fully-Modular |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Power supply unit (PSU) form factor | ATX |
ATX version | 3.1 |
EPS version | 2.92 |
Bearing technology | HYB |
Product colour | Black |
Cooling type | Active |
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
Cables included | CPU, Peripheral (Molex), SATA |
Width | 150 mm |
Depth | 140 mm |
Height | 86 mm |
