Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12-6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 500 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 45 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.0
Bearing technology: Ball bearing
Design
Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 100 mm
Depth: 125 mm
Height: 63.5 mm

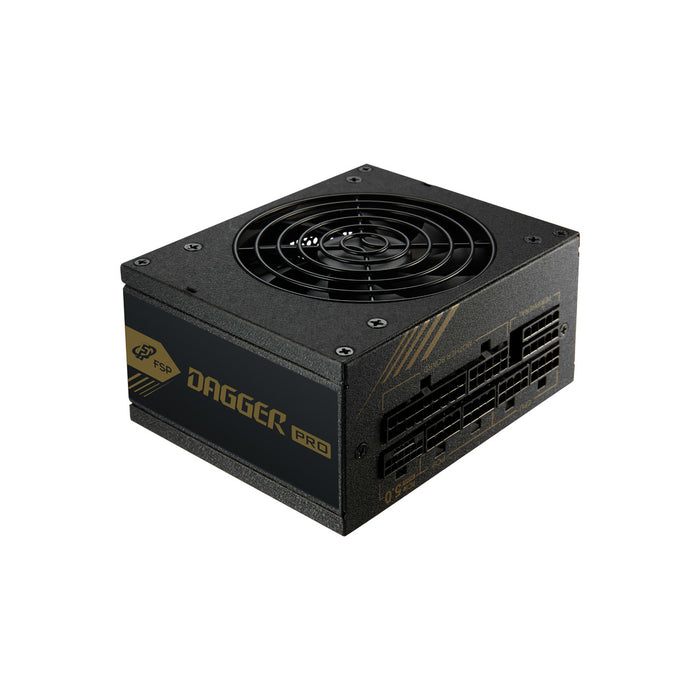

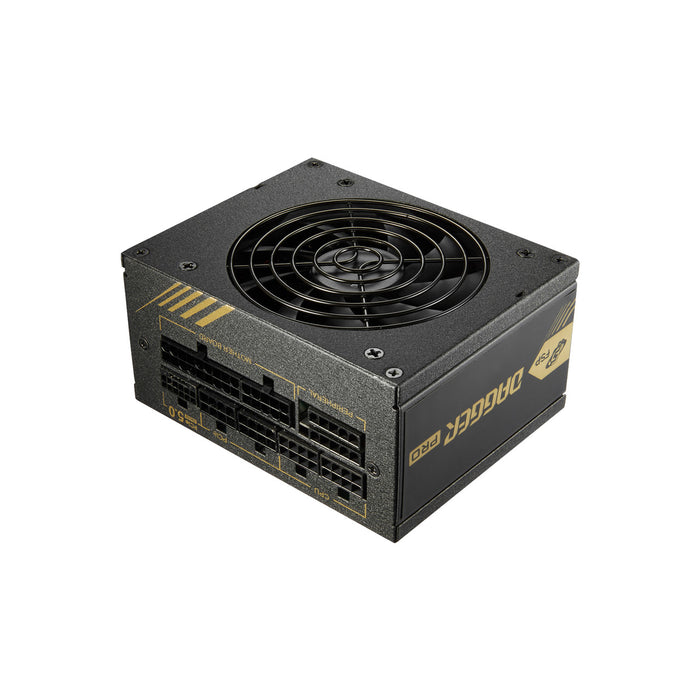

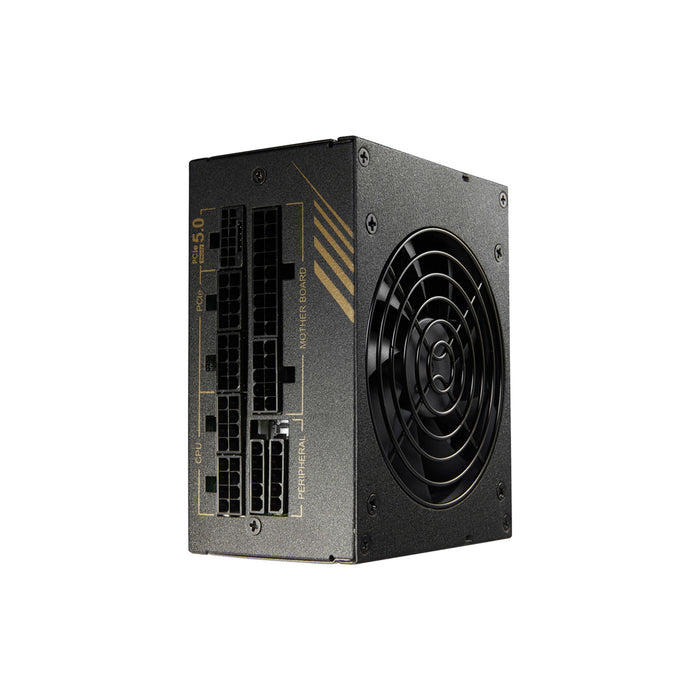

FSP DAGGER PRO ATX3.0(PCIe5.0) 850W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 450 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
FSP
MBR CODE - PPA8503900
EAN - 4713224527968
Total power | 850 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 12-6 A |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 850 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 70.83 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
Efficiency | 90% |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Motherboard power connector | 20+4 pin ATX |
Motherboard power cable length | 35 cm |
Number of SATA power connectors | 6 |
SATA power cable length | 450 mm |
Peripheral (Molex) power connectors (4-pin) | 2 |
PCI Express power connectors (6+2 pin) | 2 |
PCI Express power connectors (12+4 pin) | 1 |
PCI Express power connectors (12+4 pin) cable length | 500 mm |
CPU power connector (4+4 pin) | Yes |
CPU power cable length | 45 cm |
Cabling type | Fully-Modular |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
Power supply unit (PSU) form factor | SFX |
ATX version | 3.0 |
Bearing technology | Ball bearing |
Product colour | Black |
Cooling type | Active |
Fan diameter | 9.2 cm |
Number of fans | 1 fan(s) |
Fan location | Top |
On/off switch | Yes |
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Width | 100 mm |
Depth | 125 mm |
Height | 63.5 mm |
