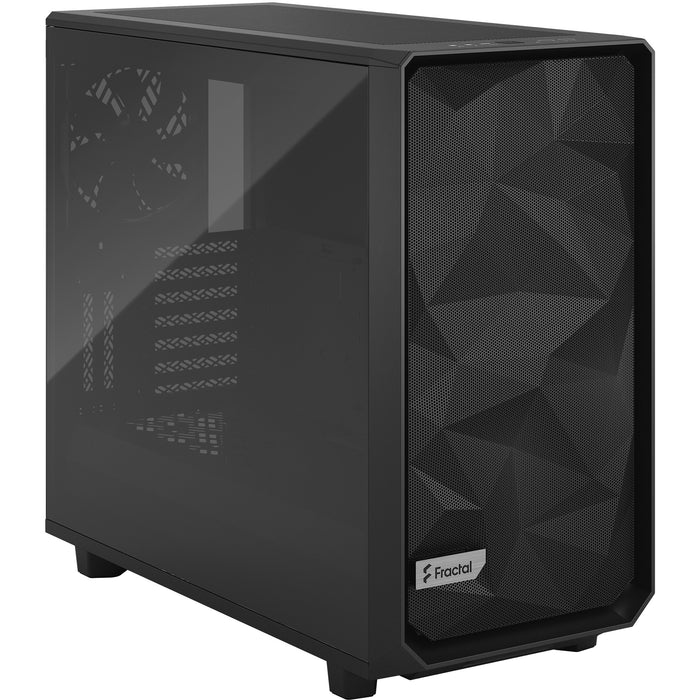

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

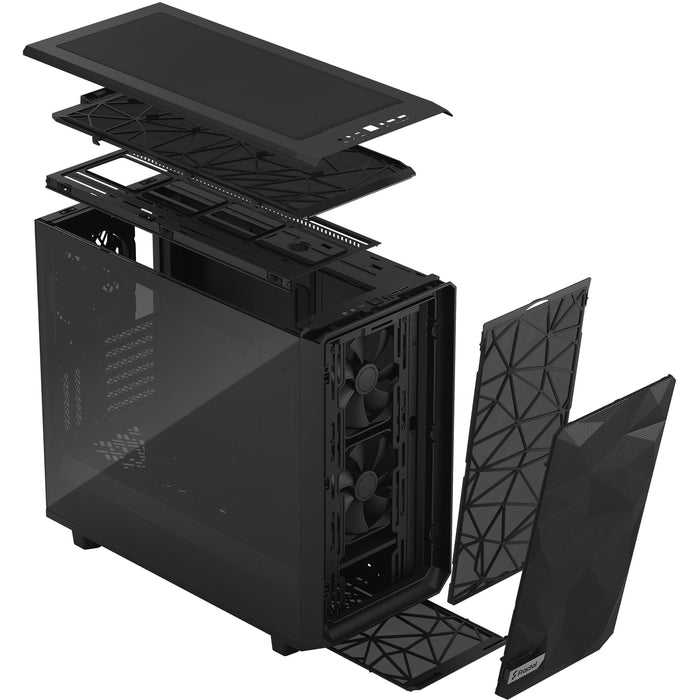

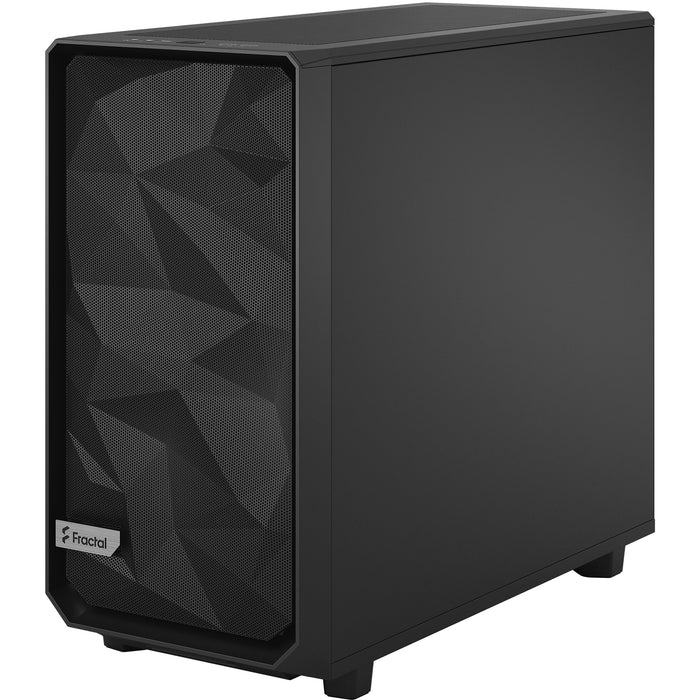

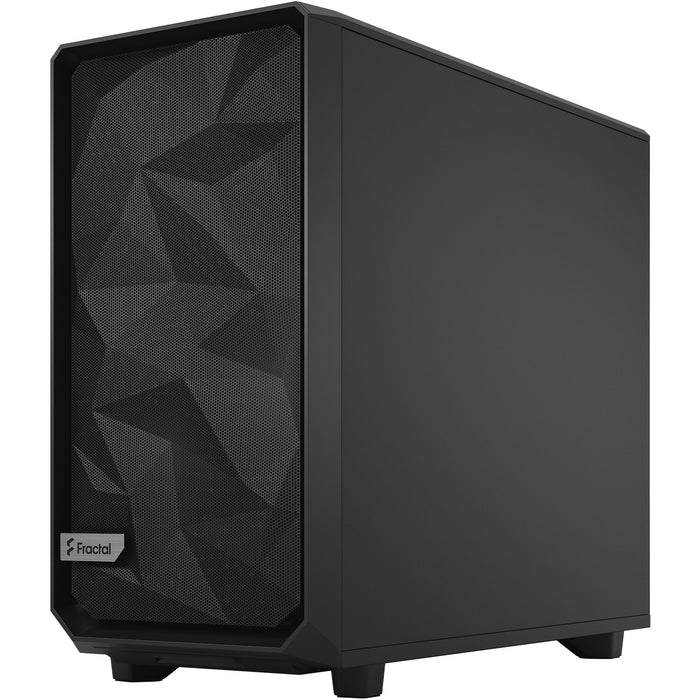

Detachable front filter
- New front nylon filter that can be removed for increased airflow

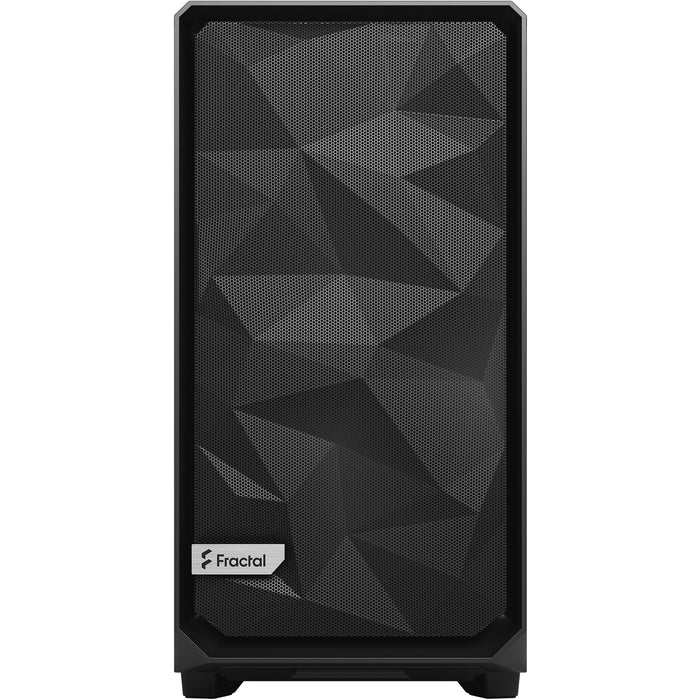

- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage

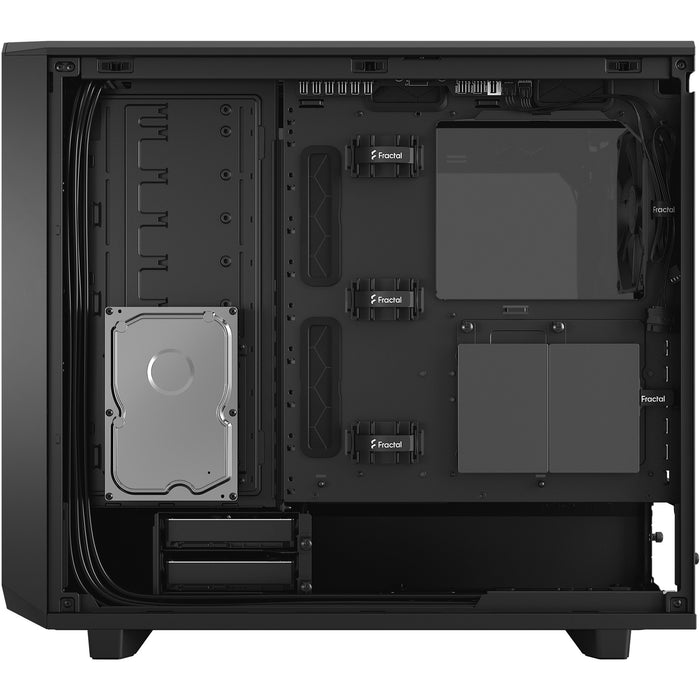

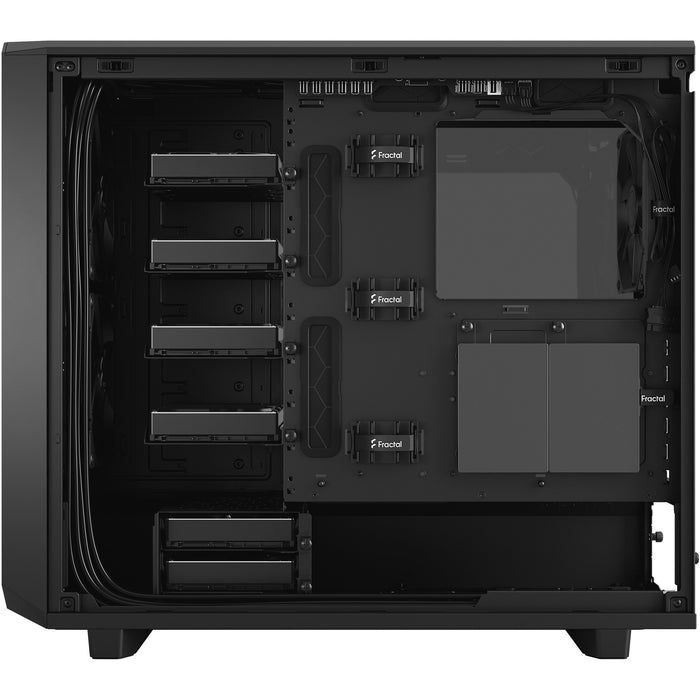

- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

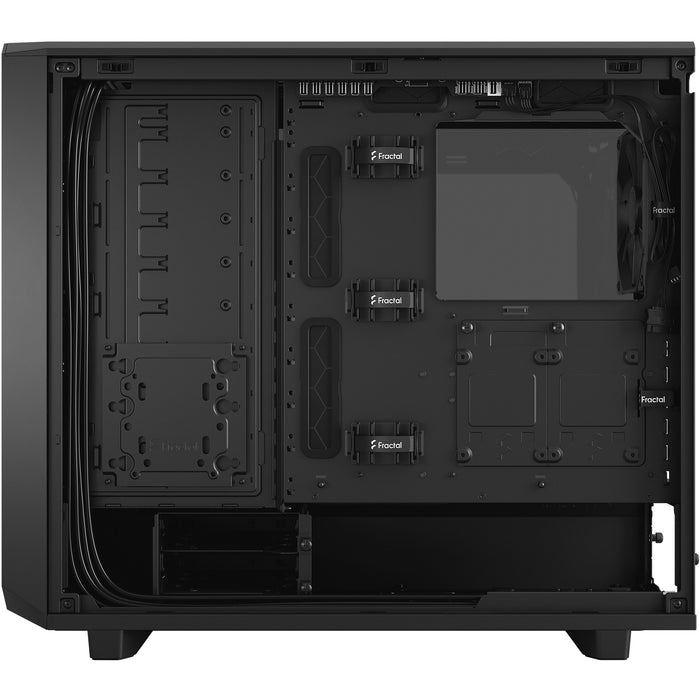

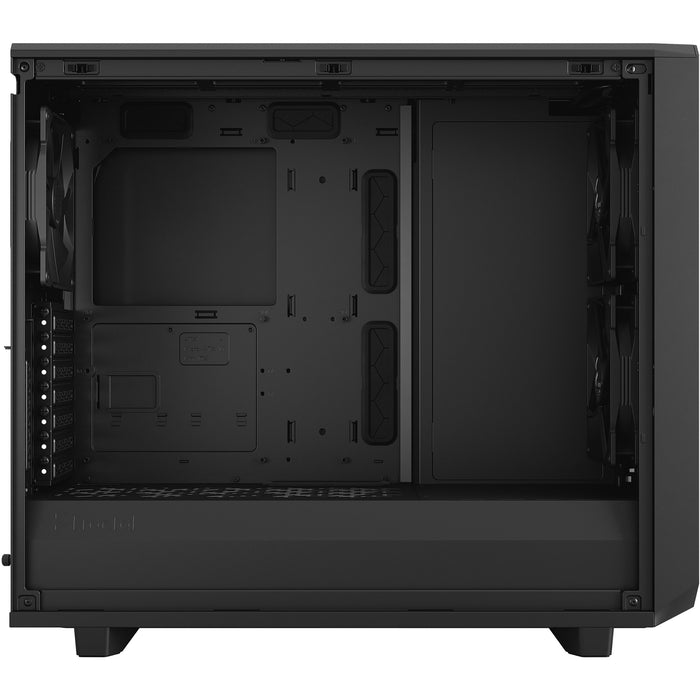

- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount

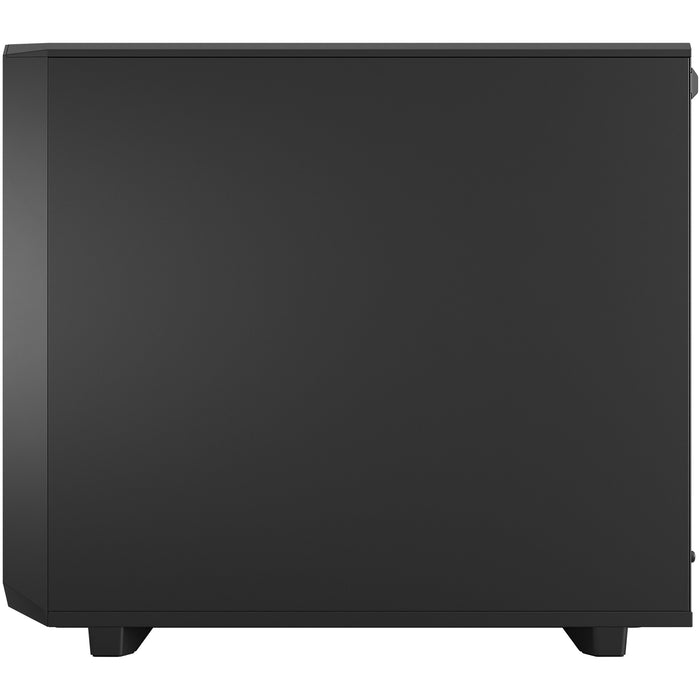

- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible

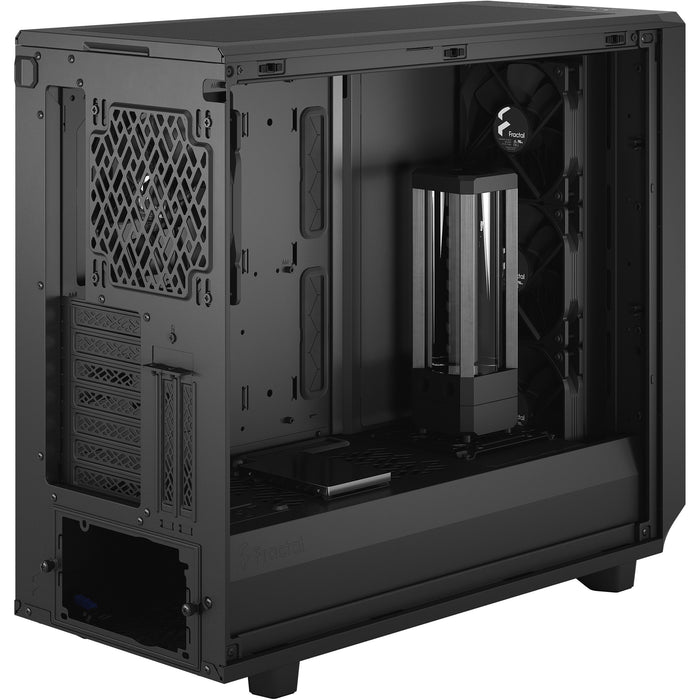

- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX
Open and interchangeable

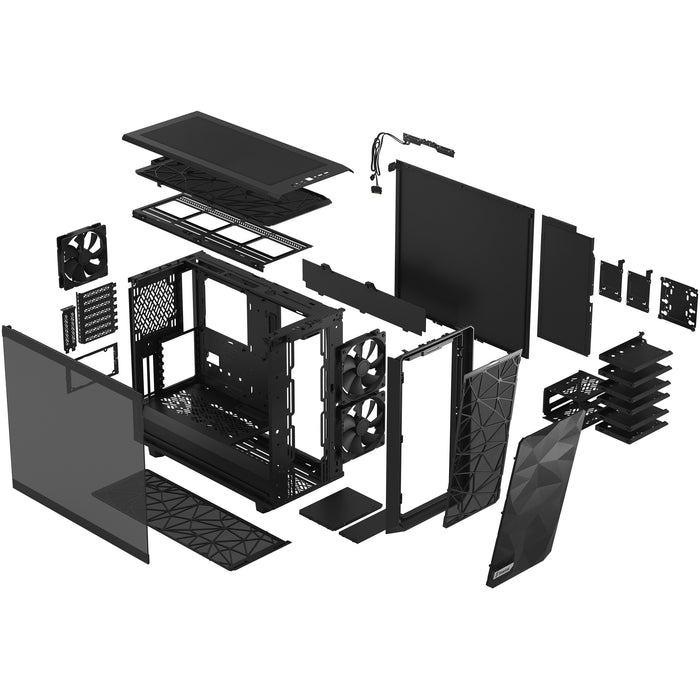

Remove the entire top to build and route with zero hindrance.
Type-C Interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
Cable management

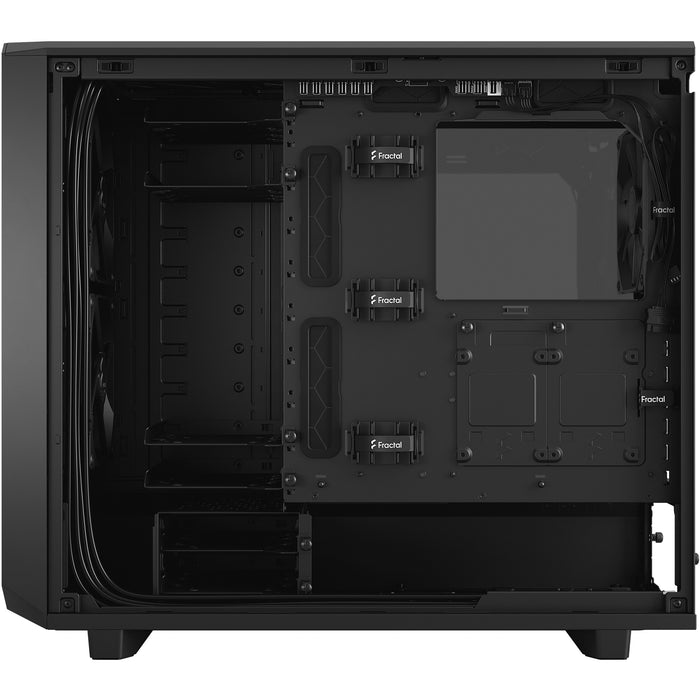

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Design
Material: Steel
Form factor: Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 6
Number of 2.5" bays: 2
Number of internal 3.5" bays: 6
Number of storage drives supported: 23
Number of expansion slots: 9

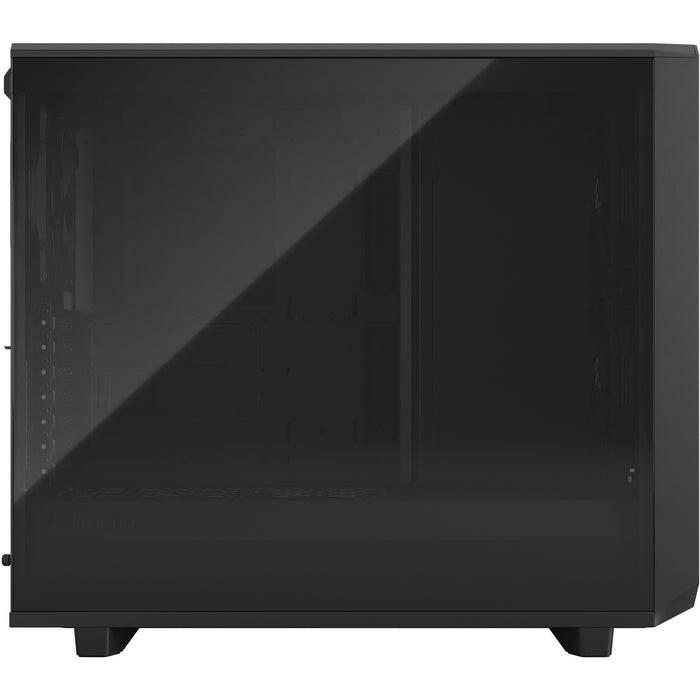

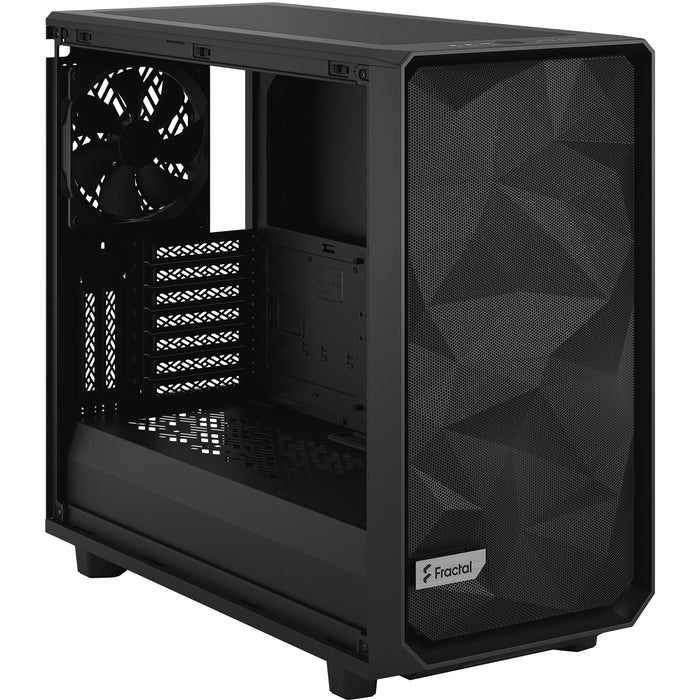

Feature: Side window
Suitable for: Gaming

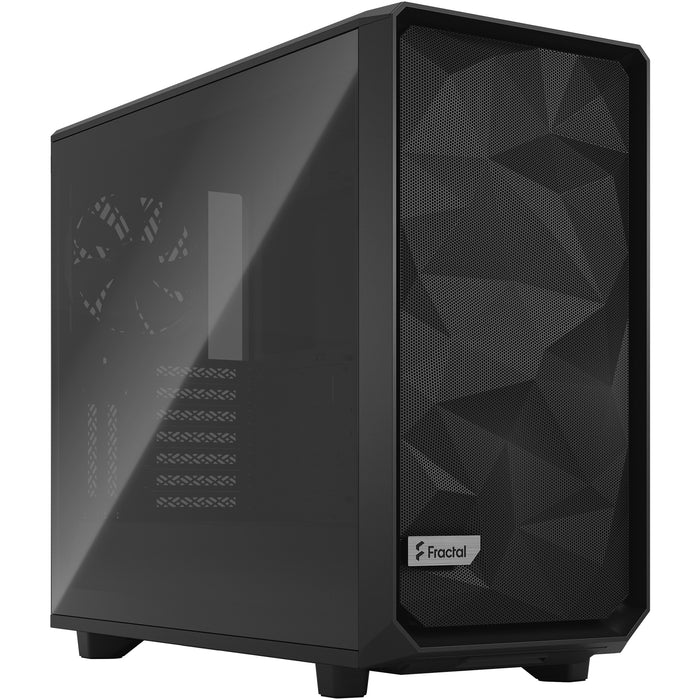

Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 18.5 cm
Maximum graphics card length: 31.5 cm
Maximum PSU length: 25 cm
Power supply

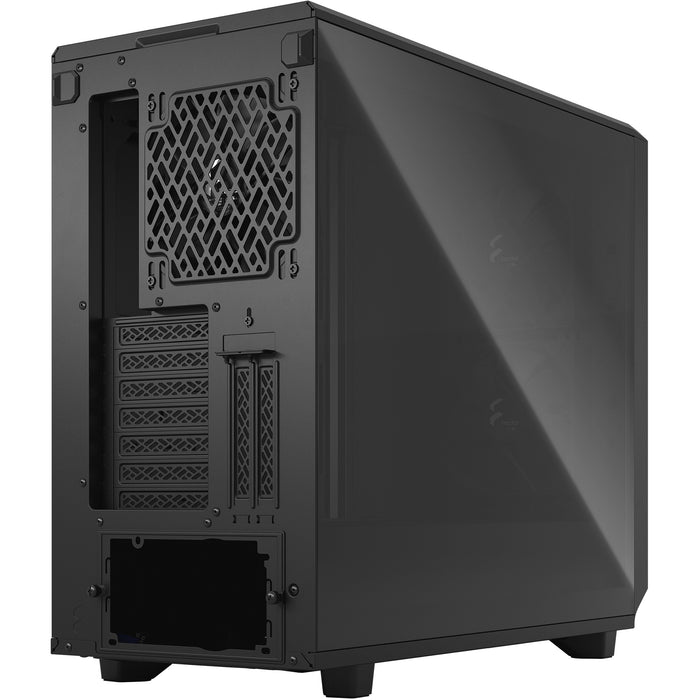

Power supply location: Bottom
Supported power supply form factors: ATX
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 2x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 140 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 2
Bottom fans diameters supported: 120,140 mm
Front radiator sizes supported: 280,360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 360,420 mm
Storage
Feature: HDD/SSD combo cage
Number of HDDs supported: 18
Weight & dimensions
Width: 240 mm
Depth: 542 mm
Height: 474 mm
Weight: 10.5 kg
Packaging data
Package width: 542 mm
Package depth: 634 mm
Package height: 324 mm
Package weight: 13.2 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Volume: 58.95 L
Fractal Design Meshify 2. Form factor: Tower, Type: PC, Product colour: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Width: 240 mm, Depth: 542 mm, Height: 474 mm. Package width: 542 mm, Package depth: 634 mm, Package height: 324 mm
Fractal Design
MBR CODE - FD-C-MES2A-03
EAN - 7340172702443
