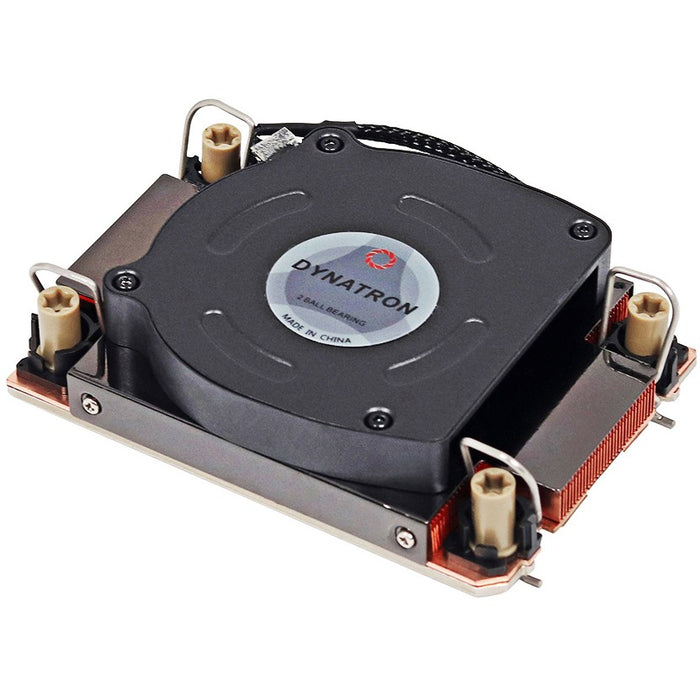

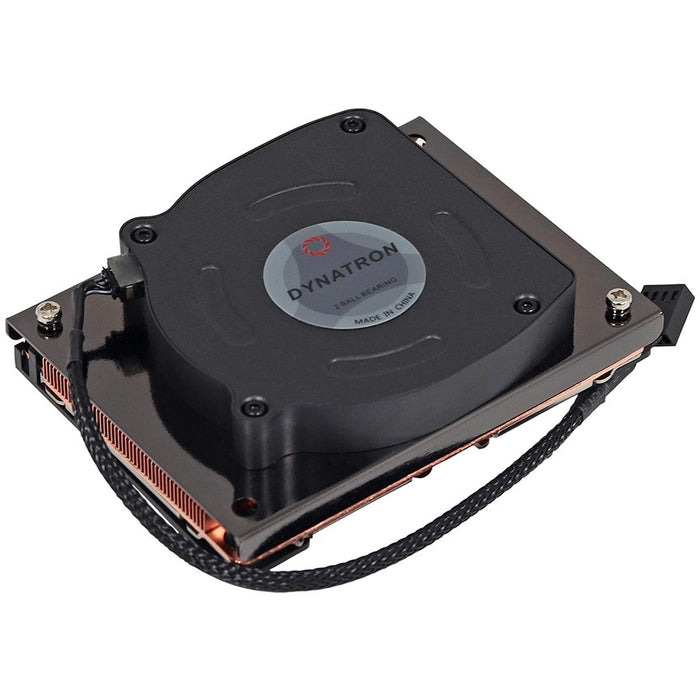

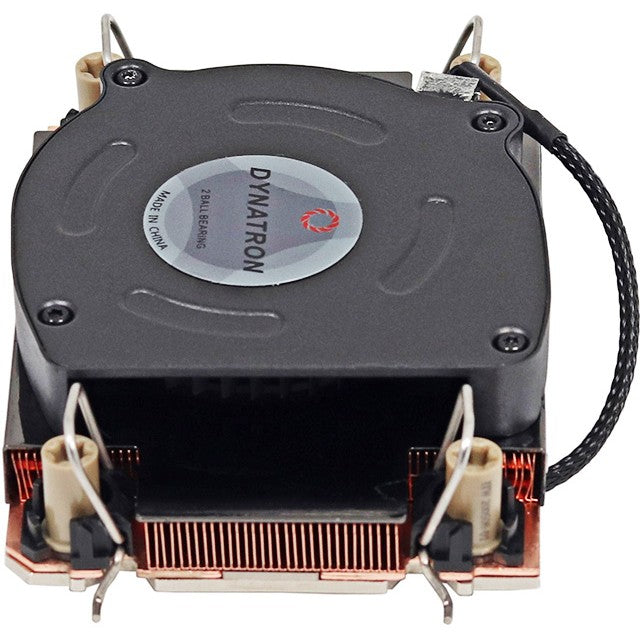

N12
Recommend for Intel® Whitley Platform Cooper Lake and Ice Lake Processors, LGA 4189 sockets, Active Cooler for 1U Server, Copper Heatsink with Vapor Chamber Base, Steel PWM Blower, Support 205 Watts CPU Power Heat Dissipation.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: LGA 4189
Compatible processor series: Intel® Xeon®
Number of speeds: 3
Rotational speed (min): 2000 RPM
Rotational speed (max): 8600 RPM
Noise level (low speed): 23.3 dB
Noise level (high speed): 62.2 dB
Minimum airflow (imperial): 5.59 cfm
Maximum airflow: 26.25 cfm
Minimum air pressure: 3.69 mmH2O
Maximum air pressure: 89.8 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Fan noise level (min): 23.3 dB
Fan noise level (max): 62.2 dB
Fan bearing technology: Double ball bearing
Quantity per pack: 1 pc(s)
Design
Product colour: Black
Material: Copper, Plastic, Steel
Number of fans: 1 fan(s)
Fins material: Copper
Fan connector: 4-pin
Rack capacity: 1U
Power
Power supply: 23.45 W
Voltage: 12 V
Thermal Design Power (TDP): 205 W
Weight & dimensions
Width: 80.6 mm
Depth: 113 mm
Height: 26.3 mm
Weight: 410 g
Fan thickness: 1.3 cm
Other features
Feature: Thermal grease
Dynatron N12. Type: Air cooler, Fan diameter: 8 cm, Number of speeds: 3, Rotational speed (min): 2000 RPM, Rotational speed (max): 8600 RPM, Minimum air pressure: 3.69 mmH2O, Maximum air pressure: 89.8 mmH2O, Bearing type: Ball bearing. Voltage: 12 V. Width: 80.6 mm, Depth: 113 mm, Height: 26.3 mm. Product colour: Black
Dynatron
MBR CODE - A 2739
EAN - 0859300007888
