The CG580 WH is a white-coated, picturesque single-chamber panoramic case that was built to accommodate the most commonly used components available while showing them off in style. With support for 360mm radiators and numerous fan configurations, the CG580 WH is also extremely functional. No fans are included, so the case is fully primed to accept your favorite cooling fans.
SCENIC VIEW

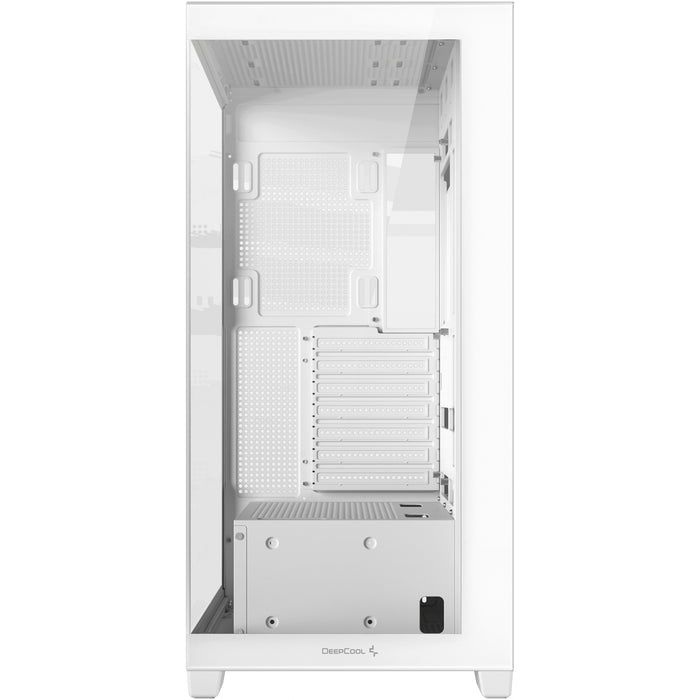

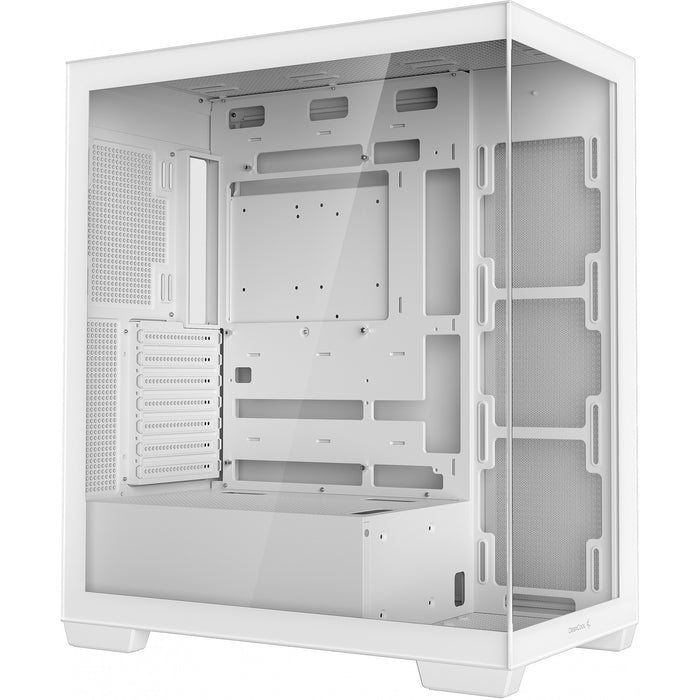

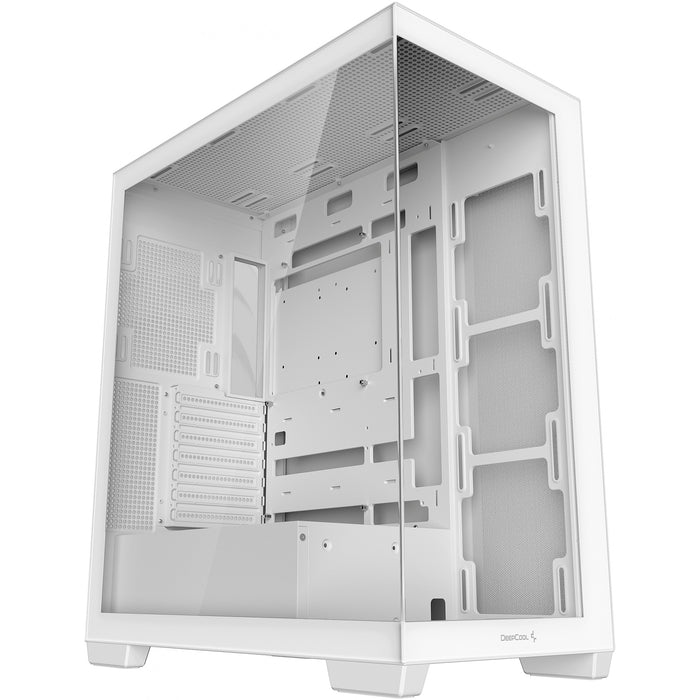

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build.
KEEPING IT CLEAN

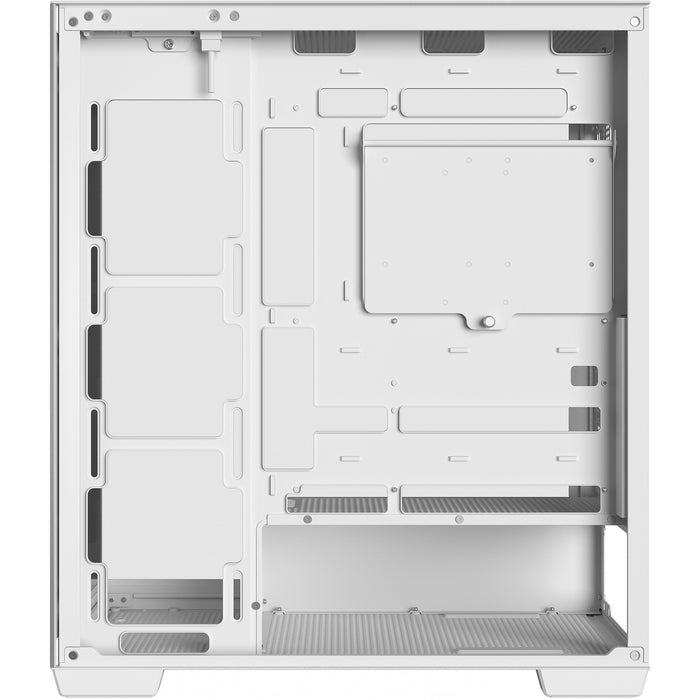

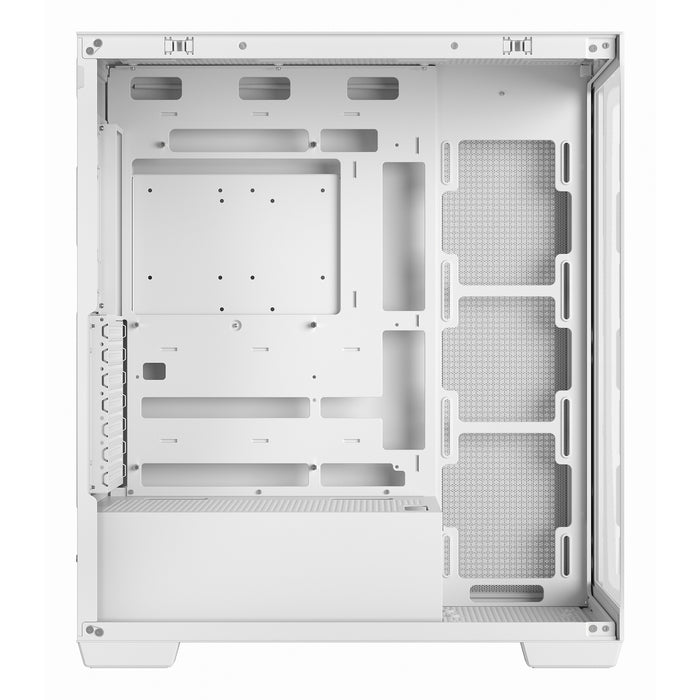

The internal single chamber layout optimizes the available space with 33mm of cable management space, while the motherboard tray supports motherboards with back connectors from ASUS and MSI; as a result, your system will look more steamlined and cleaner than ever before.
THE SUPPORT YOU NEED
Designed to support up to ATX motherboards, 360mm radiators at the top and side, 410mm long GPUs (limited to 262mm if a radiator and fan set are mounted on the side), 210mm PSUs, 176mm tall air coolers, and up to 9 120mm fans, the CG580 WH can be configured in a wide array of combinations for your modern hardware needs. The bottom position can support either a 120mm fan or a 3.5"" HDD drive.
QUALITY OF LIFE FEATURES

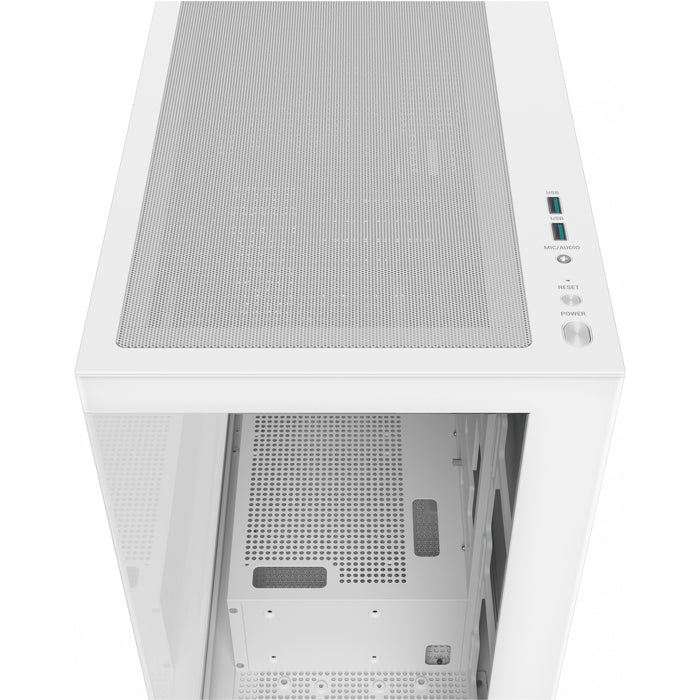

With two USB 3.0 ports and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. The magnetic top filter keeps dust out of your system and makes cleaning a little easier.
Design
Material: Acrylonitrile butadiene styrene (ABS), SGCC, Tempered glass
Type: PC
Product colour: White
Supported motherboard form factors: ATX, ITX, micro ATX
Number of 3.5" bays: 2
Number of 2.5" bays: 3
Number of expansion slots: 7
Feature: Side window
Feature: Tempered glass panel(s)
Feature: Anti-dust filter
Feature: Cable management
Feature: Reset button
Feature: On/off button
Maximum CPU cooler height: 17.6 cm
Maximum graphics card length: 41 cm
Maximum PSU length: 21 cm
Power supply
Supported power supply form factors: ATX, PS2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: Combo headphone/mic port
Cooling
Number of side fans supported (max): 3
Side fans diameters supported: 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120,140 mm
Number of top fans supported (max): 3
Top fans diameters supported: 120,140 mm
Number of bottom fans supported (max): 1
Bottom fans diameters supported: 120 mm
Side radiator sizes supported: 120,240,360 mm
Rear radiator sizes supported: 120,140 mm
Top radiator sizes supported: 120,140,240,280,360 mm
Storage
Supported HDD sizes: 3.5"
SSD form factor: 2.5"
Packaging content
Feature: Manual
Weight & dimensions
Width: 235 mm
Depth: 437 mm
Height: 501 mm
Weight: 7.9 kg
DeepCool CG580 WH. Type: PC, Product colour: White, Supported motherboard form factors: ATX, ITX, micro ATX. Supported power supply form factors: ATX, PS2. Side fans diameters supported: 120 mm, Rear fans diameters supported: 120,140 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 235 mm, Depth: 437 mm, Height: 501 mm
Deepcool
MBR CODE - R-CG580-WHNDA0-G-1
EAN - 6933412774105
