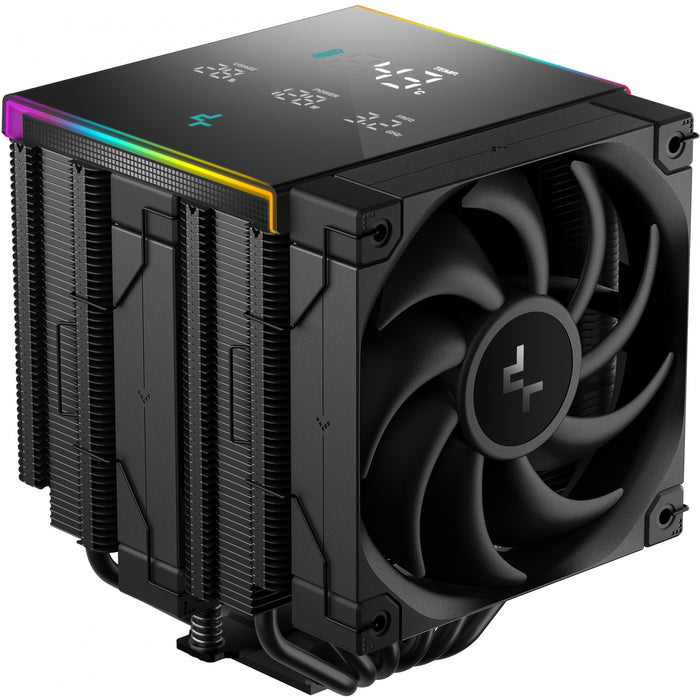

AK620 DIGITAL PRO
The AK DIGITAL air coolers have gone pro with their newest iteration. The AK620 DIGITAL PRO has been upgraded in many aspects, including a multi-data point screen, visual color temperature warnings, and CTT 2.0 heatpipe technology. A very worthy step up in not just aesthetics but cooling performance.
AK620 DIGITAL PRO
DIGITAL COOLERS GO PRO

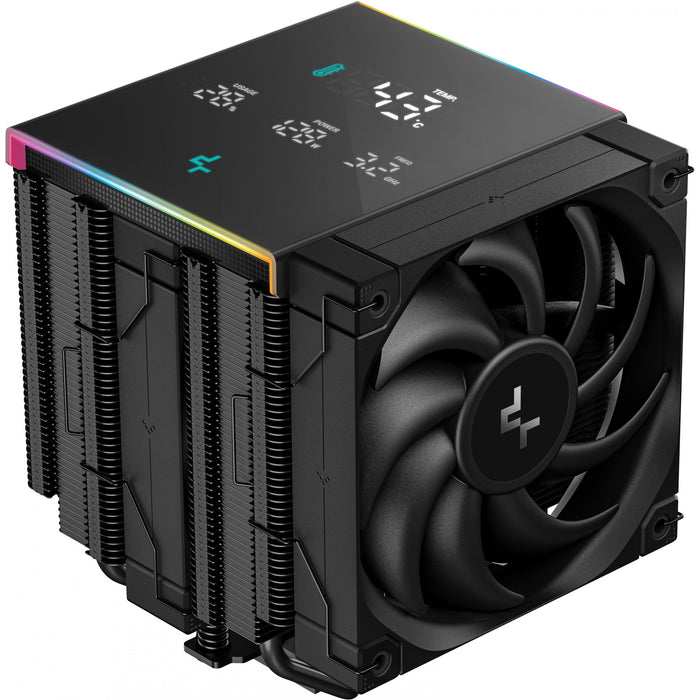

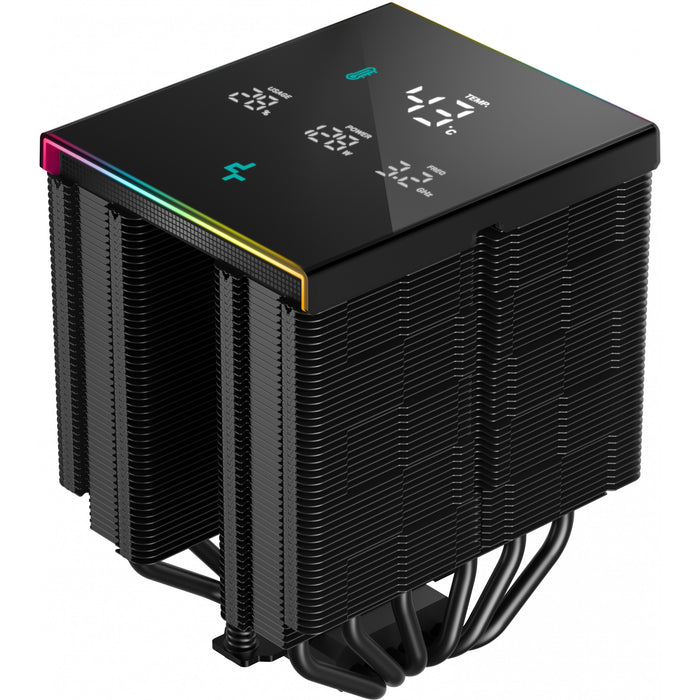

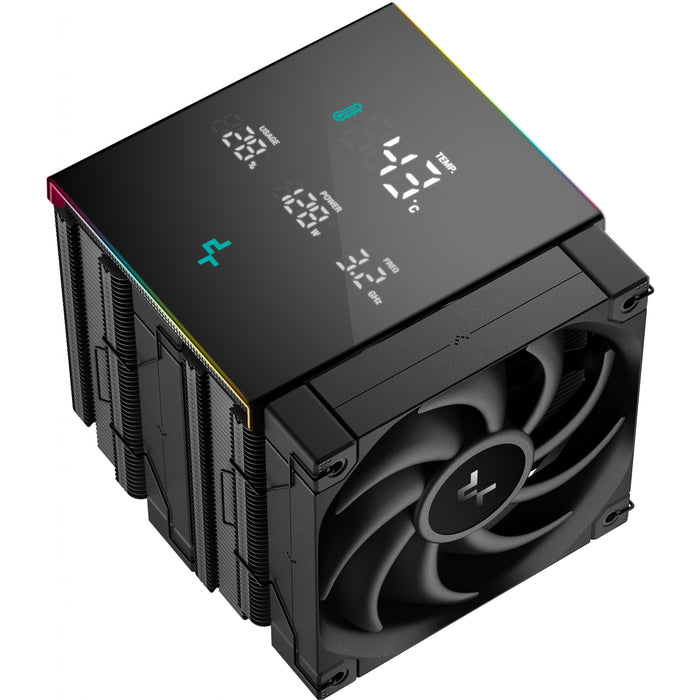

ENHANCED CPU STATUS SCREEN
The sleek and shiny screen of the AK620 DIGITAL PRO has been enhanced to show more than just the temperature; usage, wattage, and frequency have been added and are displayed at the same time. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
VISUAL TEMPERATURE ALERTS
The temperature warning alert system has also been upgraded to have a color-coded visual indicator: under 80 °C, the indicator will stay green; between 80 and 90°C, it will be a bright orange; when things get warm above 90 °C, it will go red, and you will start to see flashes.
OPTIMIZED COOLING

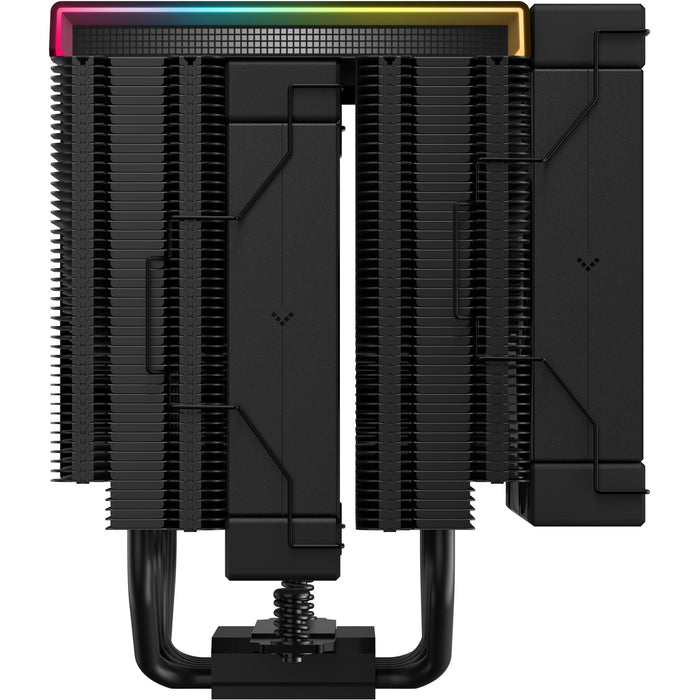

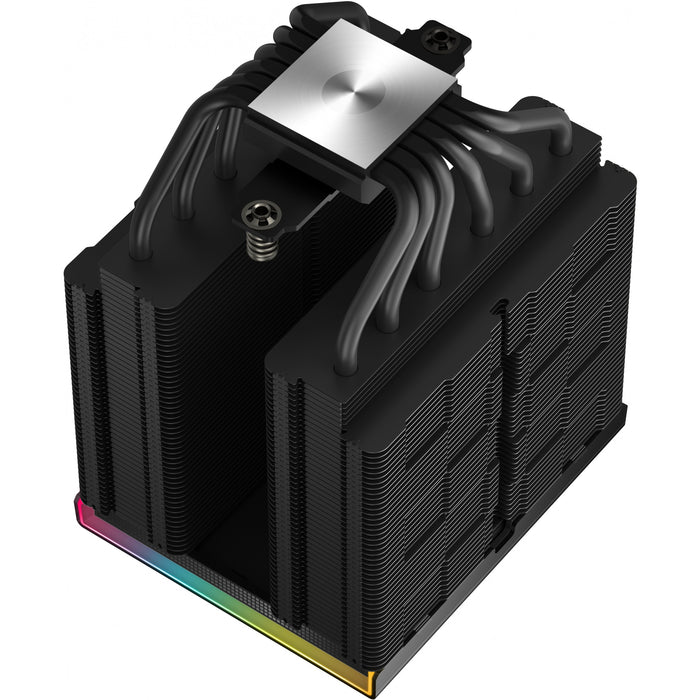

An upgrade to DeepCool's newest Core Touch Technology 2.0 dramatically improves cooling capacity. The heatpipes have been optimized and laid out to promote the best possible thermal transfer through the nickel-plated coldplate from the CPU IHS. As a result, CTT 2.0 provides a bump in cooling performance.
PROVEN AK ZERO DARK DESIGN

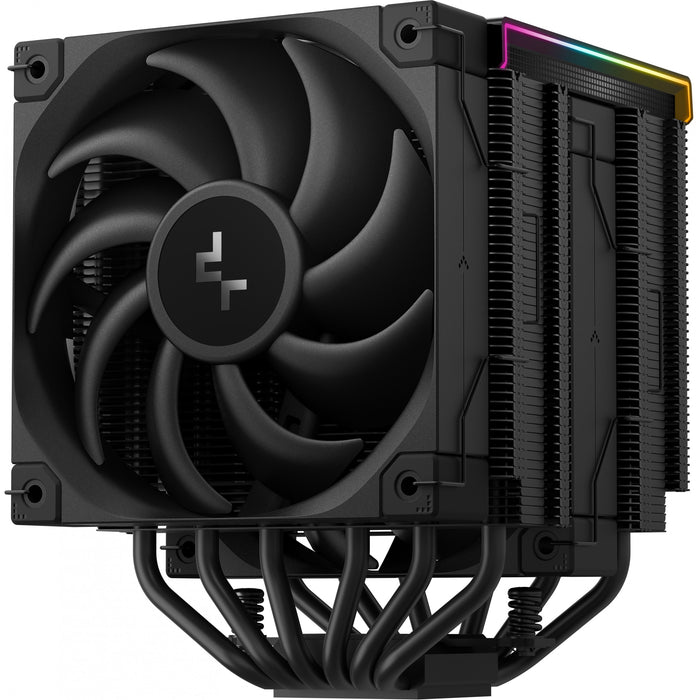

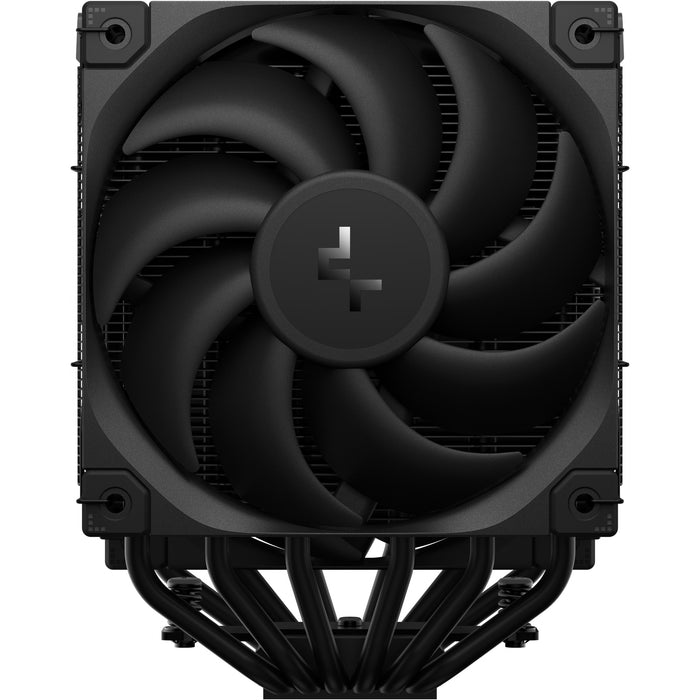

An all-black variation of the dominant AK620 high-performance CPU cooler. The same premium-quality materials, featuring six advanced copper heat pipes, a dense matrix pattern dual-tower heat sink, and two silent FDB fans, produce a powerful winning formula for high performance cooling in a ZERO DARK raven design.
KEEP YOUR COOL

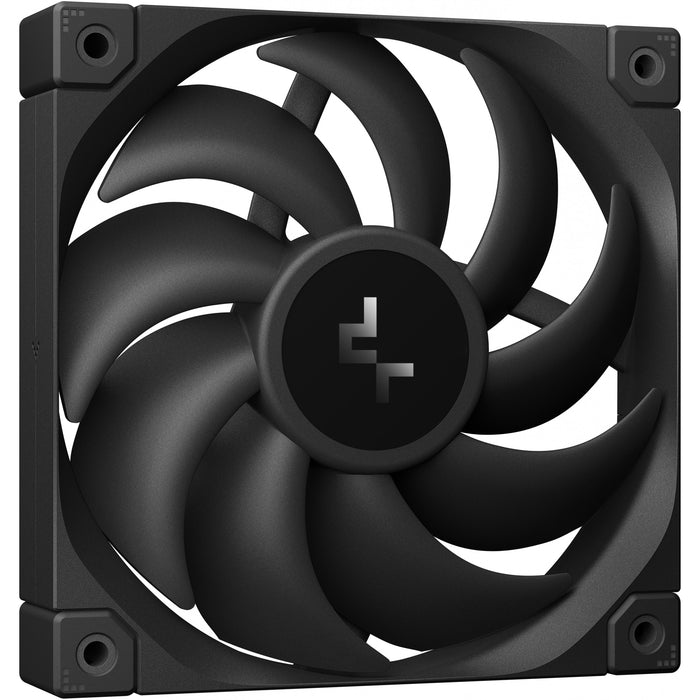

Upgraded to the newly designed FT12 SE fans with a true fluid dynamic bearing, the AK PRO models will get a PWM fan with a blade profile that has been optimized for the perfect balance of airflow and static pressure while minimizing the fan acoustics.
SIMPLIFIED MOUNTING

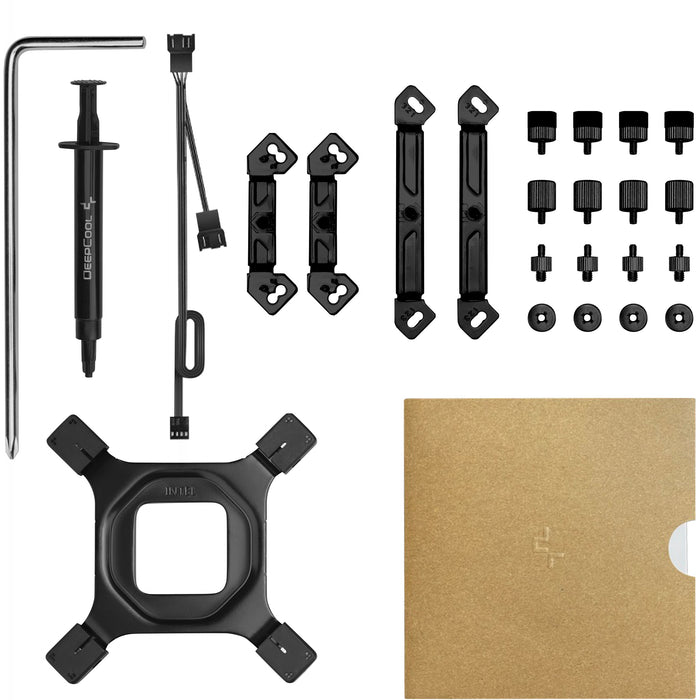

The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Maximum airflow: 60.89 cfm
Maximum air pressure: 2.91 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 25 dB
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 1750 RPM
Design
Product colour: Black
Radiator material: Aluminum
Number of fans: 2 fan(s)
Number of fan blades: 9
Number of heat pipes: 6
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin
Power
Fan power consumption: 3 W
LED voltage: 5 V
Fan voltage: 12 V
Fan current: 0.25 A
LED power consumption (fan): 5.55 W
Weight & dimensions
Width: 138 mm
Radiator width: 11 cm
Radiator depth: 12.7 cm
Radiator height: 15.4 cm
Depth: 129 mm
Height: 163 mm
Weight: 1.49 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Heat pipes diameter: 6 mm
Packaging content
Package type: Box
Feature: Mounting kit
Feature: Screws included
Feature: CPU bracket(s)
DeepCool AK620 Digital PRO. Type: Air cooler, Fan diameter: 12 cm, Maximum air pressure: 2.91 mmH2O. Width: 138 mm, Depth: 129 mm, Height: 163 mm. Product colour: Black
Deepcool
MBR CODE - R-AK620-BKAPMN-G
EAN - 6933412728818
