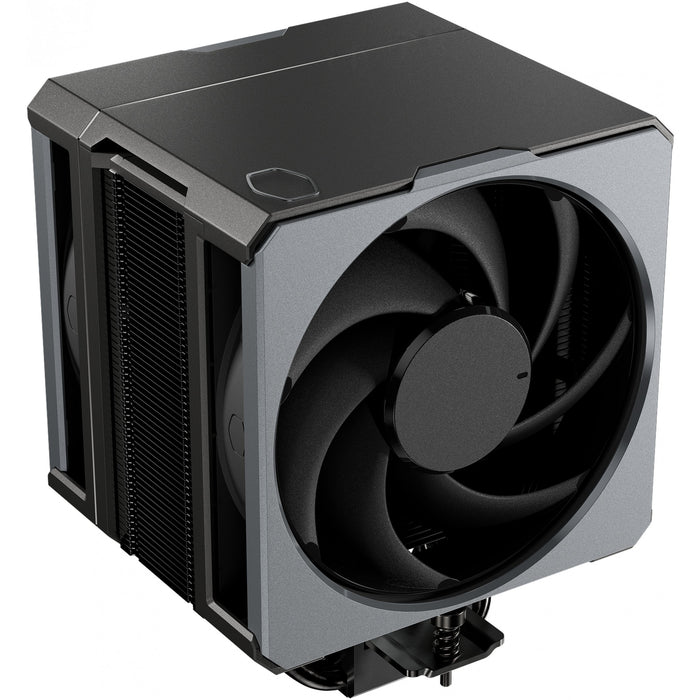

Hyper 612 APEX
The Cooler Master Hyper 612 Apex is a high-performance air cooler engineered for builders who demand raw cooling power without compromise. It features six patented Superconductive Composite copper heat pipes and dual Mobius 120P PWM fans for efficient heat dissipation and quiet operation, even under heavy loads. With support for AMD AM5/AM4 and Intel LGA 1851/1700 sockets, the 612 Apex delivers broad compatibility across modern platforms. Its 159mm height fits most mid-tower cases, while the clean top cover and color options (Black or White) make it a perfect match for performance-focused, visually refined builds. No gimmicks—just pure cooling muscle.
Superconductive Composite Heat Pipes
Six advanced copper heat pipes deliver fast, even heat transfer from modern high-core CPUs.
Dual Mobius 120P PWM Fans
Pressure-optimized fans with Loop Dynamic Bearings for silent, high-performance airflow under load.

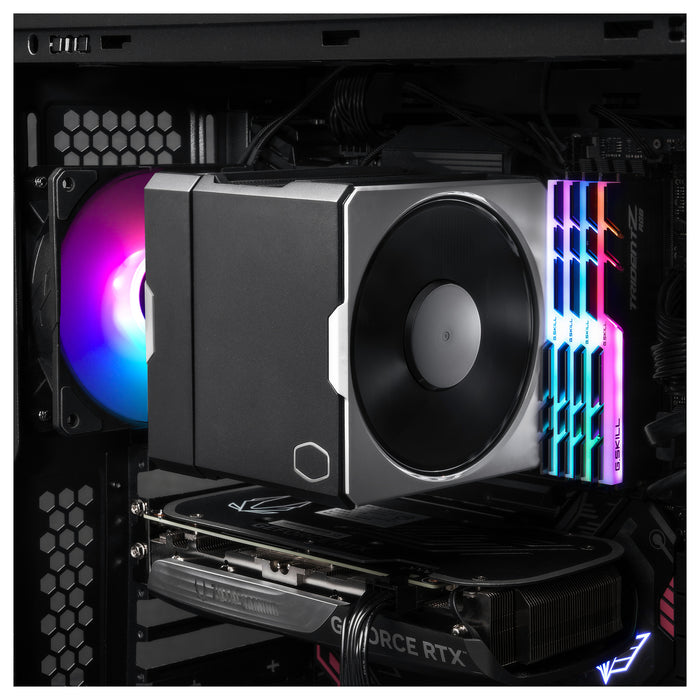

159mm Tower Height
Compact enough to fit most mid-tower cases without sacrificing performance or clearance.

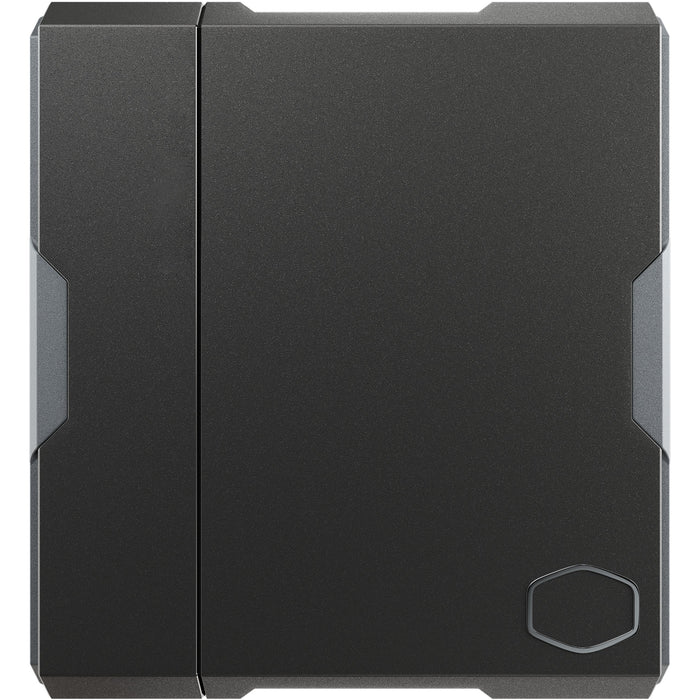

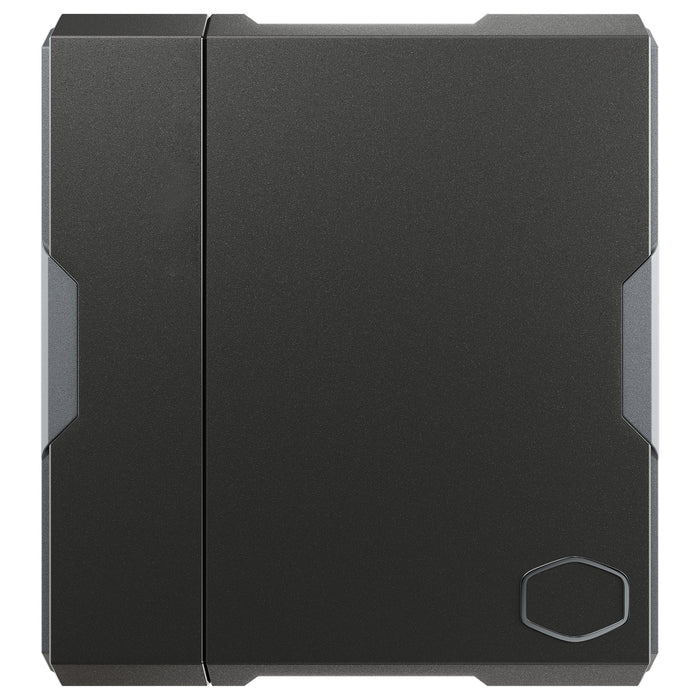

Sleek,
Minimalist Top Cover
Available in Black or White to match your build, with premium finish and clean aesthetics.
Wide Platform Compatibility
Supports AMD AM5/AM4 and Intel LGA 1851/1700 out of the box for next-gen readiness.
Easy Installation
Tool-free brackets and streamlined mounting make setup fast, clean, and frustration-free.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Rotational speed (min): 0 RPM
Rotational speed (max): 2400 RPM
Noise level (high speed): 30 dB
Maximum airflow: 75.2 cfm
Airflow: 127.6 m³/h
Maximum air pressure: 3.63 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Loop Dynamic Bearing (LDB)
Fan noise level (max): 30 dB
Quantity per pack: 1 pc(s)
Design
Product colour: Black
Number of fans: 2 fan(s)
Fan connector: 4-pin
Power
Rated voltage: 12 V
Fan power consumption: 2.16 W
Rated current: 0.18 A
Safety current: 0.35 Ah
Weight & dimensions
Width: 114 mm
Depth: 127 mm
Height: 159 mm
Weight: 1.35 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 190 mm
Package depth: 230 mm
Package height: 165 mm
Package weight: 2.17 kg
Logistics data
Master (outer) case width: 395 mm
Master (outer) case length: 475 mm
Master (outer) case height: 192 mm
Cooler Master Hyper 612 APEX. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 2400 RPM, Airflow: 127.6 m³/h, Maximum air pressure: 3.63 mmH2O, Bearing type: Loop Dynamic Bearing (LDB). Width: 114 mm, Depth: 127 mm, Height: 159 mm. Product colour: Black
Cooler Master
MBR CODE - MAP-T6PN-225PK-R1
EAN - 4719512154946
