Power
Total power: 1000 W
Peak power: 1100 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Number of +12V rail(s): 4
Combined power (+3.3V): 120 W
Combined power (+12V): 996 W
Combined power (+5V): 120 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 33 A
Max output current (+12V2): 33 A
Max output current (+12V3): 40 A
Max output current (+12V4): 40 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 20.1 ms
Efficiency: 93.8%
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces

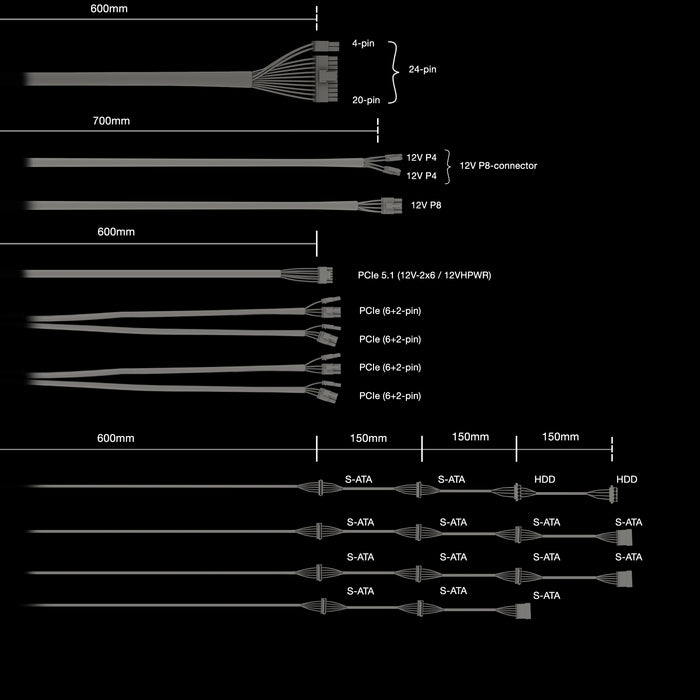

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
SATA power cable length: 600,750,900,1050 mm
Number of SATA power cables: 13
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 900,1050 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 1
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector

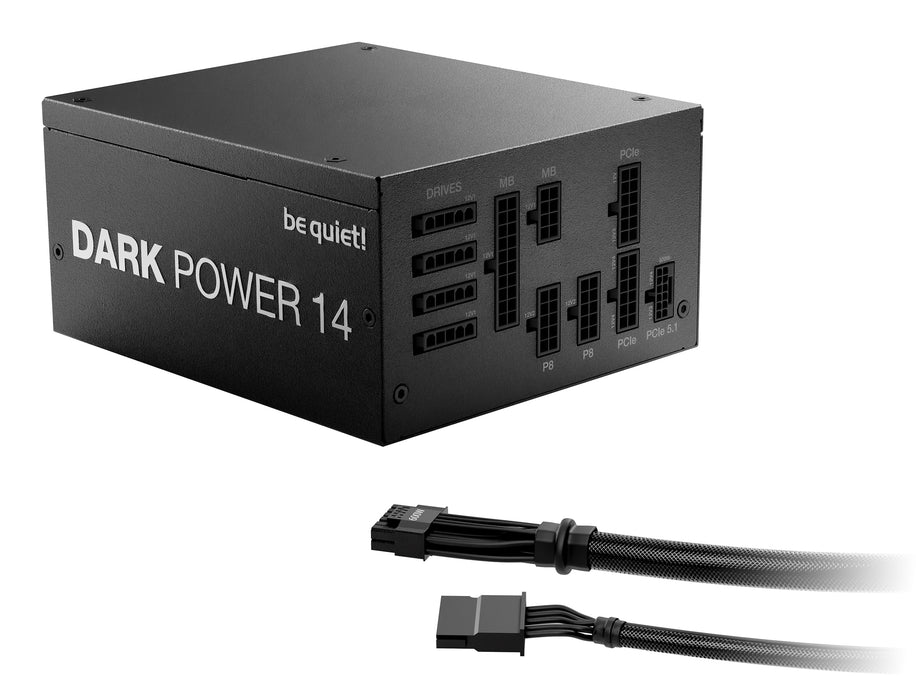

Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92

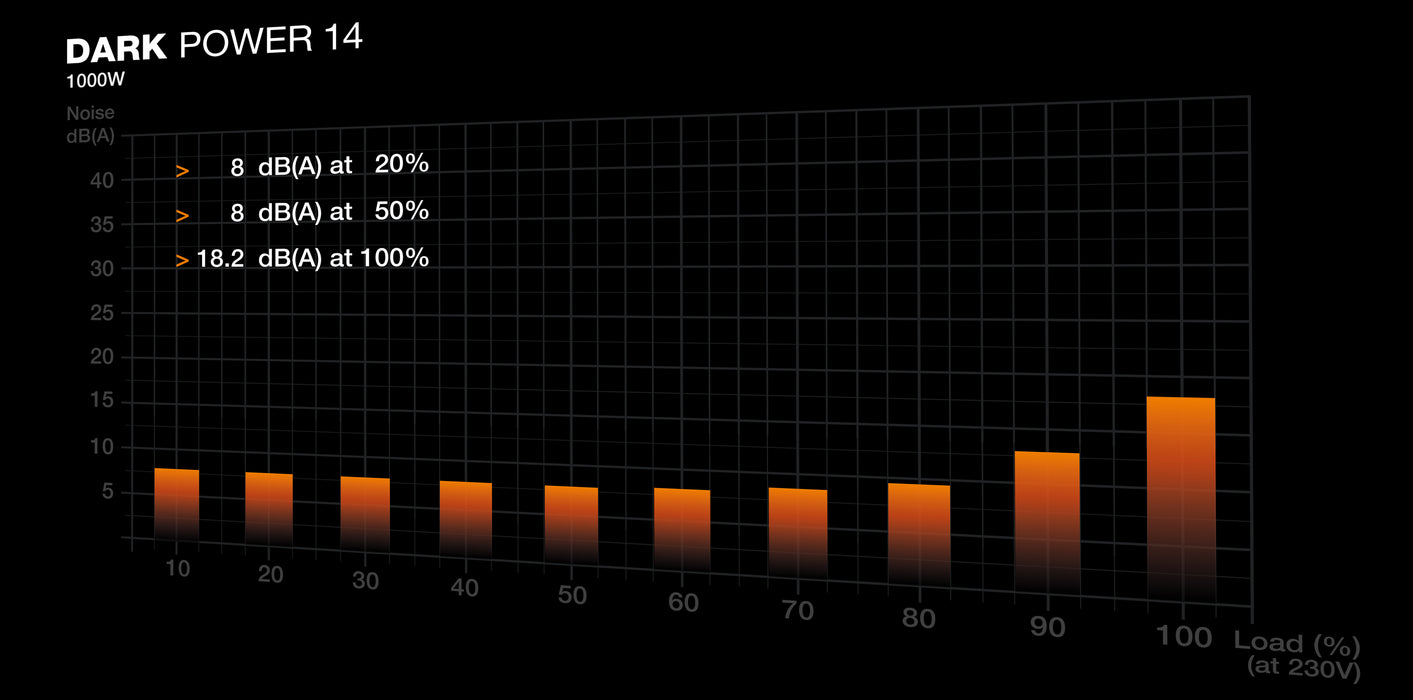

Noise level: 18.2 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active

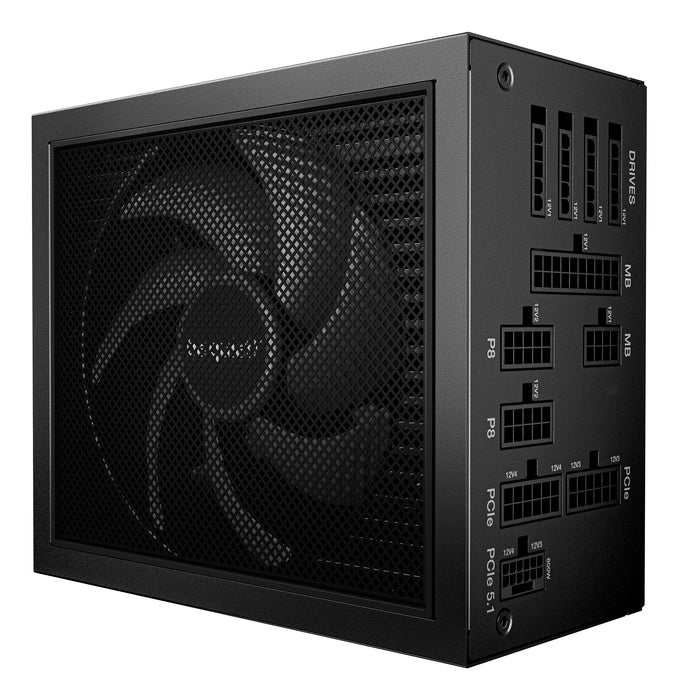

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM

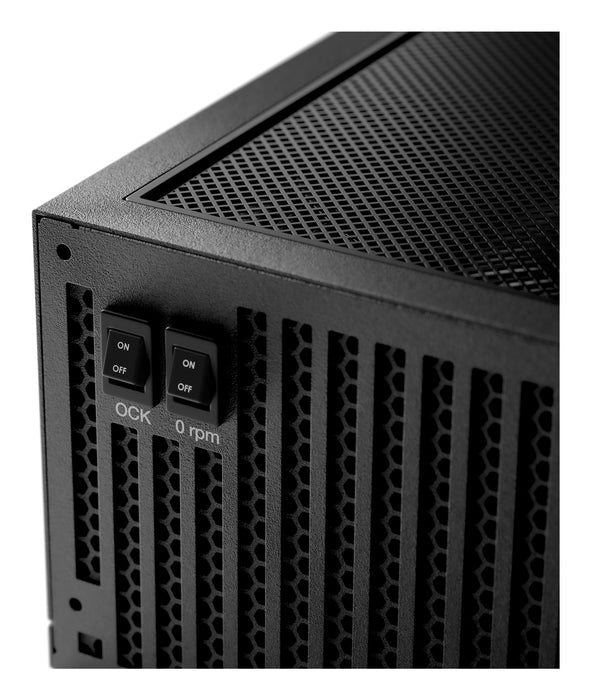

Feature: On/off switch
Feature: On/off fan switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Weight & dimensions
Width: 150 mm
Depth: 175 mm
Height: 86 mm
Weight: 2.2 kg
Packaging data
Feature: Manual
Manual languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package width: 230 mm
Package depth: 126 mm
Package height: 355 mm
Package weight: 3.5 kg
Technical details
Sustainability certificates: ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length: 52.8 cm
Shipping (inner) case width: 36.8 cm
Shipping (inner) case height: 26 cm
Shipping (inner) case net weight: 19.3 kg
Products per shipping (inner) case: 4 pc(s)
Other features

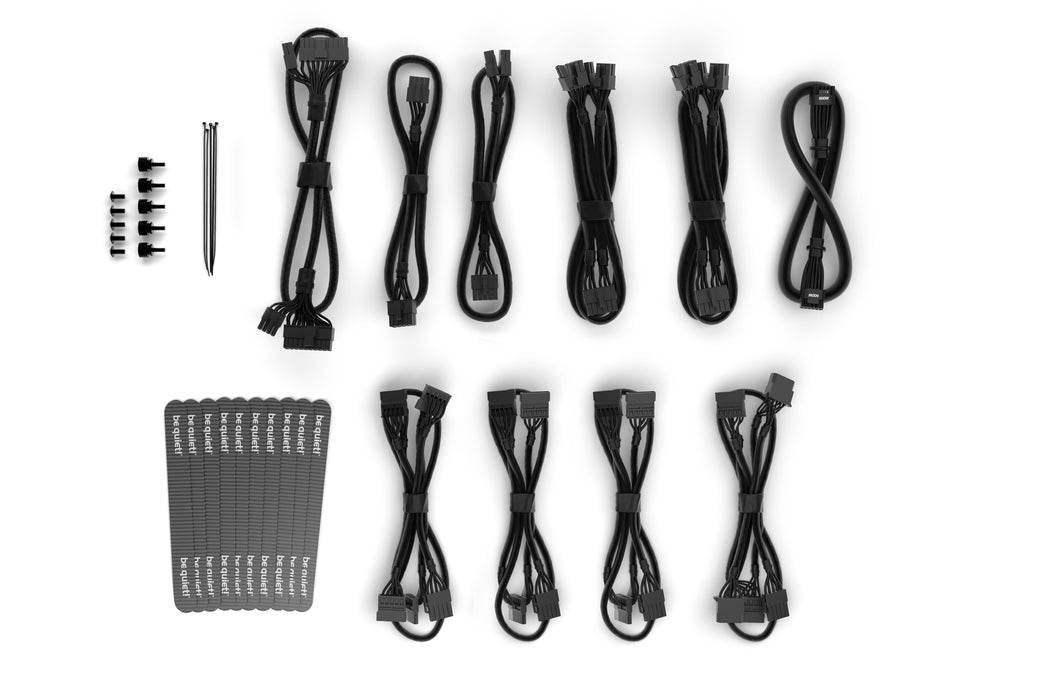

Feature: Screws included
Feature: Cable ties included

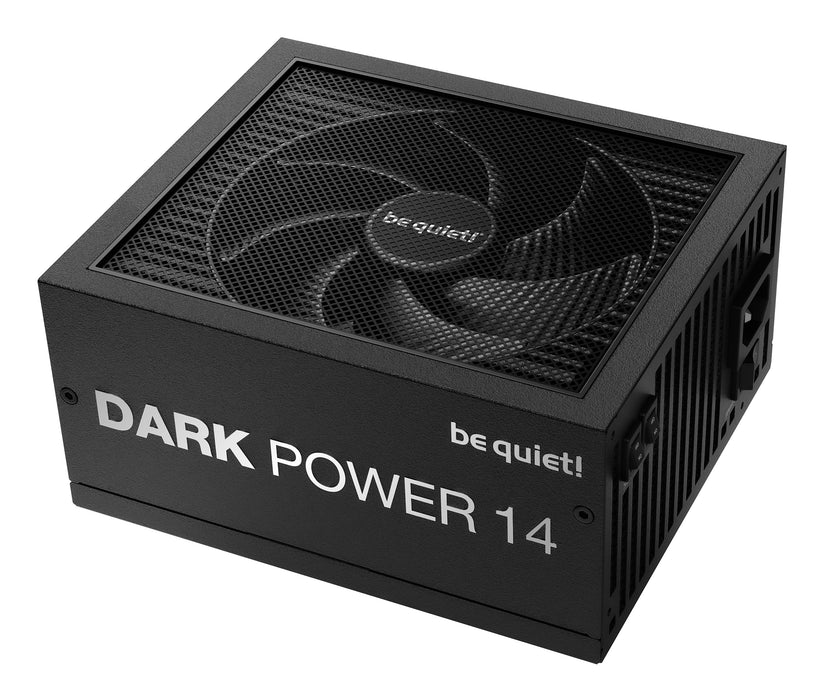

be quiet! Dark Power 14 1000 W - 80 Plus Titanium. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1100 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Be Quiet!
MBR CODE - BP020EU
EAN - 4260052192023
| Total power | 1000 W |
| Peak power | 1100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Number of +12V rail(s) | 4 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 33 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 20.1 ms |
| Efficiency | 93.8% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 600,750,900,1050 mm |
| Number of SATA power cables | 13 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 18.2 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2100 RPM |
| On/off switch | Yes |
| On/off fan switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Width | 150 mm |
| Depth | 175 mm |
| Height | 86 mm |
| Weight | 2.2 kg |
| Manual | Yes |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian |
| Package width | 230 mm |
| Package depth | 126 mm |
| Package height | 355 mm |
| Package weight | 3.5 kg |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Shipping (inner) case length | 52.8 cm |
| Shipping (inner) case width | 36.8 cm |
| Shipping (inner) case height | 26 cm |
| Shipping (inner) case net weight | 19.3 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Screws included | Yes |
| Cable ties included | Yes |
