Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

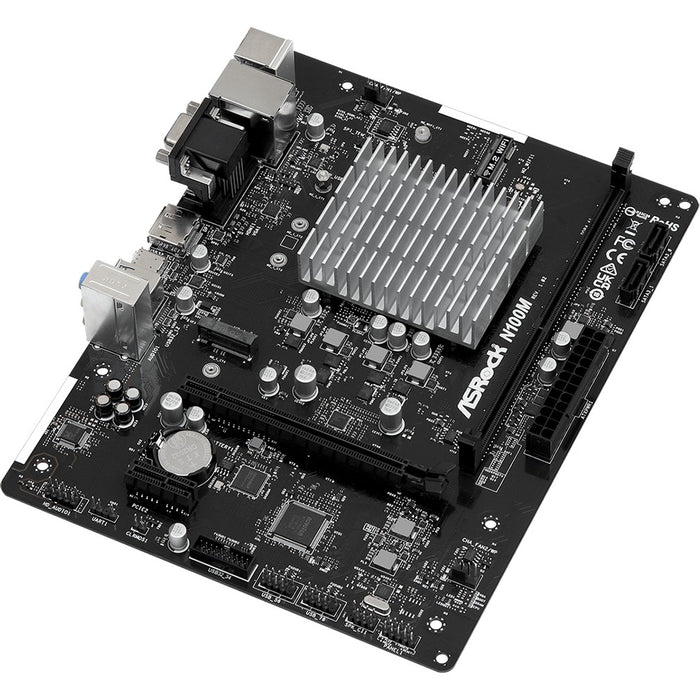

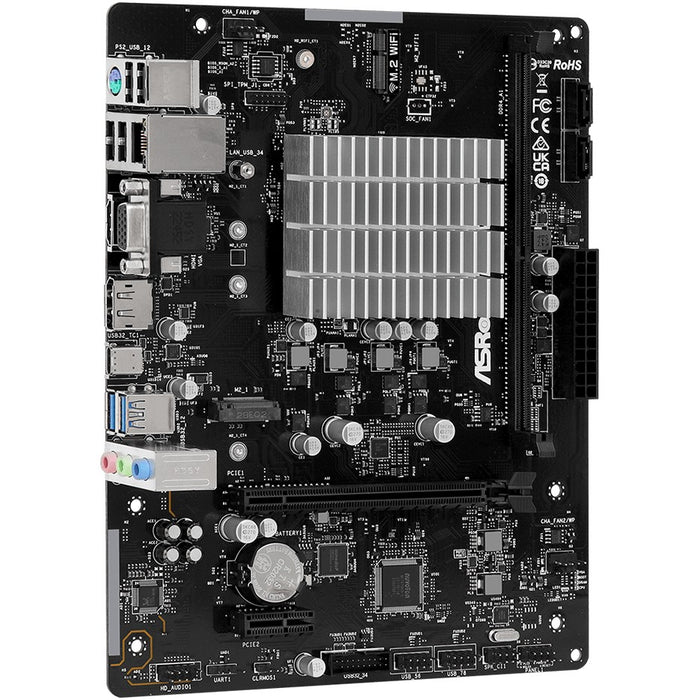

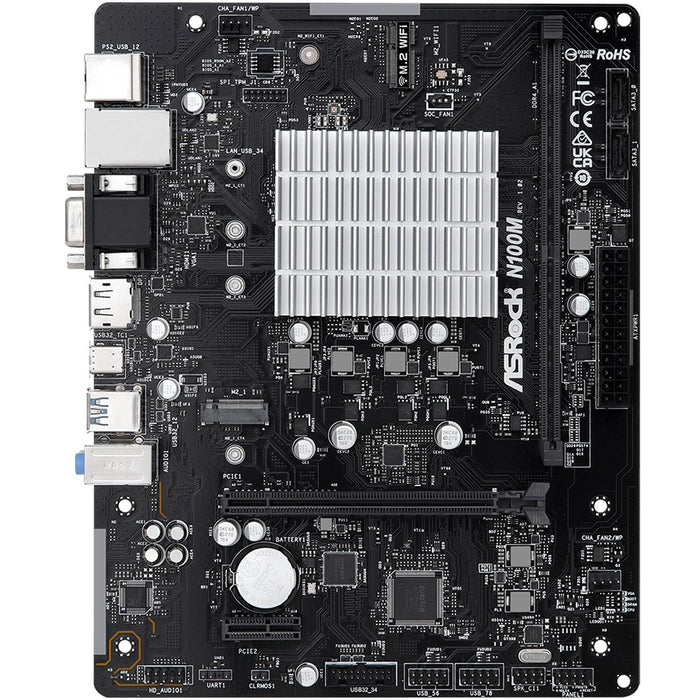

Fanless Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor
Processor manufacturer: Intel
Processor socket: NA (integrated CPU)
Compatible processor series: Intel Processor N
Supported processor sockets: BGA 1264
Processor model: N100
Processor cores: 4
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 1
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 32 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 2
Number of storage drives supported: 3
Graphics
Graphics card family: Intel
Graphics card: Intel® UHD Graphics
Maximum resolution: 4096 x 2160 pixels
Feature: HDCP
Number of displays supported: 3
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 2
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Number of chassis fan connectors: 2
Feature: Chassis intrusion connector
Feature: TPM connector

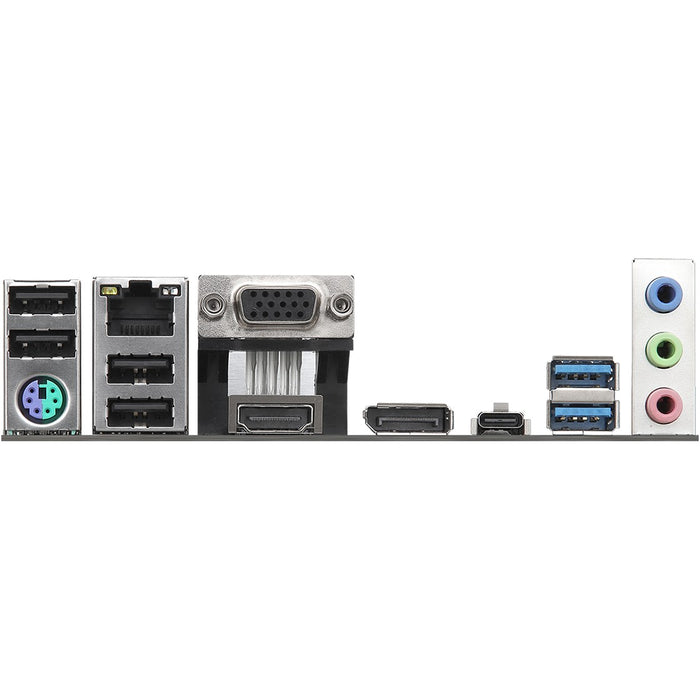

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek 8111H
Features
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Certification: - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Weight & dimensions
Width: 226 mm
Depth: 178 mm

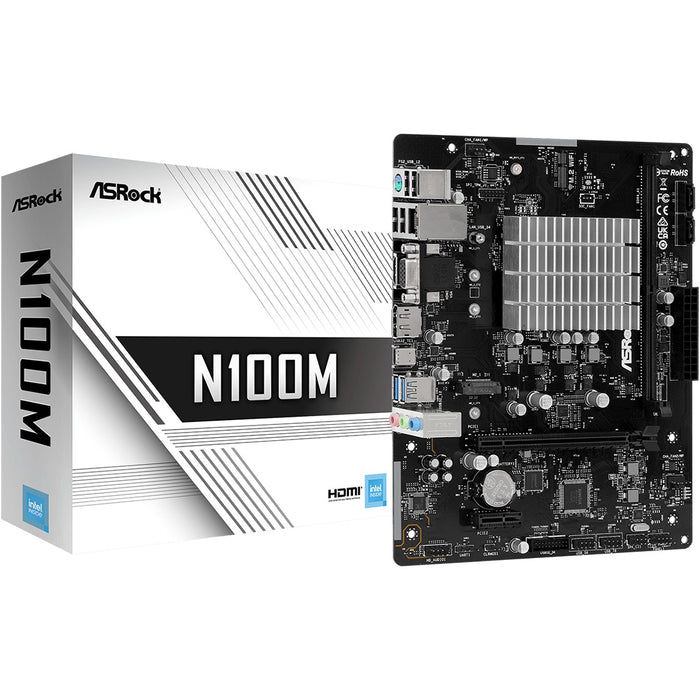

Packaging content
Cables included: SATA
Feature: Drivers included
Bundled software: - ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN
Technical details
Compliance certificates: Federal Communications Commission (FCC)
Asrock N100M. Processor manufacturer: Intel, Processor socket: NA (integrated CPU), Compatible processor series: Intel Processor N. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: Intel® UHD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H
ASRock
MBR CODE - 90-MXBK80-A0UAYZ
EAN - 4710483943058
