Intel® Alder Lake-N N100 Processor
The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.
DC-In Design
The DC-In jack is compatible with 19V power adapters (5.5*2.5mm DC-in jack). Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis.
Fanless Design

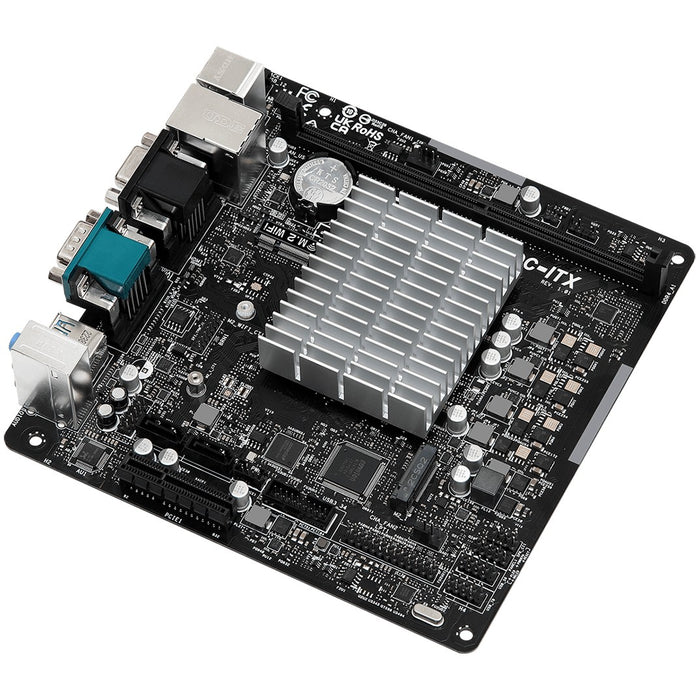

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.
AV1 Decoding + 4K
Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Processor
Processor manufacturer: Intel
Processor socket: NA (integrated CPU)
Compatible processor series: Not supported
Processor model: N100
Processor cores: 4
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 1
Memory slots type: DIMM
ECC сompatibility: Non-ECC
Supported memory clock speeds: 3200 MHz
Maximum internal memory: 32 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 2
Feature: Front panel audio connector
Number of chassis fan connectors: 2
Feature: TPM connector

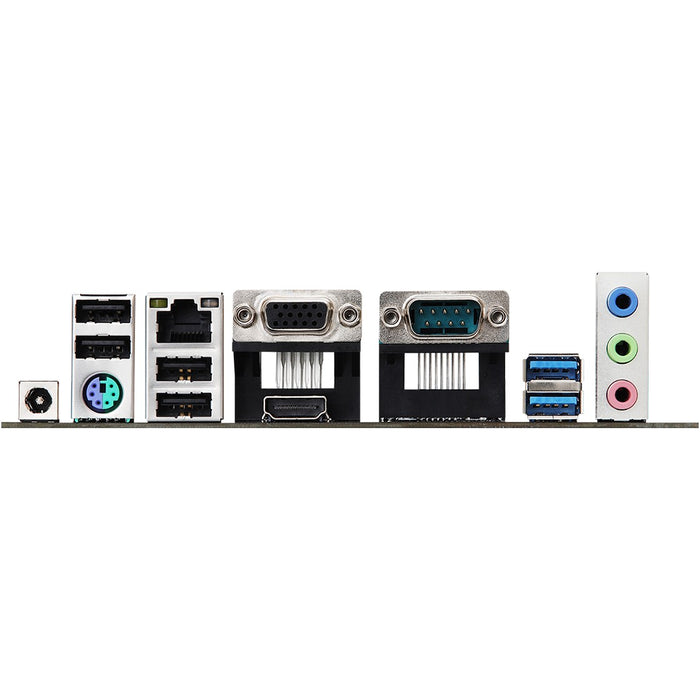

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Feature: Microphone in
Serial ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Features
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: mini ITX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
Weight & dimensions
Width: 170 mm
Depth: 170 mm

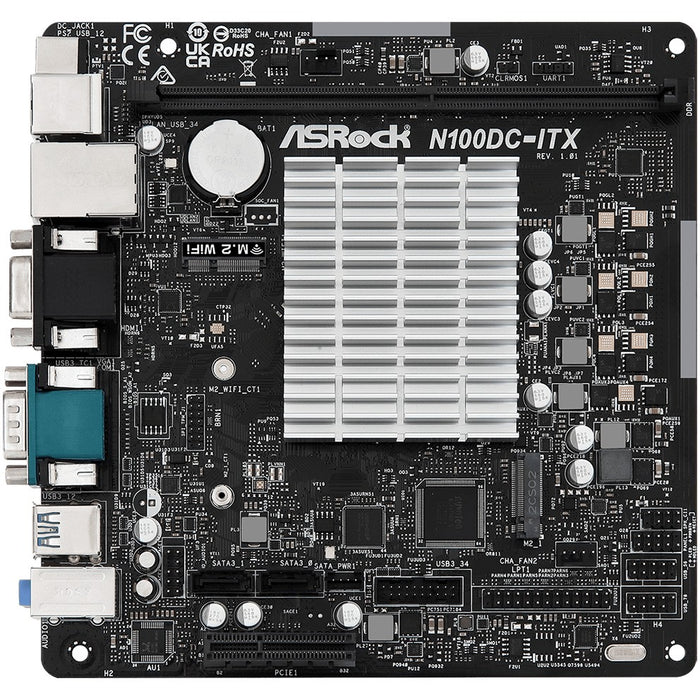

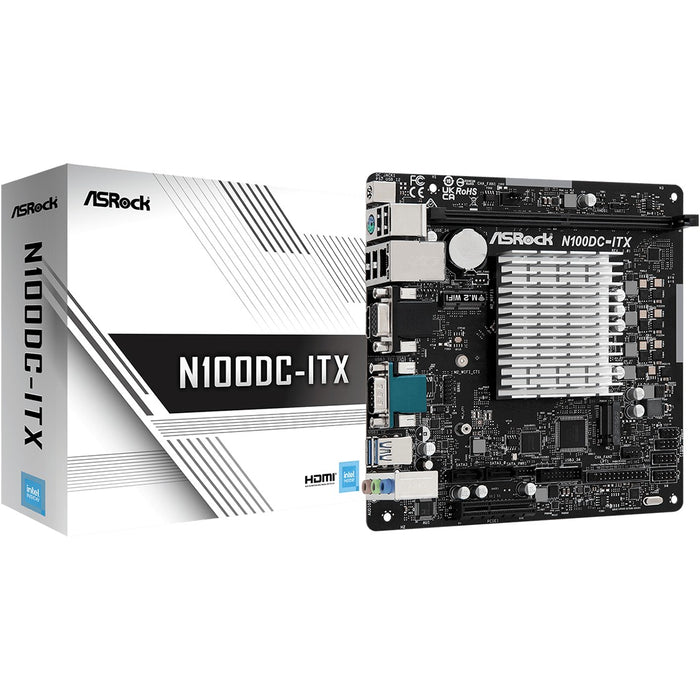

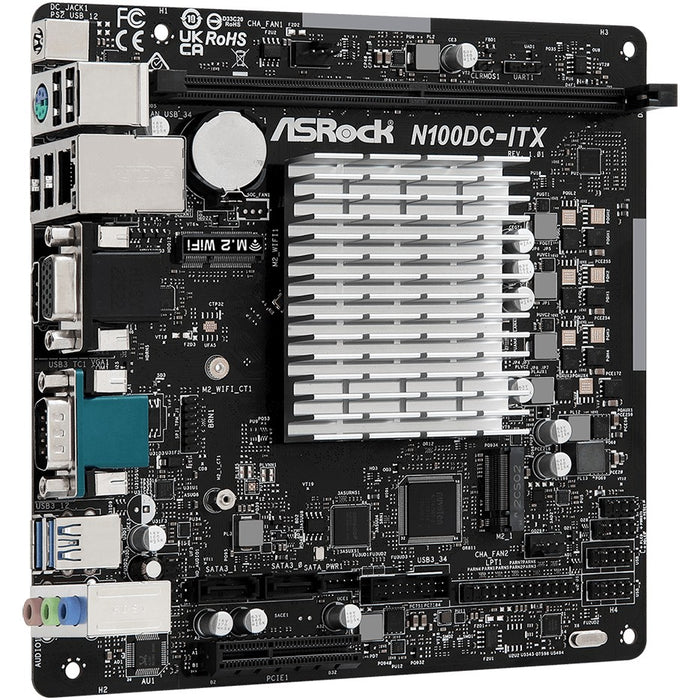

Asrock N100DC-ITX. Processor manufacturer: Intel, Processor socket: NA (integrated CPU), Processor model: N100. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel
ASRock
MBR CODE - 90-MXBLM0-A0UAYZ
EAN - 4710483943188
