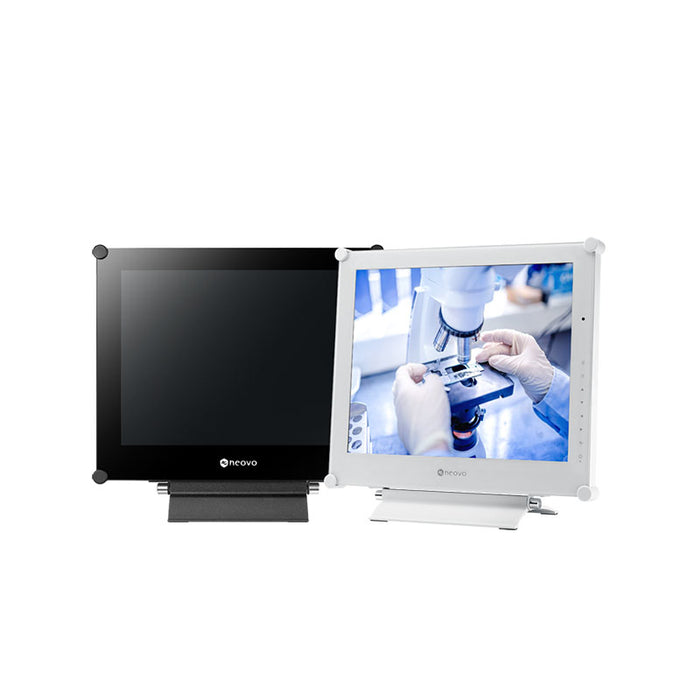

The X-15E 4:3 industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV optical glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
PROTECTIVE GLASS TO WITHSTAND CHEMICAL EXPOSURE
The NeoV Optical Glass attached to the X-15E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT
Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-15E industrial monitor durable for demanding environments.
VERSATILITY, PRODUCTIVITY AND COMPATIBILITY
Visualize critical data and engage with multiple video sources and PC applications with versatile connectivity options, including DisplayPort and HDMI, and PIP/PBP to increase productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY
AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME
Replacing AG Neovo industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION
Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-15E industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.
Display
Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: VA
Backlight type: LED
Display brightness (typical): 300 cd/m²
Response time: 3 ms
Screen shape: Flat
Supported graphics resolutions: 1024 x 768 (XGA)
Contrast ratio (typical): 2000:1
Viewing angle, horizontal: 176°
Viewing angle, vertical: 176°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Industrial
Product colour: White
Housing material: Metal
Ports & interfaces
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2a
Feature: Audio input
Feature: DC-in jack
Ergonomics
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 0 - 20°
Feature: Picture-in-Picture
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 444544
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width (with stand): 380 mm
Depth (with stand): 155 mm
Height (with stand): 359 mm
Weight (with stand): 4.6 kg
Width (without stand): 380 mm
Depth (without stand): 53.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.2 kg
Packaging data
Package width: 470 mm
Package depth: 199 mm
Package height: 460 mm
Package weight: 5.8 kg
Packaging content
Feature: Stand included
Cables included: AC, Audio (3.5mm), VGA
Feature: Quick start guide
Other features
Feature: AC adapter included
Compliance certificates: RoHS, Low Voltage Directive (LVD), WEEE, CE, REACH
Logistics data
Harmonized System (HS) code: 85285210
AG Neovo X-15E. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 3 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 176°, Viewing angle, vertical: 176°. Built-in speaker(s). VESA mounting. Product colour: White
AG Neovo
MBR CODE - X15E00A1E0100
EAN - 4710739595062
