The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.
10-point PCAP Touch Screen
The TX-2202A 22” 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.
Seamless Integration
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.
Front IP65 Dust and Water Protection
This 22” 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.
DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

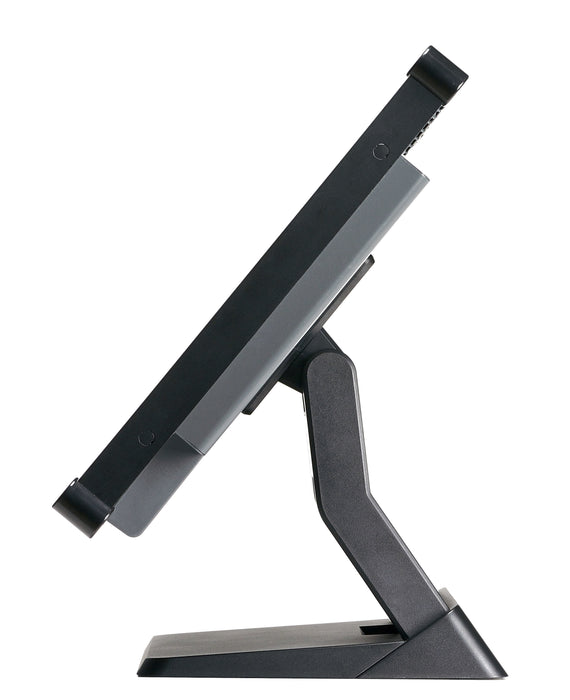

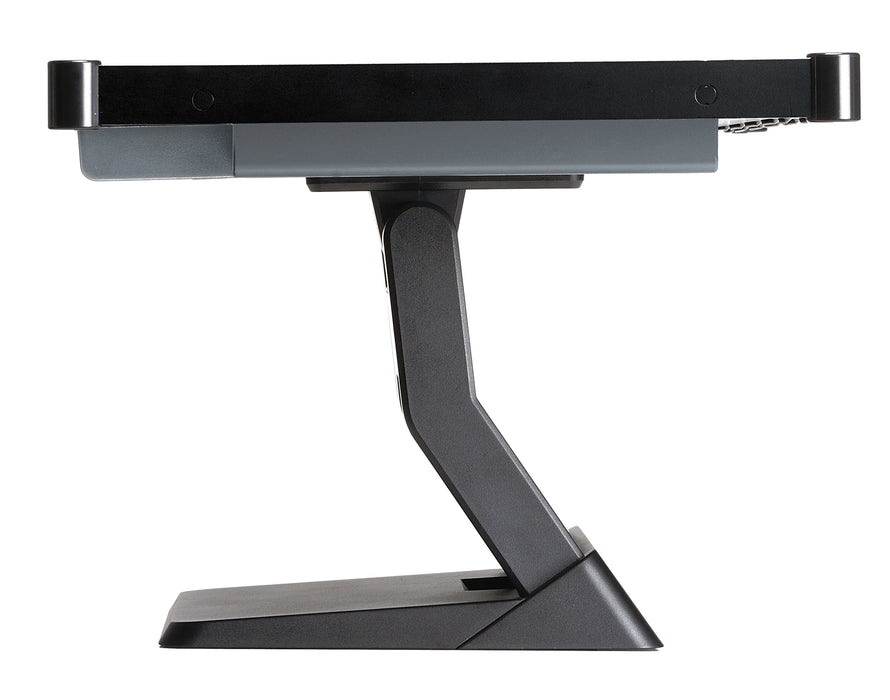

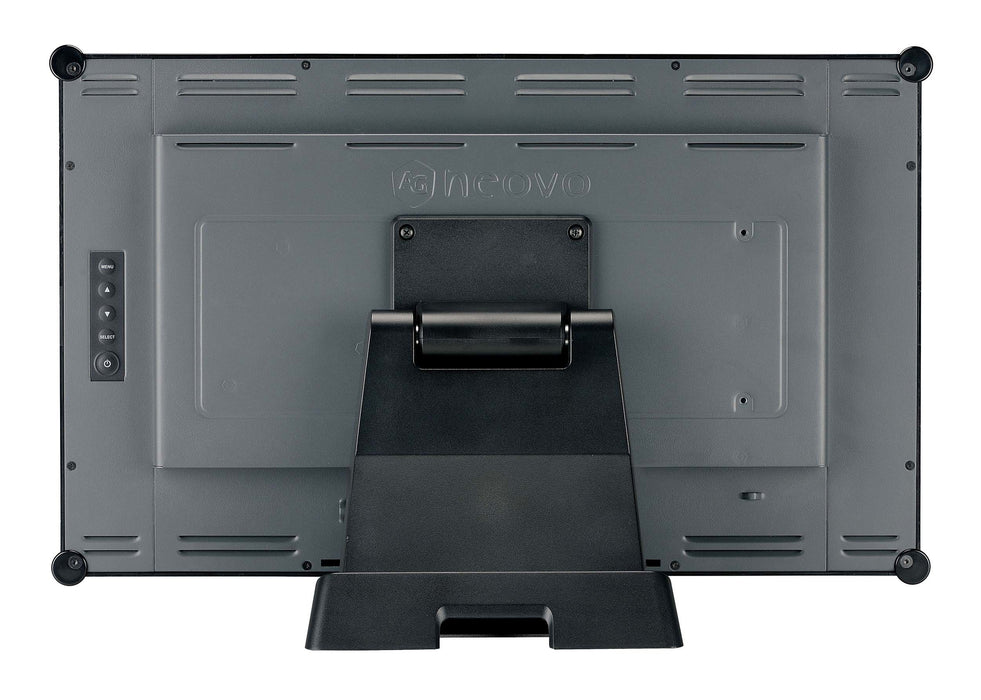

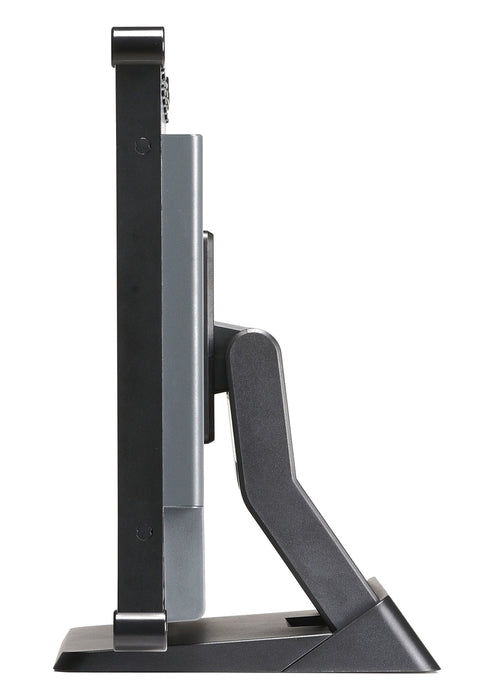

ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING
Thanks to VESA compatibility, the TX-2202A 22” 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

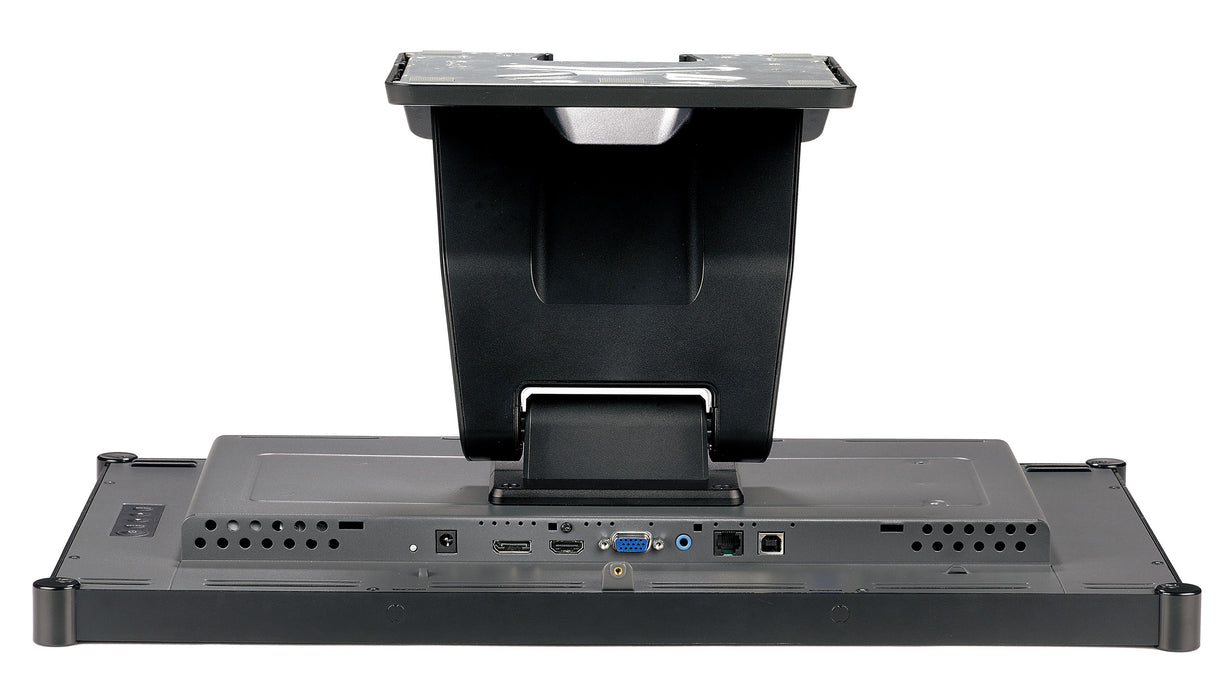

Versatile Connectivity
The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.
Display
Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: Touchscreen
Touchscreen technology: Capacitive
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 30 - 84 kHz
Vertical scan range: 50 - 76 Hz
Haze rate: 25%
Surface hardness: 7H
Performance
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Other operating systems supported: Android
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Office
Product colour: Black
Housing material: Metal
Glass thickness: 2.05 mm
Ports & interfaces
USB upstream port type: USB Type-B
Number of USB Type-B upstream ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Feature: Audio input
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Tilt angle range: -5 - 90°
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 15 W
Power consumption (standby): 0.7 W
Power consumption (off): 0.3 W
Power supply type: External
European Product Registry for Energy Labelling (EPREL) code: 1372216
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
Width (with stand): 528.6 mm
Depth (with stand): 214.2 mm
Height (with stand): 346.7 mm
Weight (with stand): 6.7 kg
Width (without stand): 528.6 mm
Depth (without stand): 48.5 mm
Height (without stand): 324.3 mm
Weight (without stand): 4.8 kg
Packaging data
Package width: 610 mm
Package depth: 320 mm
Package height: 460 mm
Package weight: 9.8 kg
Packaging content
Cables included: AC, Audio, HDMI, USB, VGA
Feature: Power adapter included
Feature: Quick start guide
Sustainability
Feature: Sustainability compliance
Other features
International Protection (IP) code: IP65
Protection features: Dust resistant, Waterproof
Transmission rate: 90%
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
AG Neovo TX-2202A. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
AG Neovo
MBR CODE - TX22A011E0100
EAN - 4710739597967
