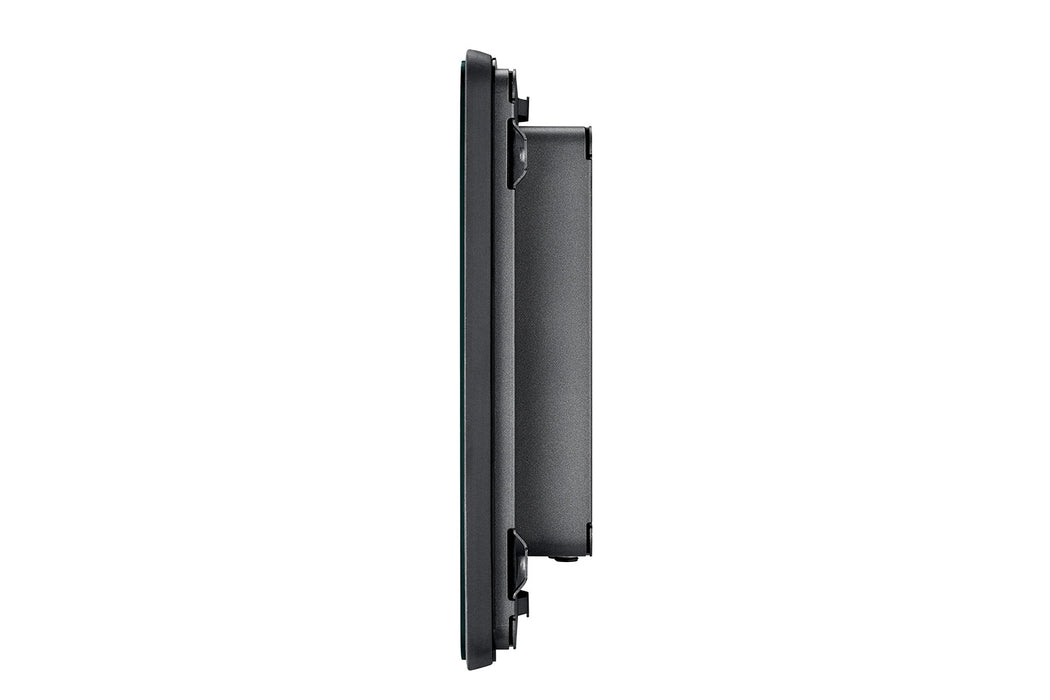

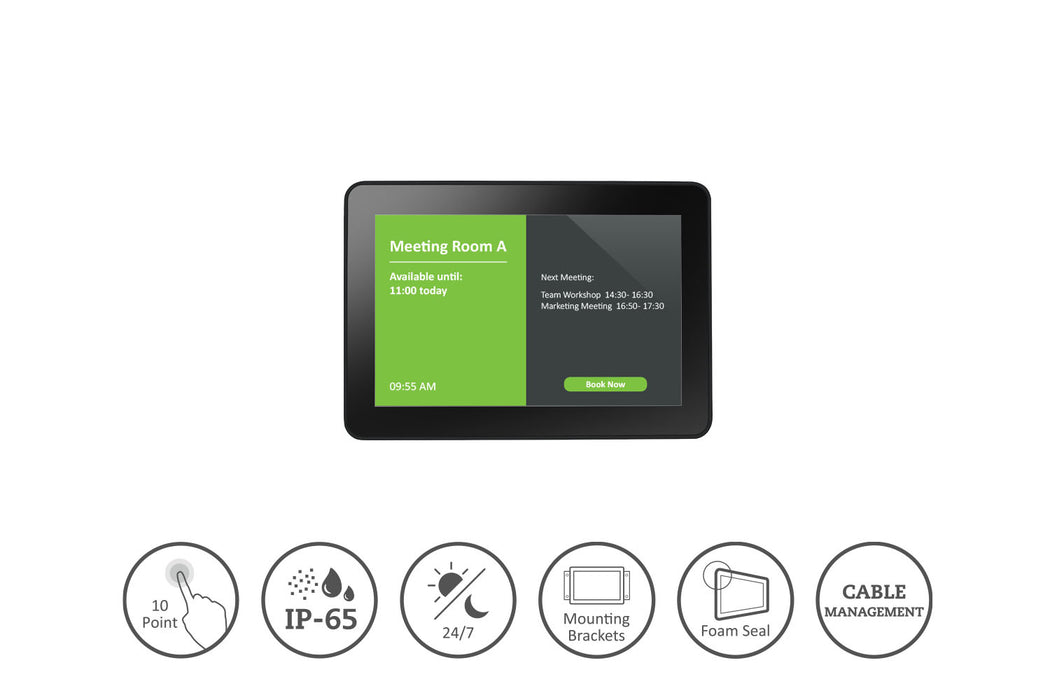

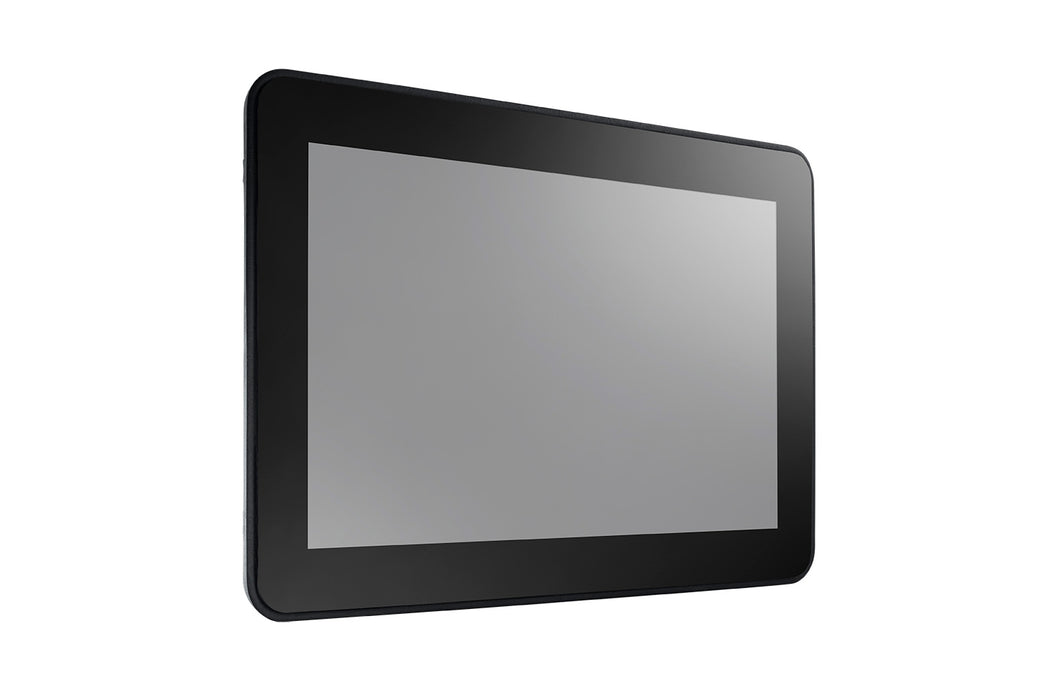

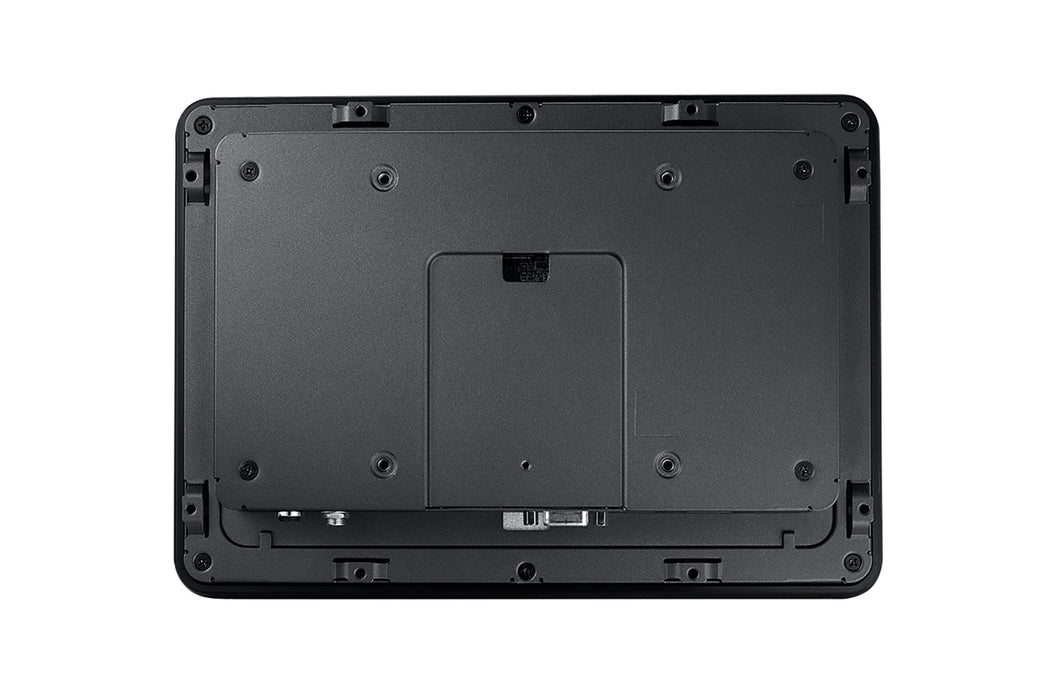

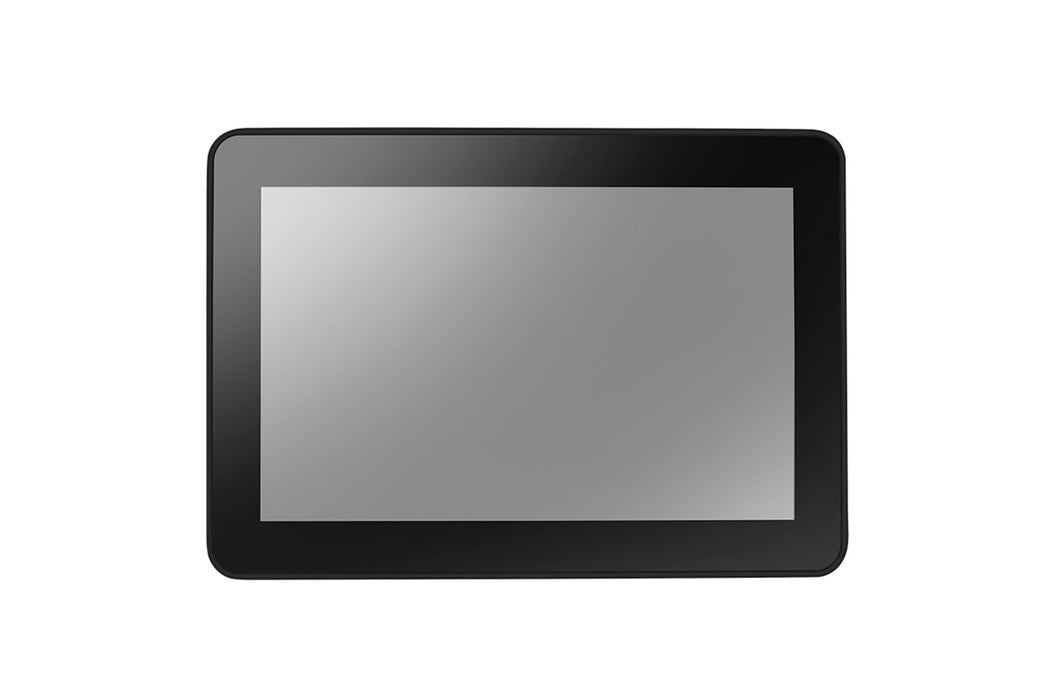

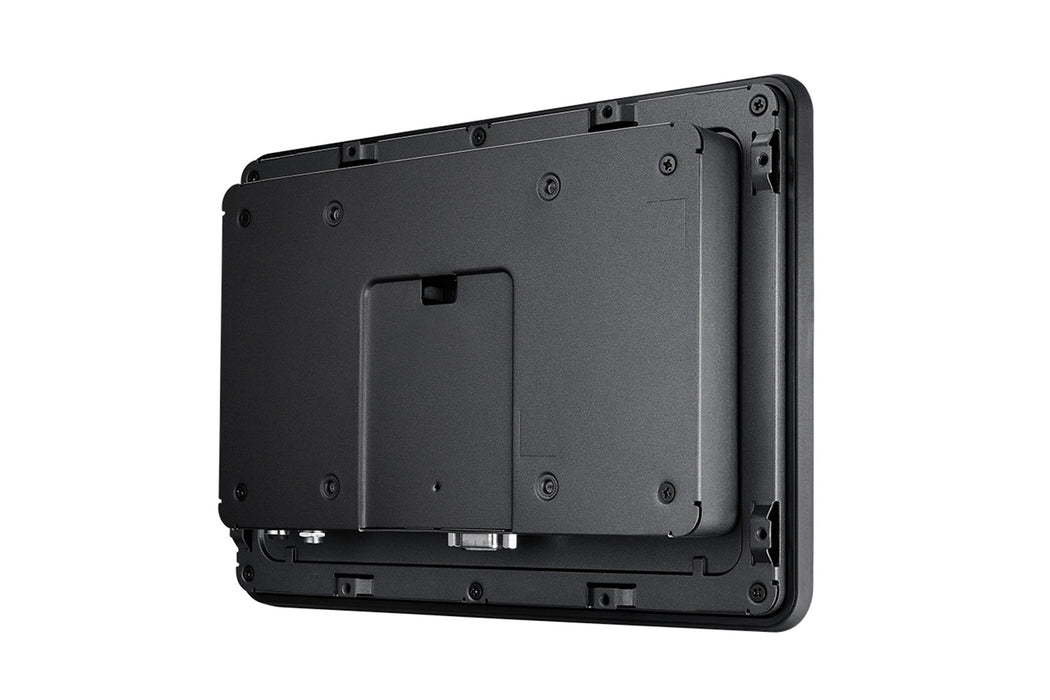

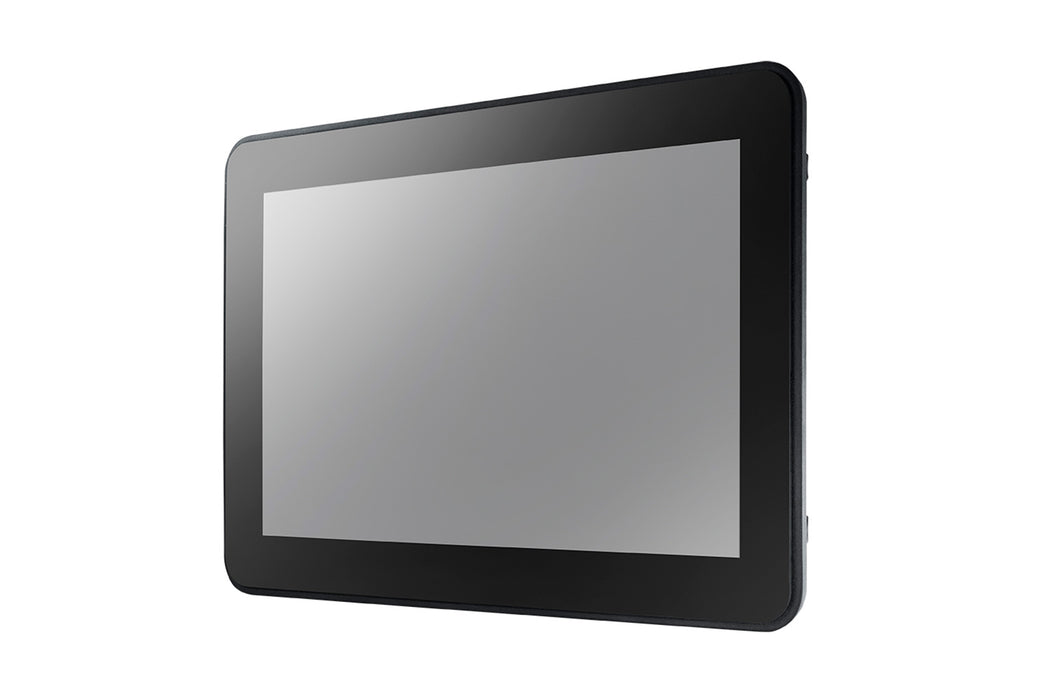

The TX-10 Multi-touch Interactive Display, with its 10.1-inch, 10-point touch screen, brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in a wide variety of application environments—in a meeting room as a scheduling display, or in a number of public, commercial, and industrial interactive applications. Allowing for either landscape or portrait orientation, the TX-10 multi-touch interactive display is the perfect fit.
Display
Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
Display technology: LED
Pixel pitch: 0.169 x 0.169 mm
Maximum refresh rate: 60 Hz
Response time: 5 ms
Contrast ratio (typical): 1300:1
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Design
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: LED indicators
Certification: CE, LVD, BSMI, RoHS, REACH, WEEE
Performance
Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave

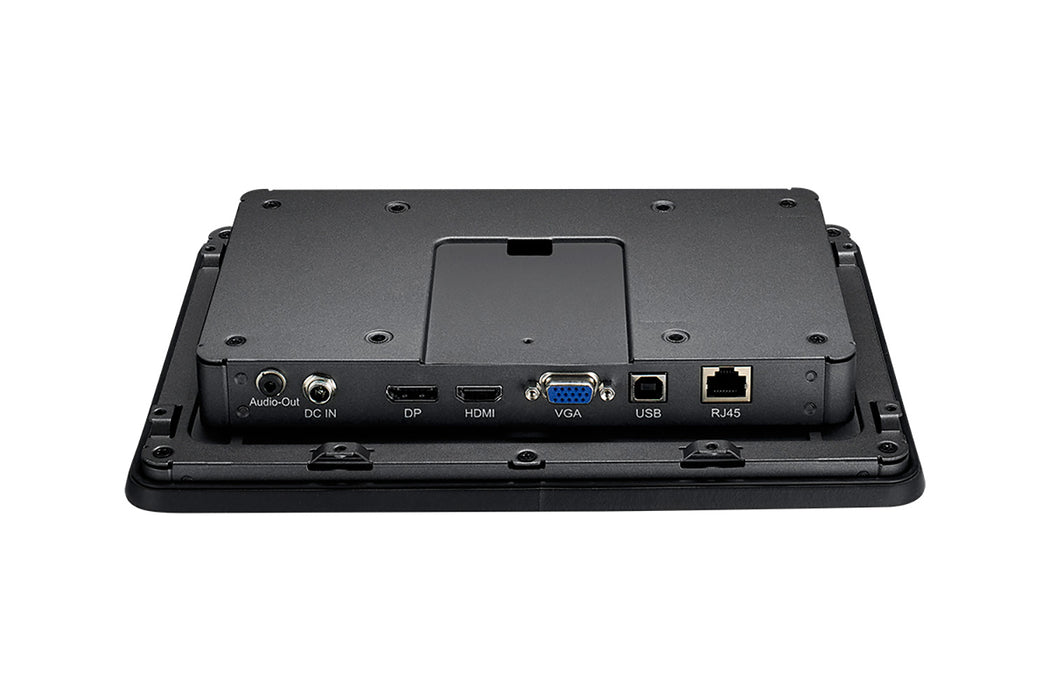

Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.3a
DisplayPorts quantity: 1
Packaging data
Package width: 370 mm
Package depth: 160 mm
Package height: 325 mm
Package weight: 2.4 kg
Packaging content
Cables included: AC, DisplayPort, USB, VGA
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Sustainability
Feature: Sustainability compliance
Technical details
Compliance certificates: CE, REACH, RoHS, WEEE
AG Neovo TX-10. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display technology: LED. Panel mounting interface: 100 x 100 mm, Certification: CE, LVD, BSMI, RoHS, REACH, WEEE. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... HDMI version: 1.3a. Package width: 370 mm, Package depth: 160 mm, Package height: 325 mm
AG Neovo
MBR CODE - TX100011E0100
EAN - 4710739596274
