Be Confident with Supermicro's Application-Optimized Chassis Solutions
Supermicro Chassis Features:
- System Level Optimized Solutions
- Full Range of Rackmount, Workstation & Tower Chassis – mini-1U, 1U, 2U, 3U & 4U
- Support SAS3 12Gb/s & NVMe technology
- Support the latest X11 generation motherboards and Intel® Xeon® Scalable Processors (see X11 optimized chassis)
- Optimized thermal design: better cooling performance, less power consumption
- Up to Titanium Level (96%) High-Efficiency Power Supplies
- High Availability, Adaptability, Scalability and Reliability
- Outstanding Price/Performance Ratio
- Highest Quality Components, Fans & Power Supplies
- Hot-Swappable Redundant Power Supplies, Fans and Drive Trays
- Maximum Storage Capacity
These design advantages have helped Supermicro rapidly establish its reputation as a leader in chassis design. To see the future of chassis designs now, check out our latest chassis solutions. Optimized for the latest x86 processors, these state-of-the-art chassis are equipped with hot-plug heavy-duty fans, fan speed controls and revolutionary air-shroud designs for 100% airflow redundancy.
Design
Form factor: Rack
Type: Server
Product colour: Black
Number of 3.5" bays: 12
Number of expansion slots: 7
Feature: Rack mounting
Feature: Reset button
LED indicators: Fan fail, HDD, Network, Power
Power supply
Feature: Power supply included
Power supply: 1200 W
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
Storage
Supported HDD sizes: 3.5"
Operational conditions
Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 437 mm
Depth: 647 mm
Height: 89 mm
Packaging data
Package width: 678 mm
Package depth: 876 mm
Package height: 290 mm
Package weight: 24.9 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Feature: Backplanes support

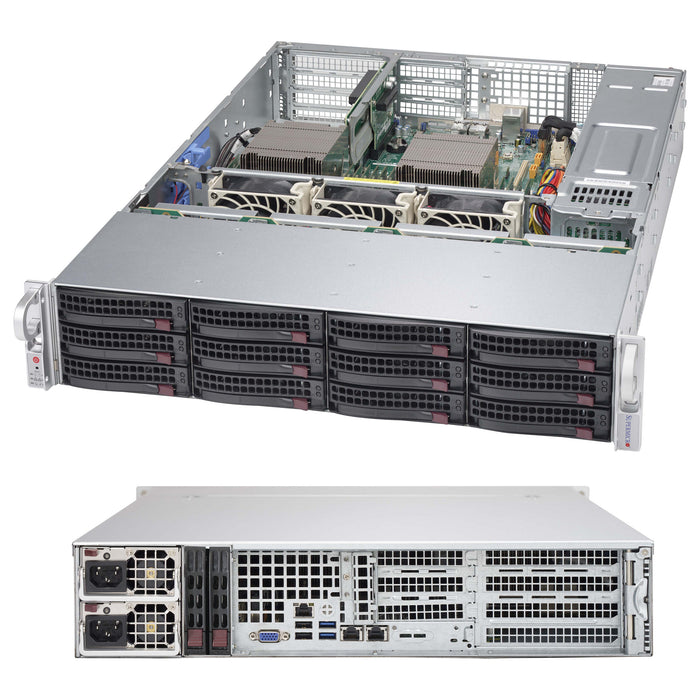

Supermicro SuperChassis 826BAC4-R1K23WB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 1200 W. Supported HDD sizes: 3.5". Width: 437 mm, Depth: 647 mm, Height: 89 mm. Package width: 678 mm, Package depth: 876 mm, Package height: 290 mm
Super Micro
MBR CODE - CSE-826BAC4-R1K23WB
EAN - 0672042298860
