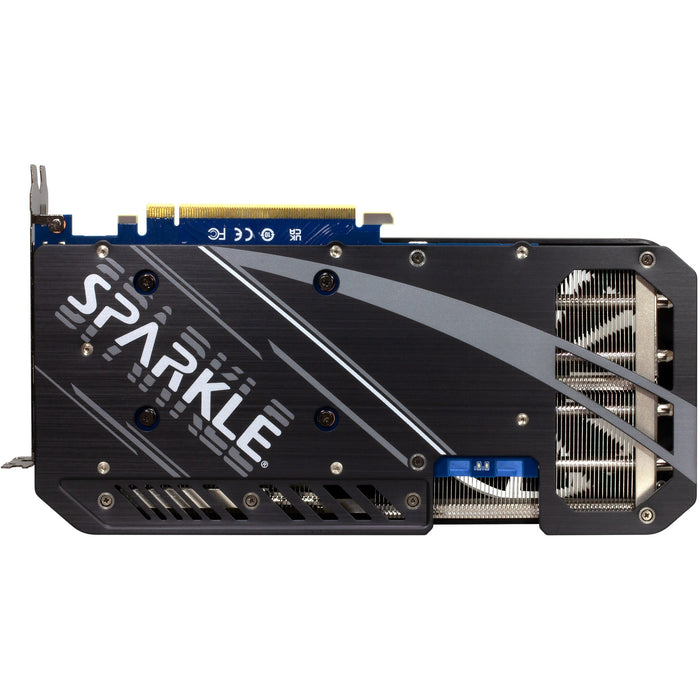

The SPARKLE Intel Arc A770 ROC OC Edition is the brand-new BEST choice of the series, comes with
Intel Arc A770 and 16GB GDDR6. This card is designed for ultimate gaming experience and
maximum productivity.

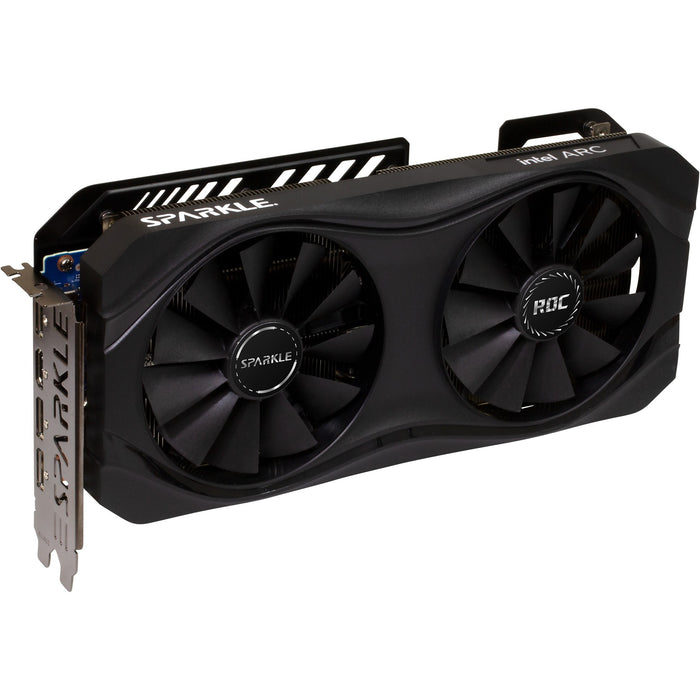

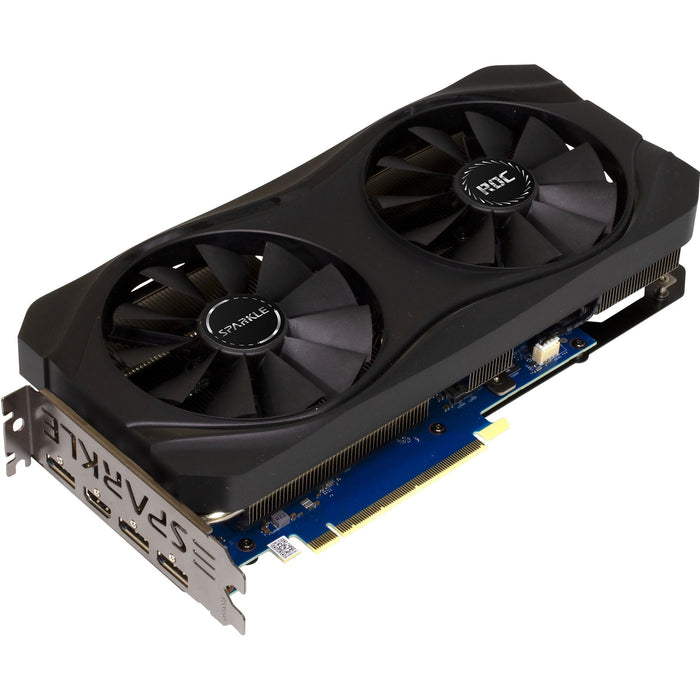

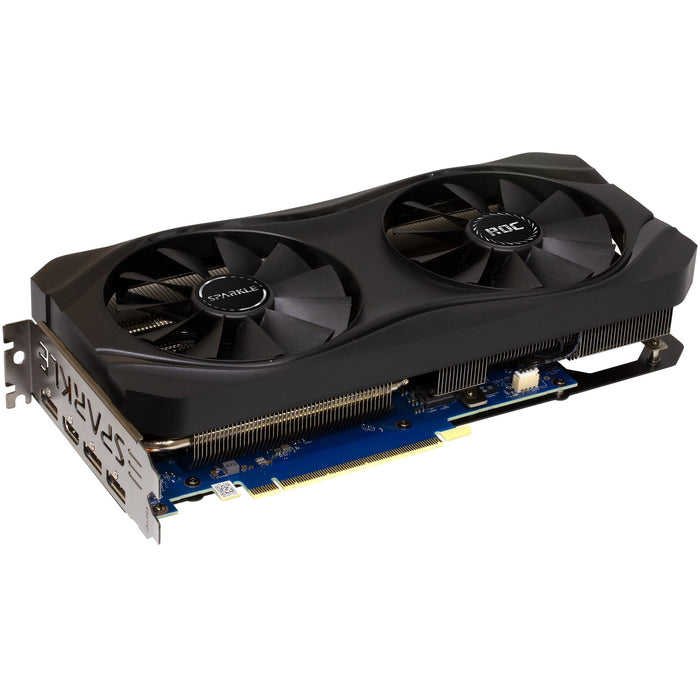

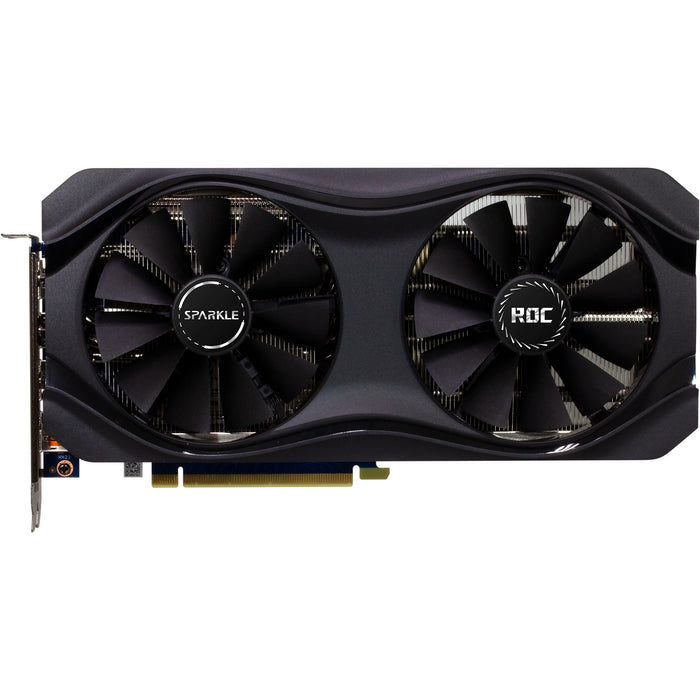

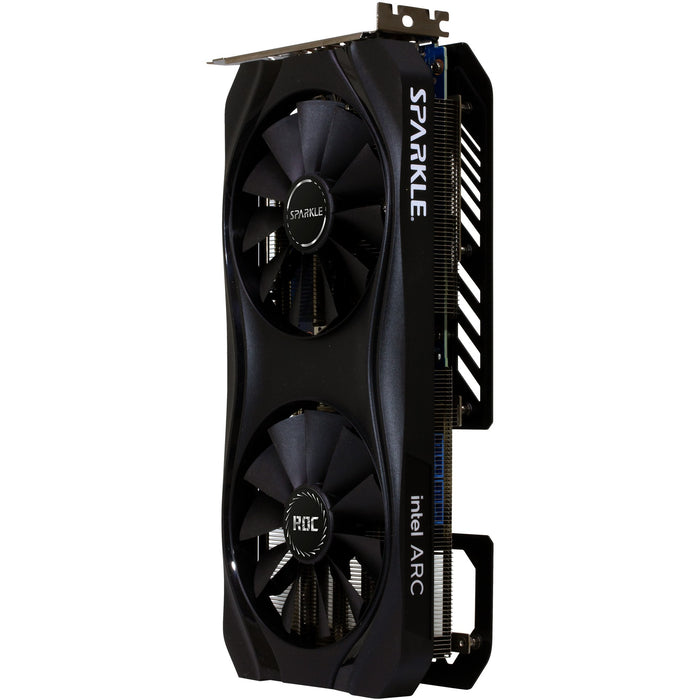

ROC series equipped dual 100mm double-ball bearing fan with 2.5-slot heatsink design, reduce the
length of card effetely and ready to fit into the compact system. Furthermore, 100mm DBB fans have
brought the higher efficiency of cooling, lead to an ultra-silence experience without compromising
performance.
Processor
Graphics processor family: Intel
Graphics processor: Arc A770
Processor boost clock speed: 2300 MHz
Maximum resolution: 7680 x 4320 pixels
Ray accelerators: 32
Memory
Discrete graphics card memory: 16 GB
Graphics card memory type: GDDR6
Memory bus: 256 bit
Data transfer rate: 17.5 Gbit/s
Memory bandwidth (max): 560 GB/s

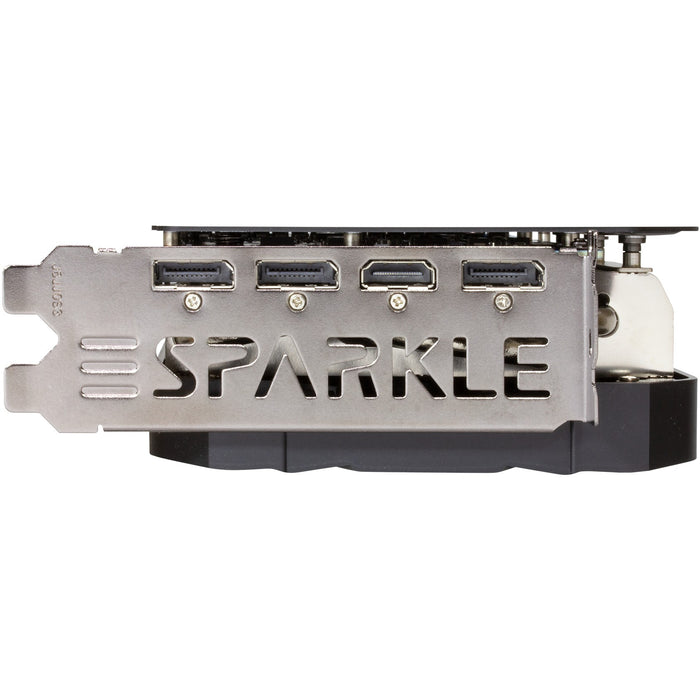

Ports & interfaces
Interface type: PCI Express 4.0
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 3
DisplayPort version: 2.0
Performance
DirectX version: 12 Ultimate
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 512
Xe-cores: 32
Video formats supported: AV1, VP9
Design
Cooling type: Active
Number of fans: 2 fan(s)
Number of slots: 2.5
Product colour: Black
Power
Minimum system power supply: 650 W
Power consumption (typical): 225 W
System requirements
Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Ubuntu 22.04
Weight & dimensions
Weight: 360 g
Length: 281 mm
Depth: 51 mm
Height: 131 mm
Sparkle Technology Intel Arc A770 ROC OC Edition. Graphics processor family: Intel, Graphics processor: Arc A770. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Sparkle
MBR CODE - SA770R-16GOC
EAN - 4711342290573
