Your Canvas for Digital Art

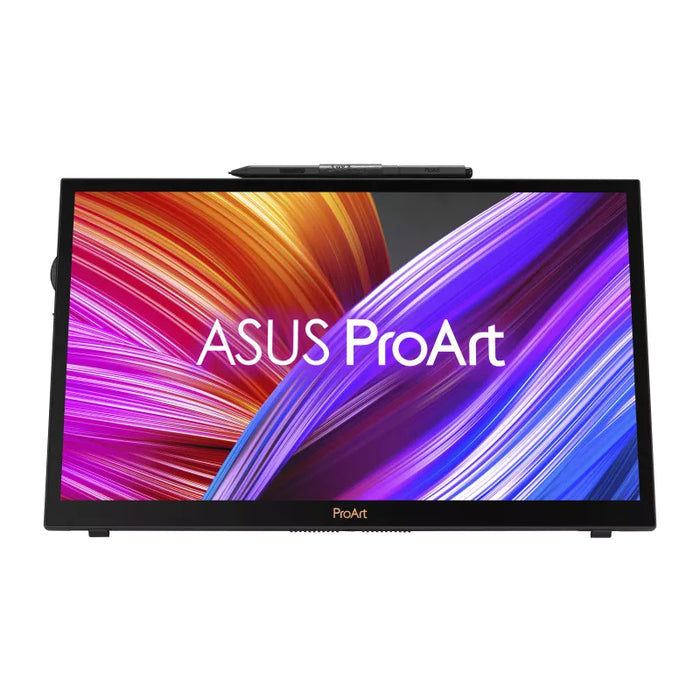

ASUS ProArt PA169CDV Pen Display features a 15.6-inch, 10-bit, 4K UHD, IPS panel. It’s bundled with the ProArt Pen featuring Wacom EMR technology for great drawing experiences. PA169CDV is the world’s first portable monitor that’s both PANTONE® Validated and Calman Verified to ensure exceptional color accuracy. The ergonomic PA169CDV includes innovative upper and lower kickstands that allow for different tilt angles, making it easy to switch between daily productivity and creative workflows.

Built for Creators

Ready for that Creative Spark
With ProArt Display PA169CDV, you’re ready whenever inspiration strikes comes. Built-in Wacom EMR technology and a bundled ProArt Pen enable a natural and precise drawing feel when creating content or editing artwork.

Streamline Your Workflow
The 4K UHD panel is both PANTONE Validated and Calman Verified to ensure sharper, detailed and more vivid colors, making it the perfect choice for a second display – or even a main screen. Either way, the perfection needed for both creation and color validation is assured.

Impeccably-detailed Visuals
With a 4K UHD (3840 x 2160) panel, you’ll enjoy 4X pixel density and up to 300% more on-screen working space than similarly-sized Full HD (FHD) displays. Up to 400 nits of brightness and VESA DisplayHDR 400 certification delivers brighter, more lifelike viewing experiences, so every image is sharp, detailed and a pleasure to view.

Create Precisely

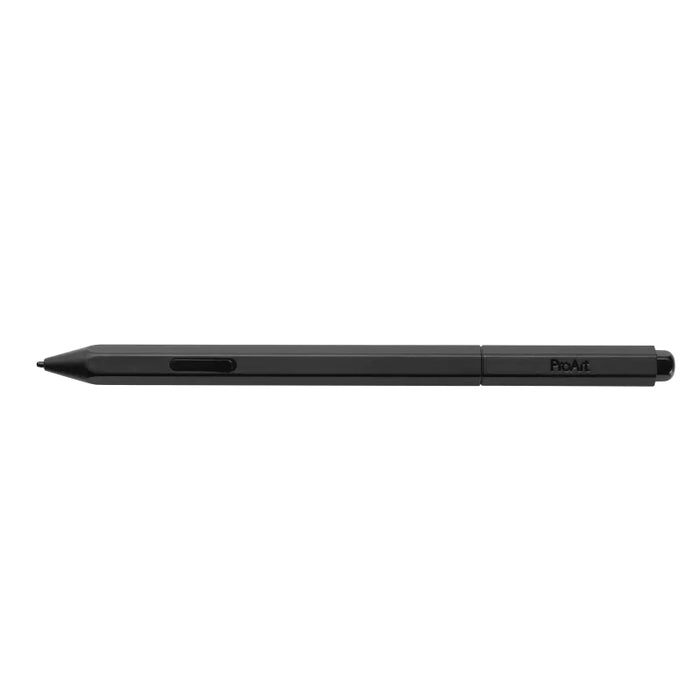

Like ProArt Display PA169CDV, the all-new ProArt Pen also implements Wacom EMR technology. It’s battery-free and lightweight to support endless creativity, and it accurately detects every hand movement, even when tilted at up to 40 degrees for angled strokes. So, whether you’re drawing fast or slow, creating thick or thin lines, or finely shading areas, ProArt Pen feels intuitive and precise. Its sensitive to 4096 pressure levels and comes with two interchangeable pen nibs to suit any drawing or writing style. In short, creating with ProArt Pen feels just like using a real pen or brush!

ProArt Display PA169CDV has a fully-laminated screen to minimize parallax, offering pixel-precise accuracy so the cursor is exactly where you want it to be, replicating the sensation of pen on paper for natural drawing experiences. It’s also treated with fingerprint-resistant, anti-glare coating – so it fends off fingerprints and distracting reflections.

Enjoy True-to-life Color

Photorealistic Color
ProArt Display PA169CDV delivers exceptionally-detailed and realistic visuals, with 10-bit color depth, 100% sRGB, 100% Rec.709, and cinema-grade DCI-P3 color-gamut support. This means that the colors reproduced on the display are richer and more vivid: it’s ideal for color-intensive projects, but also enhances any kind of content.

Experience Full Color
Revel in pure, expressive hues — thanks to accurate, true-to-life color reproduction. Delta E < 2 color accuracy means your images are accurately reproduced on screen, so you can see exactly how they’ll turn out.

Pre-Calibrated for Out-of-the-Box Accuracy
Color professionals rely on color-accurate displays to ensure that their creations render as intended. To ensure precise color accuracy, each PA169CDV is pre-calibrated at the factory. This remarkable display is both PANTONE® Validated and Calman Verified, and has a Delta-E color-accuracy value of less than 2. It also undergoes meticulous testing to ensure smooth color gradation and to guarantee the very best visuals.

Create in Convenience

Slim and Lightweight
The thin 12.1 mm profile and overall weight of just 1.07 kg makes ProArt Display PA169CDV incredibly portable. Its frameless design maximizes screen area and screen-to-body ratio for incredible productivity and entertainment, anywhere.

Built-in Adjustable Kickstands

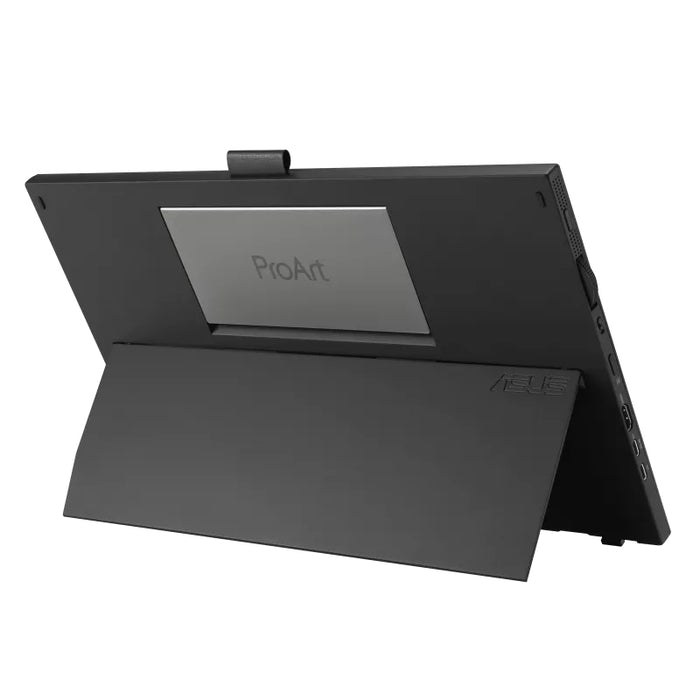

ProArt Display PA169CDV features two built-in ergonomic kickstands. The lower kickstand provides the ideal viewing angle for everyday productivity, while engaging the upper prop tilts the display at a shallow 17° angle for comfortable creativity.

Rich Connectivity

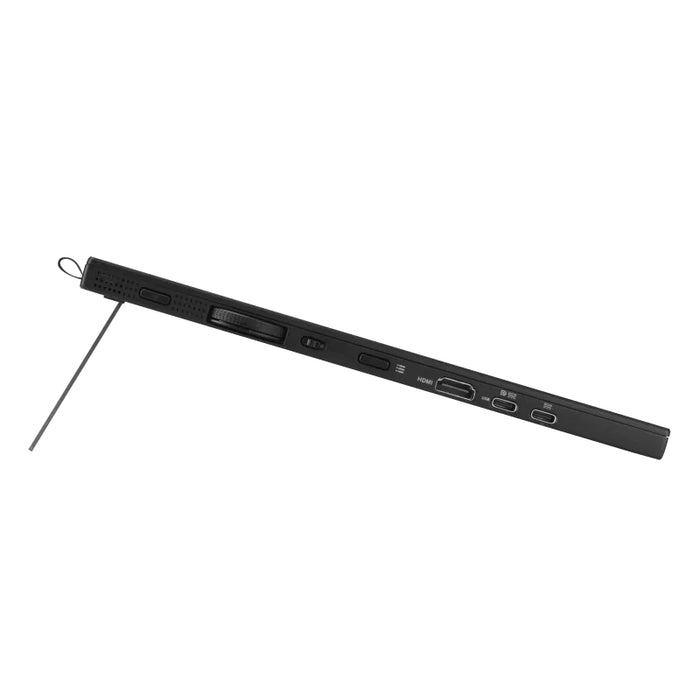

PA169CDV offers a host of ports to cater to your creative needs, including a single-cable USB-C solution that supports DisplayPort™ Alt Mode and power input simultaneously. Plus, there’s another USB-C port solely for the power adaptor. There’s additional flexibility in the shape of an HDMI port, making it easy to connect PA169CDV to a wide variety of input sources.
*Connected device requires USB Type-C connectivity. (DisplayPort Alt Mode and at least 15 W power output required).
*Monitor brightness and speaker sounds will be limited when using the single-cable solution.

Harness your creative potential with the ProArt Creator Hub app. The app provides a unified experience across all your connected ProArt Displays to optimize your workflows. There’s also a new Color Control that helps you optimize color tools: we’ve collaborated with Pantone® to provide digital color data that will help you express your wild creativity.

Creativity with a Spin
Discover new ways to work with the exclusive ASUS Dial, an intuitive physical controller that provides instant and precise fingertip control over parameters in creative apps. A switch by the dial allows you to select either stepped or stepless mode for intuitive control. Customized shortcuts enable you to zoom in and out of images or adjust brush size by simply turning the ASUS Dial. You can even tailor the default interface to suit your own work style.
*ProArt Creator Hub for Microsoft Windows only.

Intuitive Control at Your Fingertips
ASUS Control Panel is an exciting virtual interface designed to give you intuitive, precise control over creative apps such as Adobe software, DaVinci Resolve, Clip Studio Paint, and more. With the fully-customizable dial, slider, button, and scroll touch controls, you can easily assign controls to change brush size or saturation.
*ProArt Creator Hub for Microsoft Windows only.
**10-point touch function will depend on the operating system.

Color Management
With the new Color Management feature you can easily capture and analyze any color on your screen with Screen Color Picker, and immediately see all the color data for your reference with Color Analysis. It’s really handy when creating, and you can use the Picture Extractor extract colors from uploaded material to create your own Color Palette to build your personal color preferences. ProArt Creator Hub also provides ASUS Color Trend and ASUS Palette to inspire your creativity.
*ProArt Creator Hub for Microsoft Windows only.
Display
Display diagonal: 39.6 cm (15.6")
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Backlight type: LED
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 500 cd/m²
Display brightness (typical): 450 cd/m²
Response time: 10 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 15000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.09 x 0.09 mm
Pixel density: 282 ppi
Viewable size, horizontal: 34.6 cm
Viewable size, vertical: 19.4 cm
Digital horizontal frequency: 29 - 160 kHz
Digital vertical frequency: 40 - 60 Hz
High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
Colour depth: 10 bit
sRGB coverage (typical): 100%
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
Number of USB Type-C upstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 2.0
Feature: DC-in jack
Ergonomics
Feature: Pivot
Pivot angle: 0 - 90°
Feature: Tilt adjustment
Tilt angle range: 54 - 75°
Power
Energy efficiency class (SDR): E
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 12 kWh
Energy consumption (HDR) per 1000 hours: 16 kWh
Power consumption (typical): 15 W
Power consumption (off): 0.3 W
Power consumption (PowerSave): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Width (without stand): 370 mm
Depth (without stand): 12 mm
Height (without stand): 237 mm
Weight (without stand): 1.07 kg
Packaging data
Package width: 539 mm
Package depth: 323 mm
Package height: 107.5 mm
Package weight: 2.95 kg
Package type: Box
Other features
Certification: Energy StarTÜV Flicker-freeTÜV Low Blue LightVESA DisplayHDR 400Calman VerifiedPantone Validated
