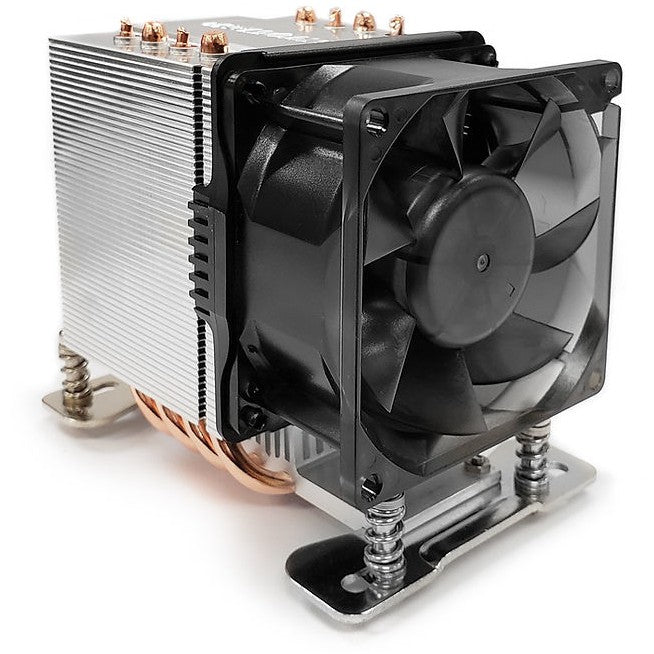

A35
Recommend for AMD® Ryzen Threadripper Processor, Socket sWRX8, sTRX4 and TR4, and AMD® Epyc Processor Socket SP3, Aluminum Heatsink with Heatpipe Embedded, Active Cooler for 3U Server and up, Workstations, Support CPU power up to 280 Watts heat dissipation.
Performance
Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: Socket SP3, Socket TR4, Socket sTRX4
Compatible processor series: AMD Ryzen™ Threadripper™
Number of speeds: 3
Rotational speed (min): 800 RPM
Rotational speed (max): 3800 RPM
Noise level (low speed): 16 dB
Noise level (high speed): 48.8 dB
Minimum airflow (imperial): 13.7 cfm
Maximum airflow: 68.4 cfm
Minimum air pressure: 0.4 mmH2O
Maximum air pressure: 10.1 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Fan noise level (min): 16 dB
Fan noise level (max): 48.4 dB
Fan bearing technology: Double ball bearing
Quantity per pack: 1 pc(s)
Design
Product colour: Aluminium, Black
Material: Aluminium, Copper, Plastic
Radiator material: Aluminum
Number of fans: 1 fan(s)
Fins material: Aluminium
Number of heat pipes: 4
Fan connector: 4-pin
Rack capacity: 3U
Power
Power supply: 8.2 W
Voltage: 12 V
Thermal Design Power (TDP): 280 W
Weight & dimensions
Width: 82 mm
Depth: 120 mm
Height: 110 mm
Weight: 600 g
Fan dimensions (W x D x H): 80 x 80 x 38 mm
Fan thickness: 3.8 cm
Technical details
Compliance certificates: RoHS, WEEE
Packaging content
Feature: Mounting kit
Other features
Feature: Thermal grease
Dynatron A35. Type: Air cooler, Fan diameter: 8 cm, Number of speeds: 3, Rotational speed (min): 800 RPM, Rotational speed (max): 3800 RPM, Minimum air pressure: 0.4 mmH2O, Maximum air pressure: 10.1 mmH2O, Bearing type: Ball bearing. Voltage: 12 V. Width: 82 mm, Depth: 120 mm, Height: 110 mm. Product colour: Aluminium, Black
Inter-Tech
MBR CODE - 88885512
EAN - 4260455645201
