PURE, WHITE STYLING

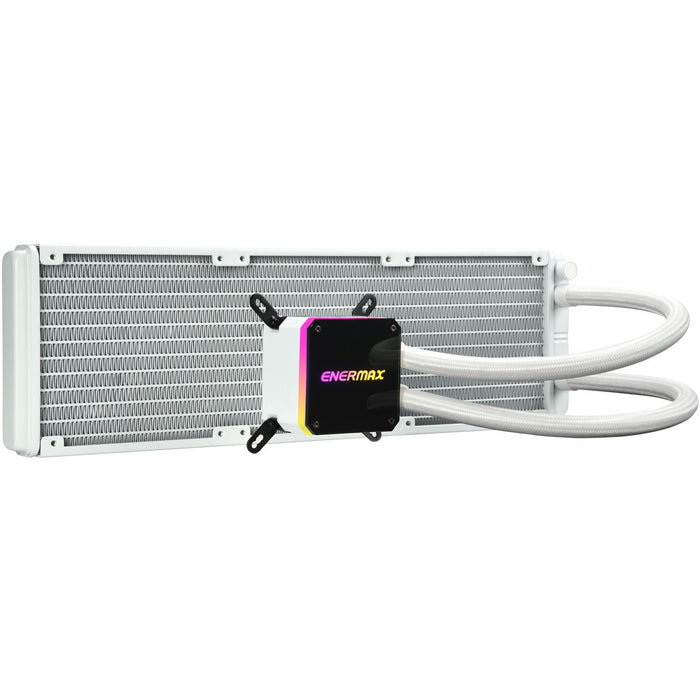

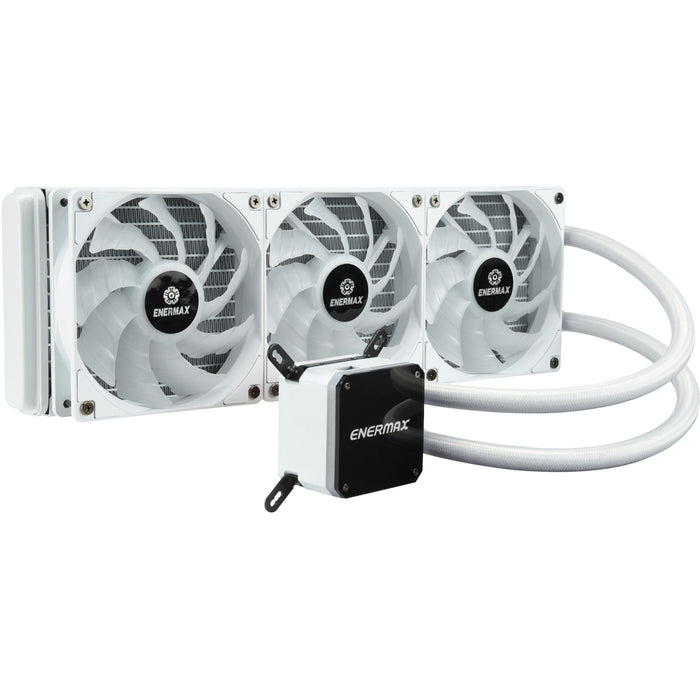

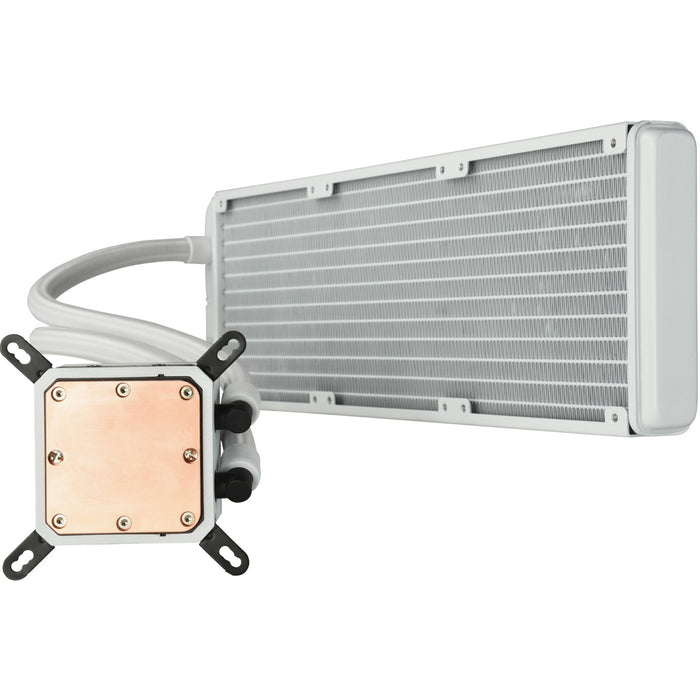

The white CPU AIO liquid cooler composed of white fan frames, tube, and radiator to show your system’s uniqueness and addressable RGB lighting effects

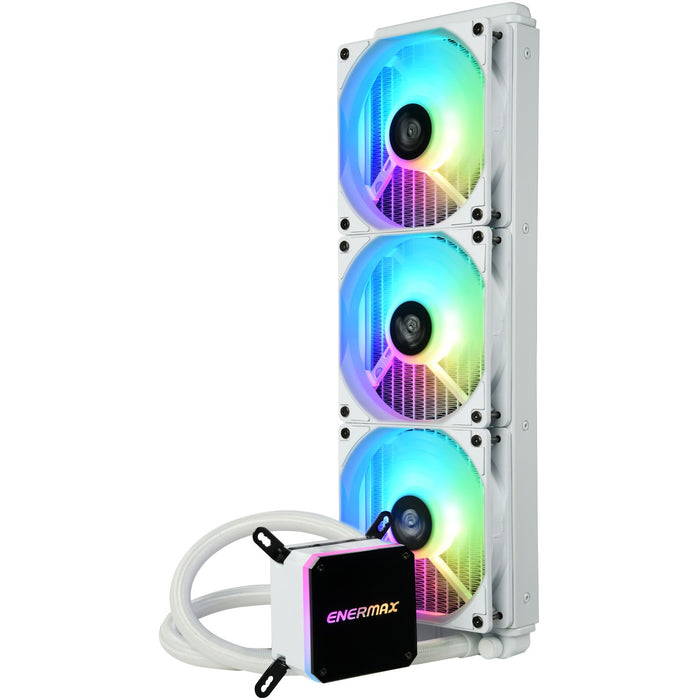

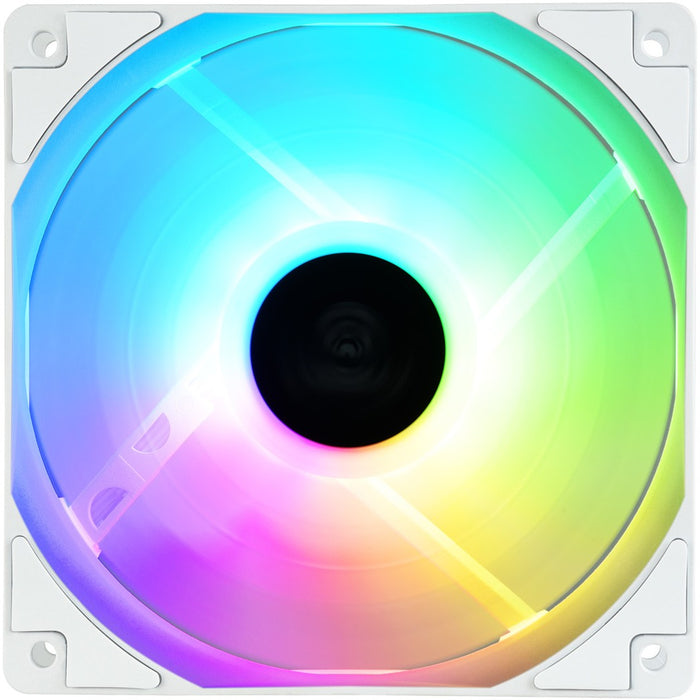

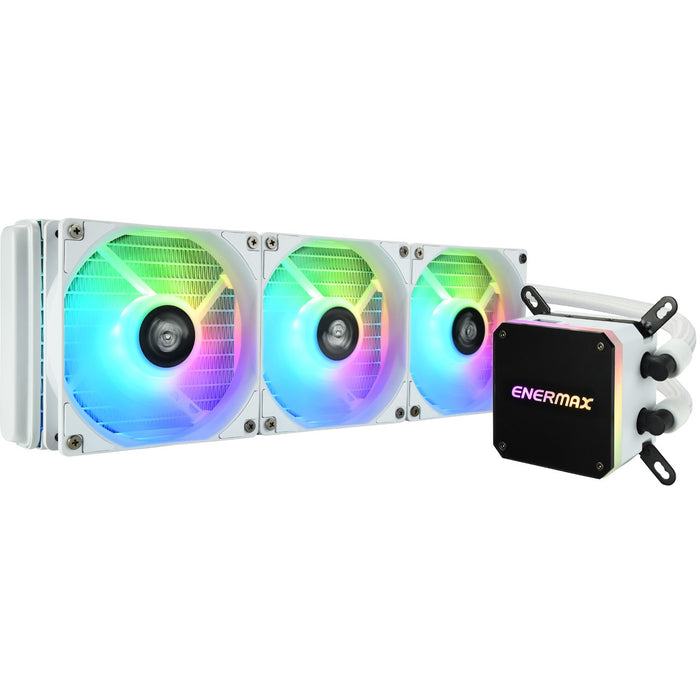

THE LUMINOUS ADDRESSABLE RGB FAN
AND AURABELT™ WATER BLOCK
Display gorgeous lighting effects with 16.8 million colors, for users to experience RGB lighting wonderland
2 WAYS TO CONTROL RGB LIGHTING EFFECTS
Through Motherboard Software
Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G) Note: To use Razer Chroma to control lighting effects, your motherboard needs to be compatible with Razer Chroma
Through ENERMAX RGB Control Box
Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed

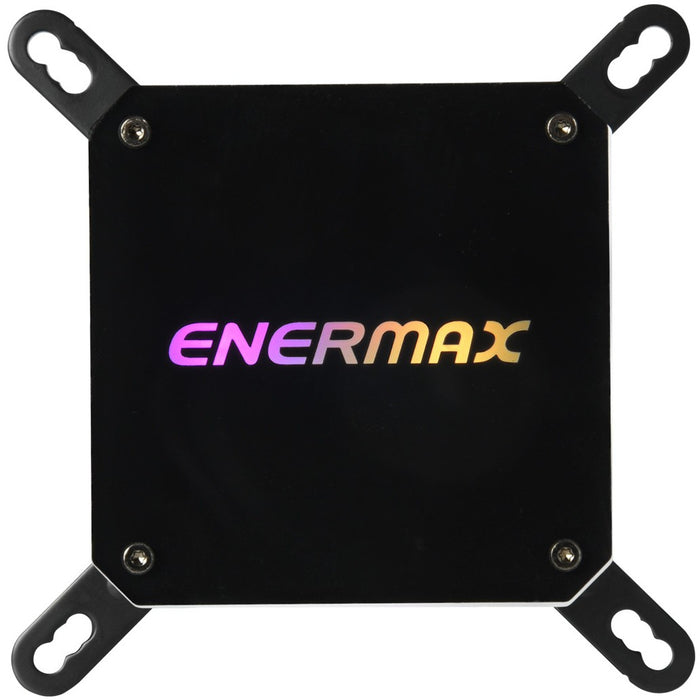

Patented Dual Chamber Design water block
Isolate the pump from the heat to prolong the cooler’s lifetime
Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

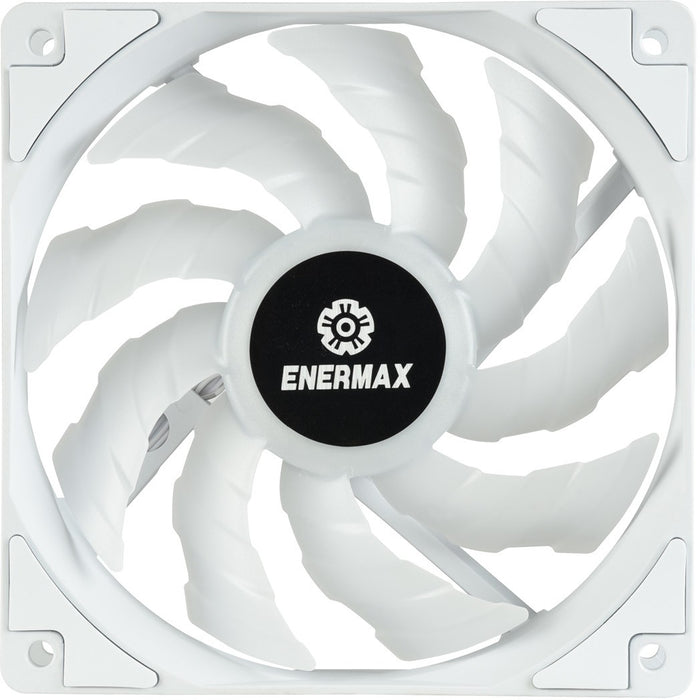

Exclusive dual-convex blades
Create down force air pressure
(max. 1.98mmH2O) and high-volume air flow
(max. 72.1CFM) to dissipate the radiator
heat efficiently
400mm Weaved Tubing
Flexible and easy to installation beacuse of perfect tube length for mainstream system builds
Anti-vibration rubber pad on four-side fan frame
Absorb the vibration during the operation and provide a silent surroundings while operatin
QUICK AND EASY MOUNTING SYSTEM
Provide all-in-one bracket plate and support latest AMD & Intel socket. (including LGA1200 socket)
*Not compatible with AMD socket TR4, SP3
Performance
Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Minimum airflow (imperial): 22.5 cfm
Maximum airflow: 72.1 cfm
Feature: Pulse-width modulation (PWM) support
Fan noise level (min): 14 dB
Fan noise level (max): 27 dB
Pump bearing technology: Ceramic bearing
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 1600 RPM
Fan static pressure: 1.98 mmH2O
Pump's mean time to failure (MTTF): 50000 h
Fan's mean time to failure (MTTF): 50000 h
Design
Product colour: White

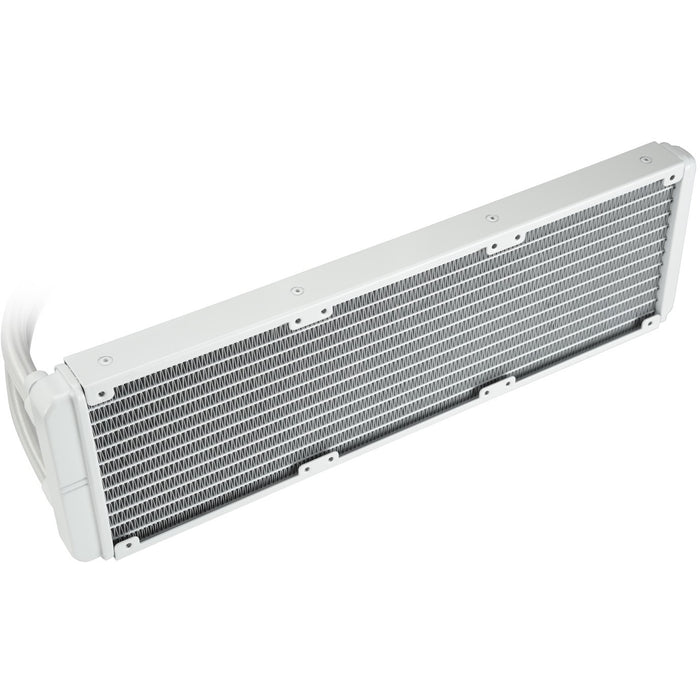

Radiator material: Aluminium
Base plate material: Copper
Feature: Illumination LED
Fan connector: 4-pin
Power
Thermal Design Power (TDP): 360 W
Pump voltage: 12 V
Pump current: 400 mA
Fan current: 0.17 A
Weight & dimensions
Radiator width: 39.4 cm
Radiator depth: 12 cm
Radiator height: 2.7 cm
Fan thickness: 2.5 cm
Package width: 448 mm
Package depth: 205 mm
Package height: 137 mm
Package weight: 2.19 kg
Packaging content
Package type: Box
LED controller interface: 3-pin
Other features
Feature: Thermal grease
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 467 mm
Master (outer) case length: 292 mm
Master (outer) case height: 440 mm
Master (outer) case gross weight: 9.79 kg
Enermax ELC-LMT360-W-ARGB. Type: All-in-one liquid cooler, Fan diameter: 12 cm. Product colour: White
Enermax
MBR CODE - ELC-LMT360-W-ARGB
EAN - 4713157725387
