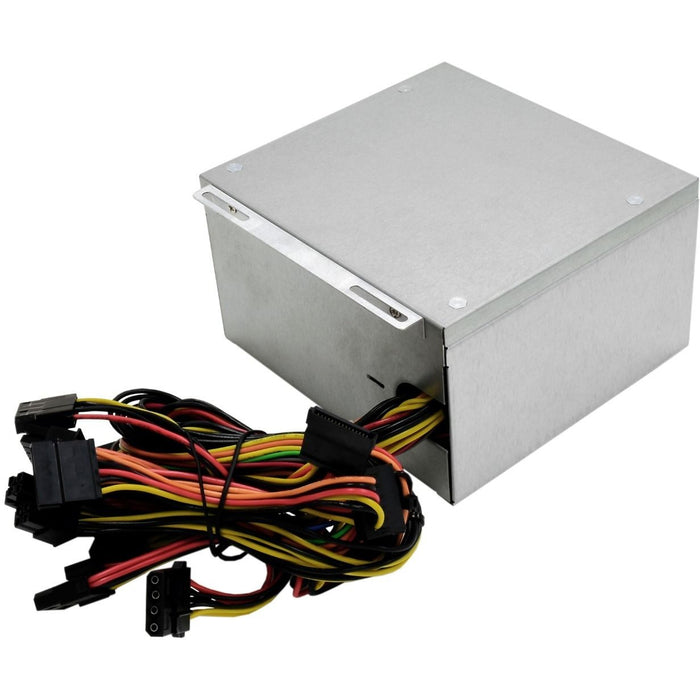

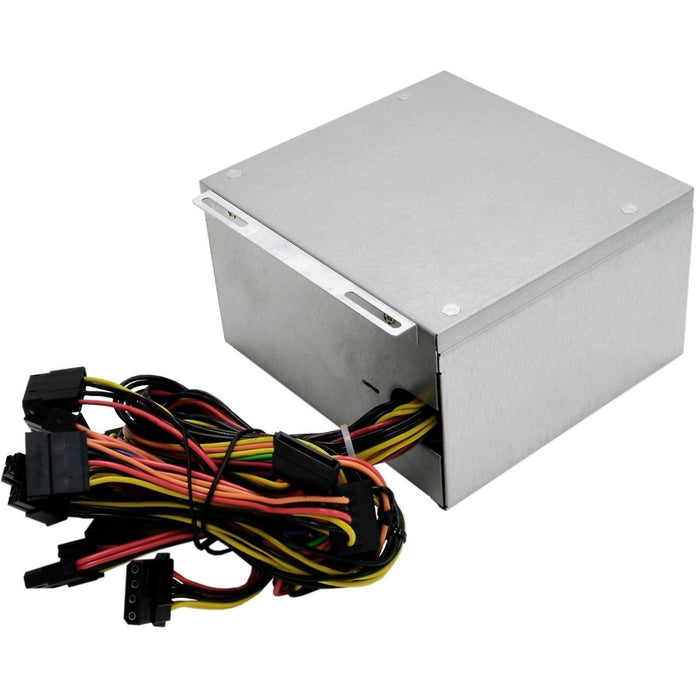

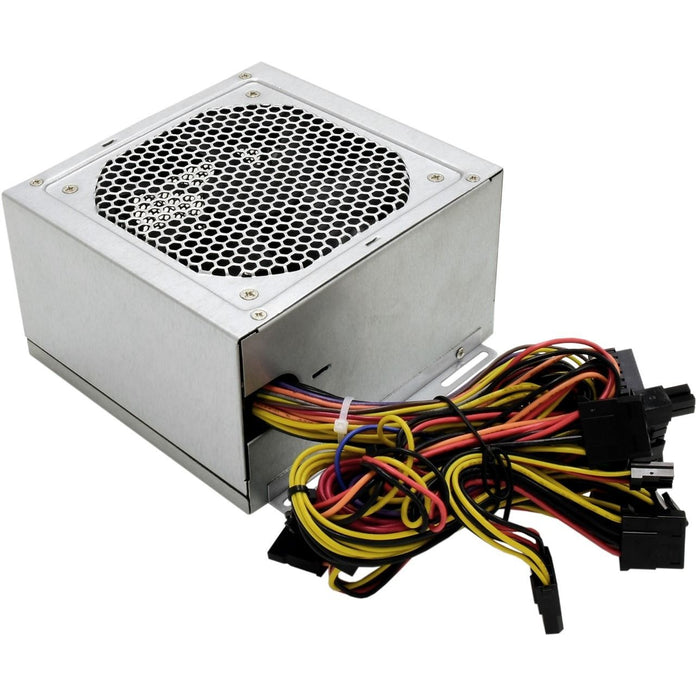

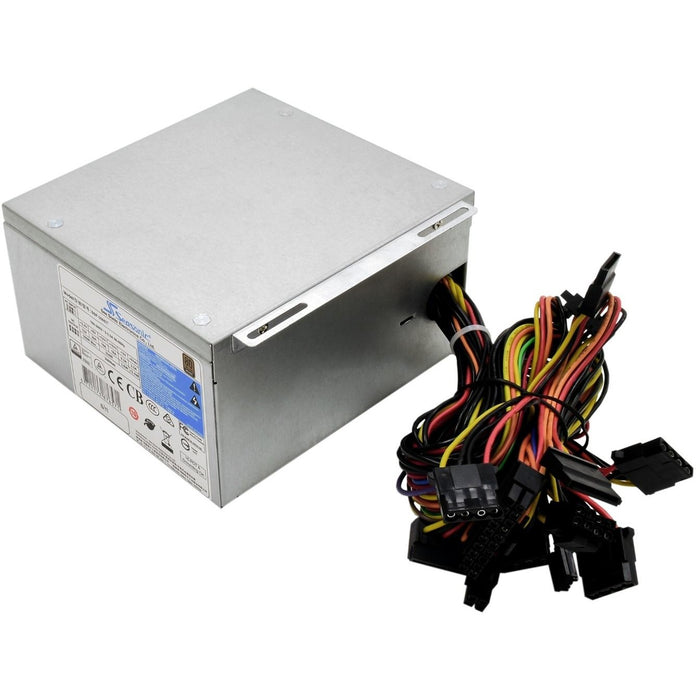

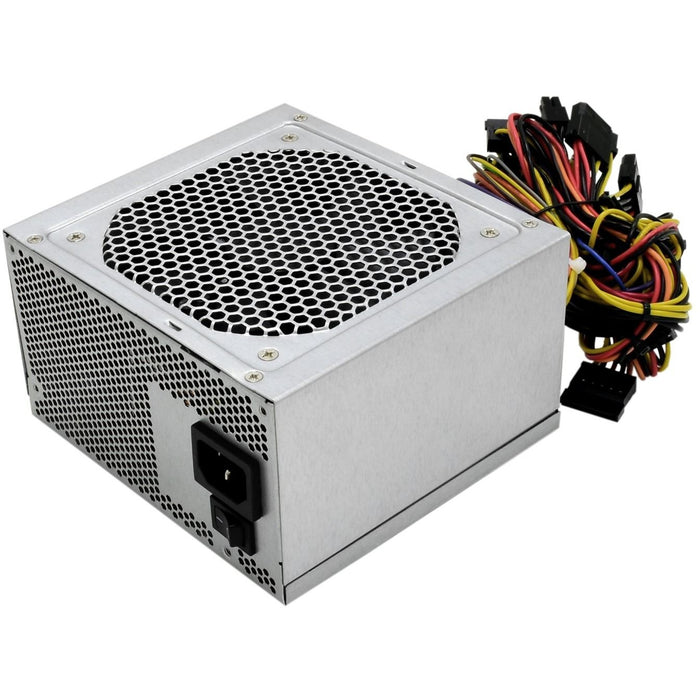

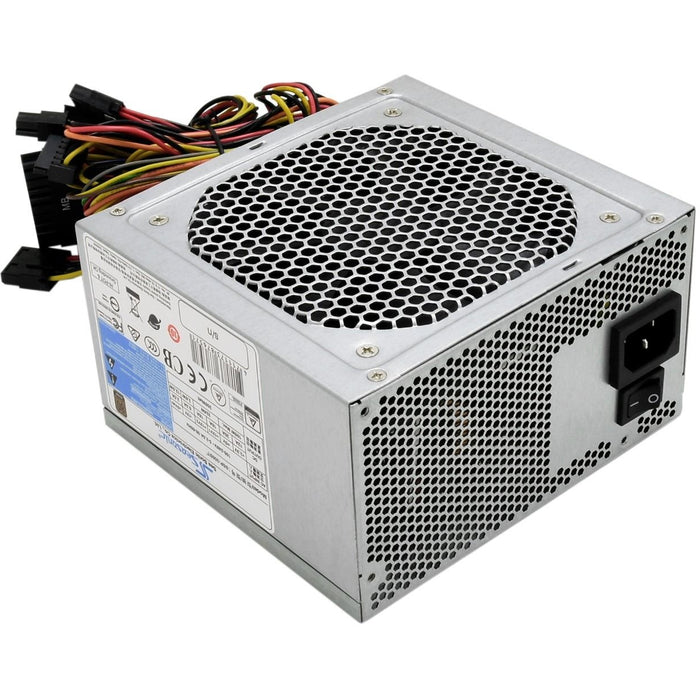

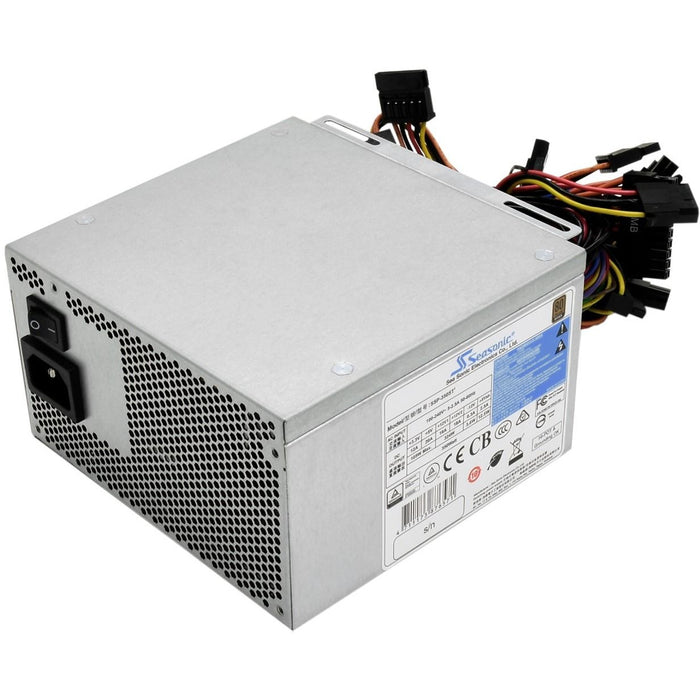

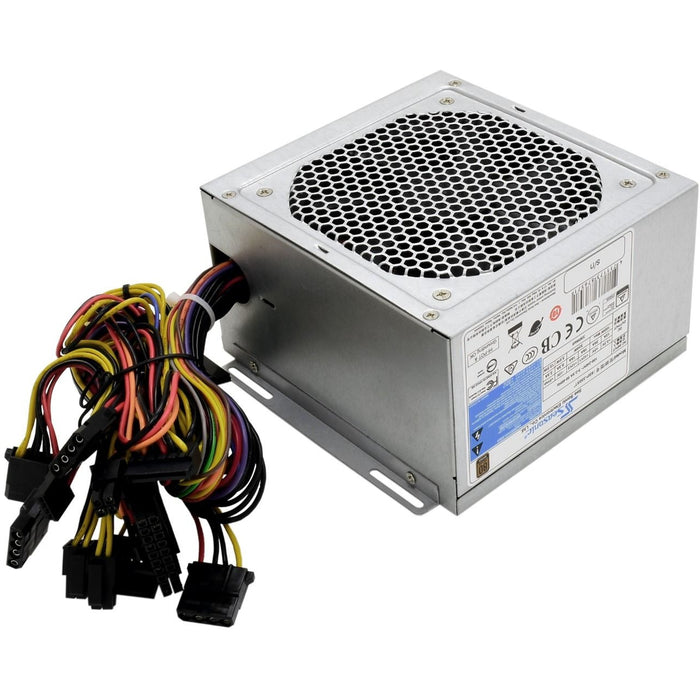

This ATX form factor industrial power supply is version 12 V v.2.3 compliant and 80 PLUS Bronze rated. Super low noise fan control and vital protection features are some of its advanced features. This power supply has full AC input. Its efficiency rating saves power and its stability extends the life of the components attached. It is a reliable power source for a wide range of systems that require an ATX form factor build. The newly released ET2 complies fully to the new safety standard of IEC 62368-1.
Power
Total power: 400 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 360 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 18 A
Max output current (+12V2): 18 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over power, Over voltage, Short circuit
Ports & interfaces
Feature: Floppy disk drive connector
Cabling type: Non-Modular
Performance
80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Mean time between failures (MTBF): 100000 h
Design
Product colour: Grey
Cooling type: Active
Number of fans: 1 fan(s)
Fan location: Top
Certificates
Certification: CE, FCC, RCMIEC 62368-1
Safety regulation & standards
Safety: cTUVus, TUV, CB, CCC, BSMI
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm

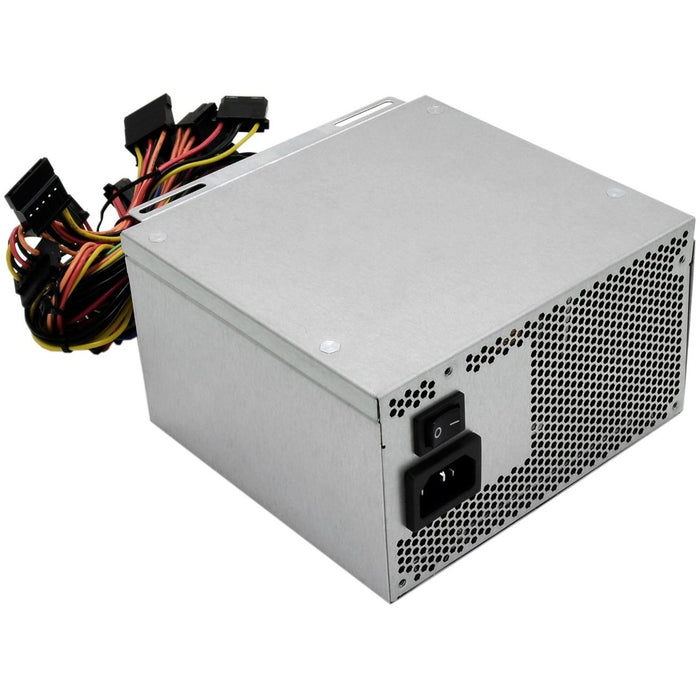

Seasonic SSP-400ET2. Total power: 400 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Number of fans: 1 fan(s). Certification: CE, FCC, RCM IEC 62368-1
Sea Sonic
MBR CODE - SSP-400ES2
EAN - 4711173876588
