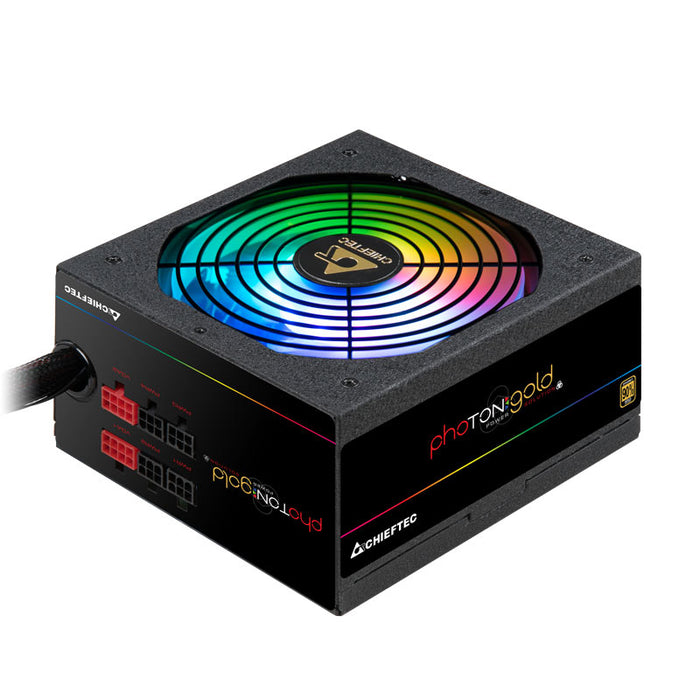

Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
Total power | 750 W |
AC input voltage | 200 - 240 V |
AC input frequency | 47 - 63 Hz |
Input current | 5 A |
Combined power (+3.3V) | 120 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 22 A |
Max output current (+12V1) | 62 A |
Max output current (+5V) | 22 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
Efficiency | 90% |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 8 |
SATA power cable length | 150,550 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
Peripheral (Molex) power cable length | 150,550 mm |
PCI Express power connectors (6+2 pin) | 4 |
PCI Express power cable length | 55 cm |
CPU power connector (4+4 pin) | Yes |
CPU power cable length | 55 cm |
Floppy drive power connector | 1 |
Floppy disk drive connector | Yes |
Cabling type | Semi-Modular |
Supported motherboard form factors | ATX |
Purpose | PC |
Power supply unit (PSU) form factor | PS/2 |
Product colour | Black |
Cooling type | Active |
Number of fans | 1 fan(s) |
Fan location | Top |
Illumination | Yes |
Width | 150 mm |
Depth | 160 mm |
Height | 87 mm |
Weight | 2.3 kg |
Harmonized System (HS) code | 84733020 |
Illumination colour | Blue, Green, Red |
